HOFFORK 920-4 square truss with fork attachment

HOFFORK 620-4

HOF supplies truss material in the most common sizes. These include truss with one-, two-, three-, four- or five-point attachment. The HOFKON series is HOF's own format, which features tapered connections. There is also HOFPRO, a series compatible with equipment from Prolyte, HOFBOLT which is mounted with bolted connections and HOFFORK with forked connections.

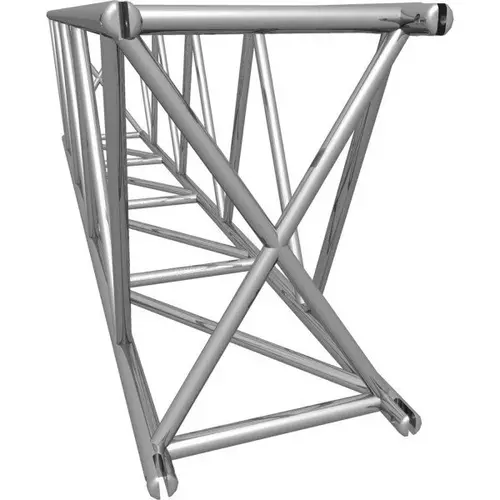

Trusses in various lengths

HOFFORK 920-4 aluminium truss has a tube diameter of 60mm with a material thickness of 5mm and 4-way corner pieces. The width of the truss is 610 x 920mm (outer dimensions). The truss is available in lengths of 1,500, 2,000, 2,260, 2,500, 3,000, 4,000 and 4,500mm.

High load capacity

HOFFORK 920-4 is designed for larger projects with heavier loads. Ideally suited for: extensive pre-rigging, large stage roof structures, structures with large spans in combination with high loads and the production of large events.

TECHNICAL DATA:

• Truss measure: 610 x 920 mm
• Tube: 60 x 5mm
• Bracing: 40 x 3 mm
• Material: EN-AW 6082 T6
• DIN 13814 Fairground
