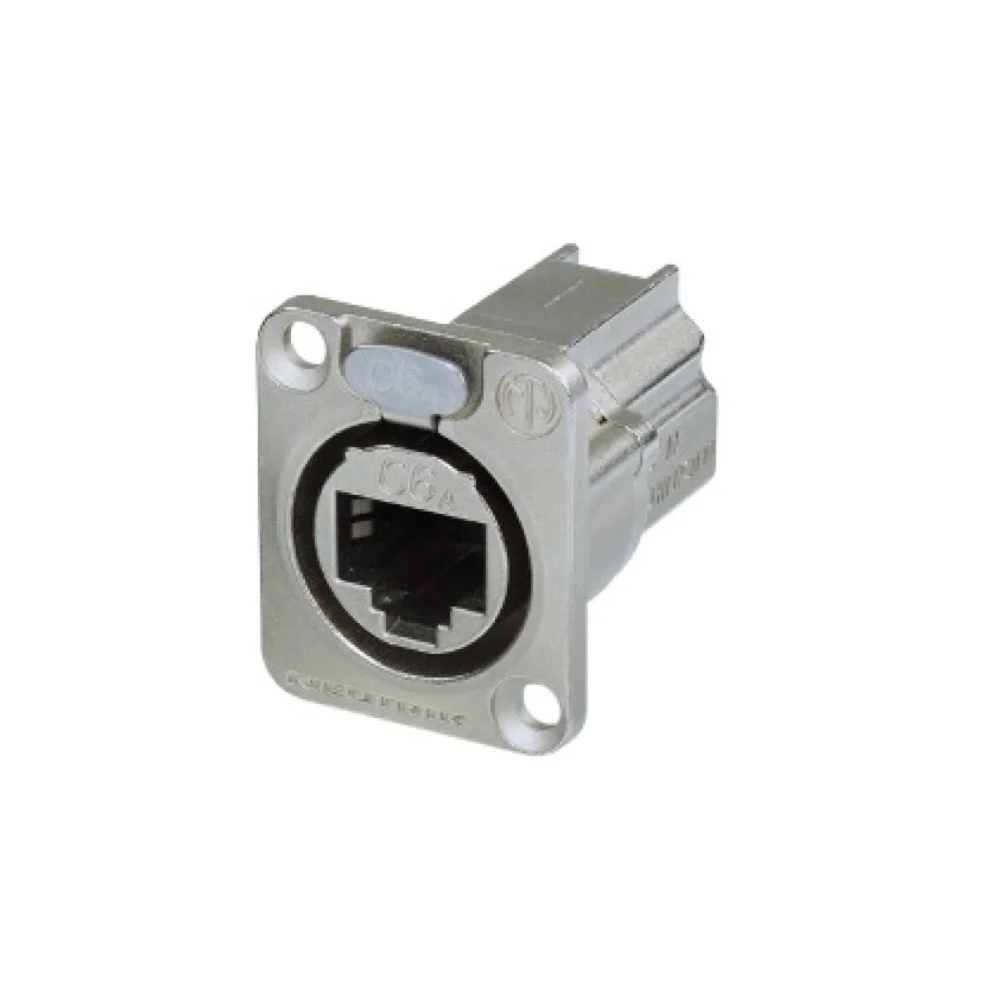

Neutrik NE8FDX-P6 EtherCON CAT6A D-shape RJ45 Connector - High-Quality Connections

Upgrade your connections with the Neutrik NE8FDX-P6 EtherCON CAT6A D-shape RJ45 connector. This D-shaped CAT6A panel connector offers shielding, feed-through and a nickel housing for reliable performance.

Features:

• D-shaped CAT6A panel connector with shielding.
• Reliable feedthrough for high-quality connections.
• Suitable for CAT6A performance according to TIA/EIA and IEC/ISO/EN standards.
• Suitable for Power over Ethernet (PoE++) according to IEEE 802.3bt.
• Latch lock locking mechanism for secure connection.
• Front-mounting for easy installation.

Please note that this connector is not compatible with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Technical Information:

• Product Title: NE8FDX-P6
• Gender: Female

Electrical:

• Dielectric Strength: 1 kVdc
• Insulation Resistance: > 0.5 GΩ
• Rated Current Per Contact: 1.5 A
• Transmission Performance: CAT6A, according to TIA/EIA rating and Class EA, according to IEC/ISO/EN rating
• Power Over Ethernet: PoE++ according to IEEE 802.3bt

Mechanical:

• Lifetime: > 1000 mating cycles
• Wiresize: Wiring is feedthrough
• Locking Device: Latch lock
• Mounting Direction: Front mounting

Material:

• Contact Plating: Au (Gold)
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Nickel

Environmental:

• Flammability: UL 94 V-0
• Temperature Range: -40 °C to +70 °C

The NE8FDX-P6 EtherCON CAT6A D-shape RJ45 connector provides reliable connections for professional applications. Order today for high-quality performance and durable connectivity.
