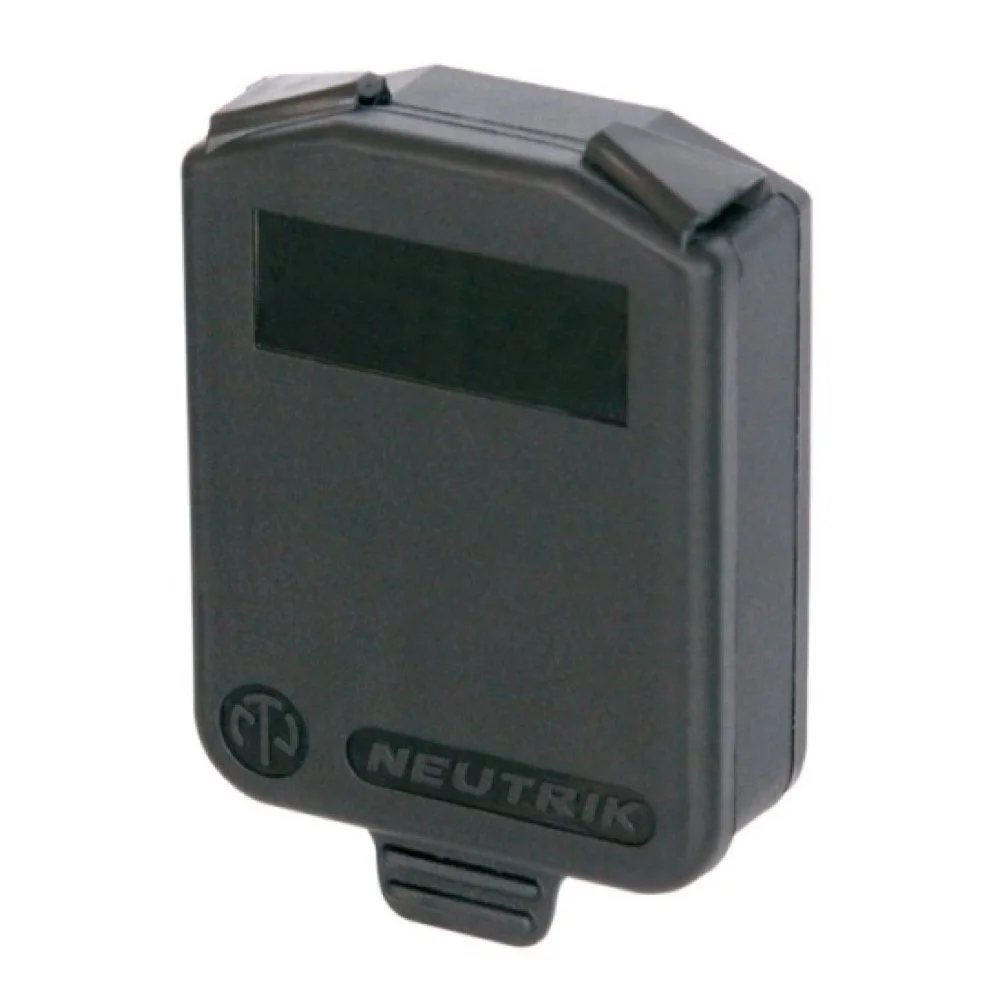

Neutrik | SCDX | cover cap D-housing IP42 black

Neutrik | SCDX | cover cap D-housing IP42 black

Product description:

This hinged cover cap seals D-size chassis connectors against water, dust and dirt when not connected according to IP42. It is available in different colours.

SCDX - black (if used with opticalCON, black indicates multi-mode) SCDX-5 - green (if used with opticalCON, green indicates single-mode APC) SCDX-6 - blue (if used with opticalCON, blue indicates single-mode PC) SCDX-9 - white (e.g. wall socket)

Suitable for:

• XLR D Series female
• XLR D Series male
• 1/4" Jacks D Series
• speakON NL2M* and NL4M*
• powerCON 20 A Series NAC3MPA* and NAC3MPB*
• powerCON TRUE1 NAC3MPX
• USB NAUSB-W*
• HDMI NAHDMI-W*
• D-SUB NADB*
• Firewire NA1394-6-W*
• etherCON A&B Series
• etherCON D Series
• etherCON CAT6 Chassis Connectors
• BNC D Series
• Phono (RCA) Chassis Connectors

Product Information:

• Title: SCDX

Mechanical Information:

• Wiresize: Not specified

Material Information:

• Sealing Cover: PP-R

Environmental Information:

• Flammability: UL 94 HB
• Temperature Range: -30°C to +80°C
