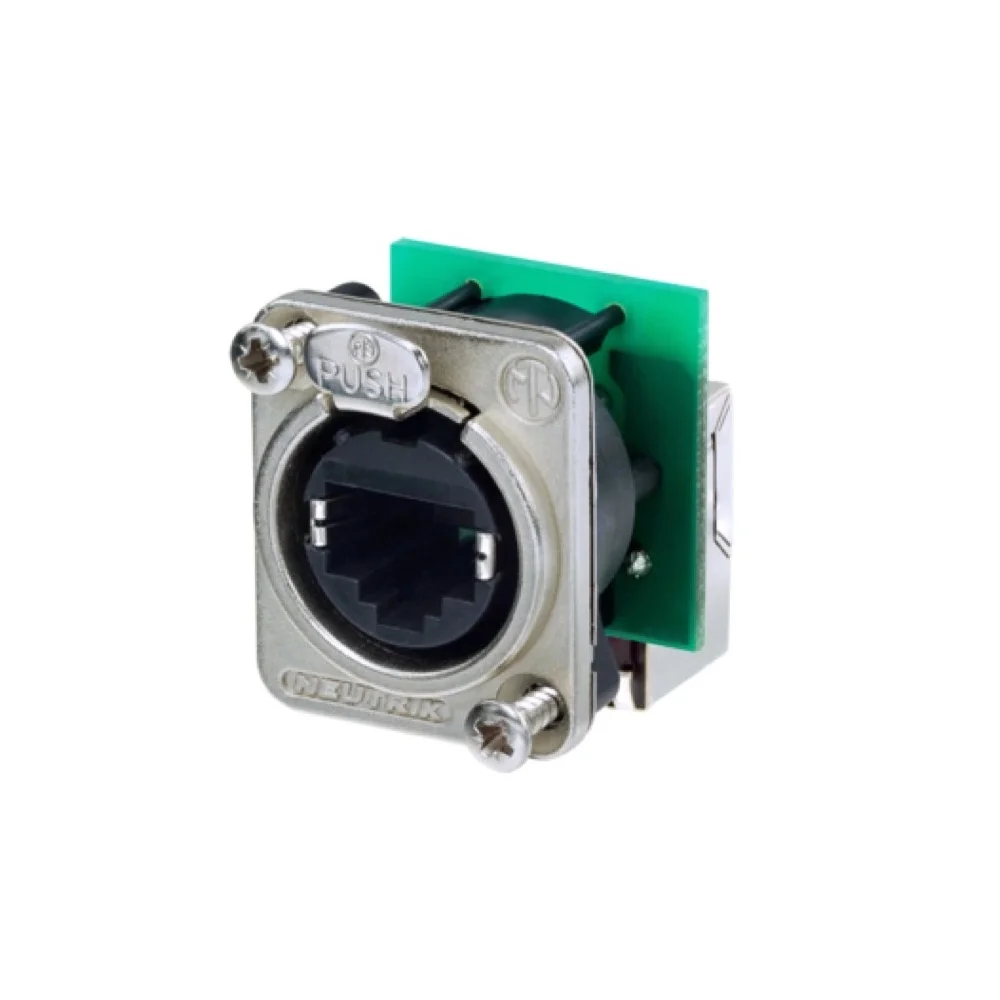

Neutrik NE8FDP-R Angled etherCON Chassis-D RJ45 Connector

The Neutrik NE8FDP-R is an angled RJ45 conduit connector for professional audio and video networks. With robust construction and lockable design, this connector is optimised for demanding applications in the entertainment industry.

Key features:

• Angled RJ45 transit socket with D-shaped metal flange and locking mechanism.
• Suitable for panel mounting and installation market.
• Compatible with standard panels.
• Note: Not compatible with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Technical Information:

• Product Title: NE8FDP-R
• Gender: Female

Electrical:

• Contact Resistance: < 50 mΩ
• Dielectric Strength: 1 kVdc
• Frequency Range: 1 - 100 MHz
• Insulation Resistance: > 0.5 GΩ
• Rated Current Per Contact: 1.5 A
• Rated Voltage: < 50 V
• Transmission Performance: CAT 5e
• Standard Compliance: TIA/EIA 586B, IEC 11801

Mechanical:

• Insertion Force: ≤ 20 N
• Withdrawal Force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel Thickness: Max. 4 mm (0.16")
• Wiring: Feedthrough
• Locking Device: Latch Lock
• Chassis Shape: D

Material:

• Contact Plating: 0.2 µm Gold (Au) over Nickel (Ni) plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc Diecast (ZnAl4Cu1)
• Shell Plating: Nickel

Environmental:

• Flammability: UL 94 V-0
• Temperature Range: -30 °C to +80 °C

Enhance your network connections with the Neutrik NE8FDP-R right-angle etherCON Chassis-D RJ45 connector. Ideal for applications where durability and reliability are essential.
