SRS Rigging | MCPH-LV | Yellowbox Hoist control 1- or 2-channel | Type of control: Low Voltage | Cable length: 2m | Input: 1x CEE16A-5p
The hoist control yellowbox - LV from SRS Rigging is designed to meet cost-effective hoist control with high quality and all basic functions. Read more
SRS Rigging Hoist control yellowbox - LV

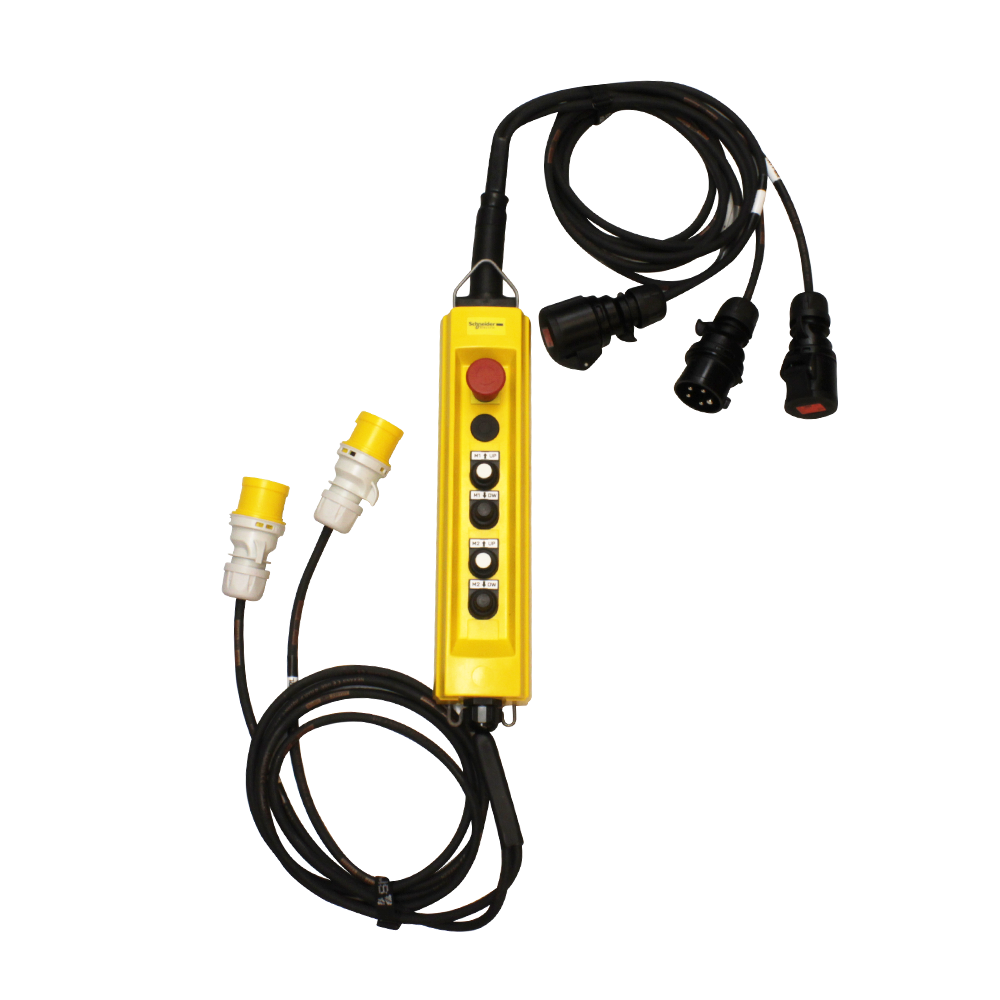

The hoist control yellowbox from SRS Rigging is designed to meet cost-effective hoist control with high quality and all basic functions. The hoist control is made in a yellowbox with 2 buttons and an emergency stop. You can connect the hoist and power directly to the yellowbox - LV.
Specifications Hoist control yellowbox - LV:
- Separate up and down buttons per channel
- Emergency stop
- Manual phase alignment in the input plug
- Input connector: 1x CEE16A/5p
- Output connector: CEE16A/4p or Harting/6p
- Suitable for e.g. BGV D8 and BGV D8+ hoists
Available in the variants:
- Low Voltage (LV)
- 1-channel
- 2-channel
The hoist controller can be used with a.o:
- CM Lodestar
- Trabes
- Prolyft
- Verlinde/Stage Maker
- Hitachi
The hoist control yellowbox - LV can be directly connected to all suitable type Direct Voltage hoists.
Type of control | LV |
Number of channels | 1 or 2-channel |
Power supply | VAC |
Power connector in | CEE5P 16A |
Power connector uit | |
Rated current | A |
Length | m |
Height | |
Width | mm |
Weight | 0.7kg |
