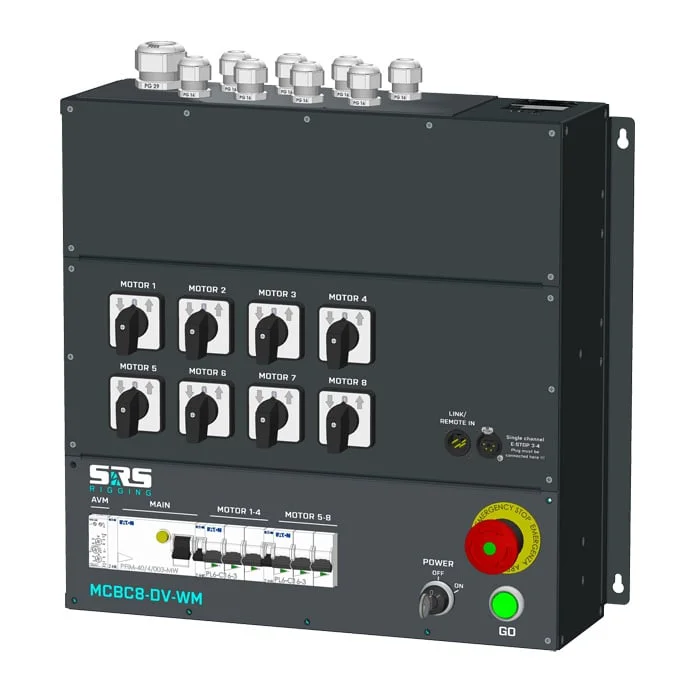

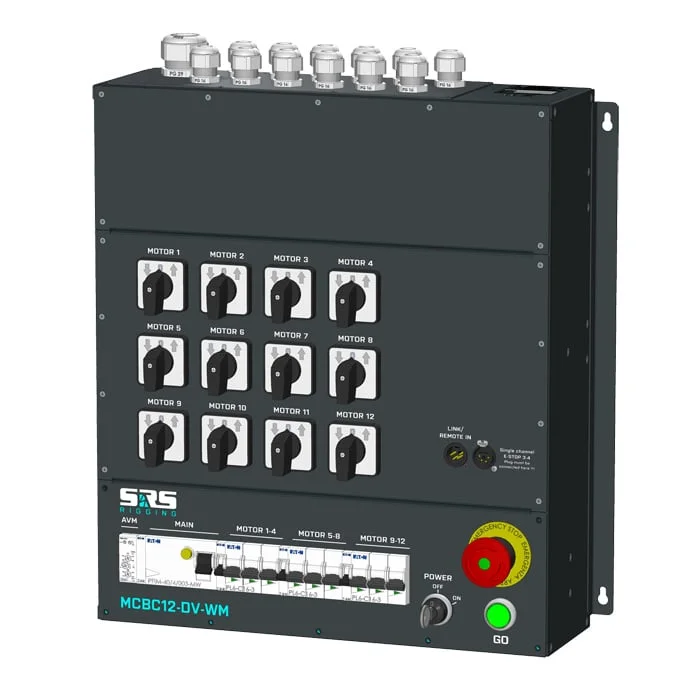

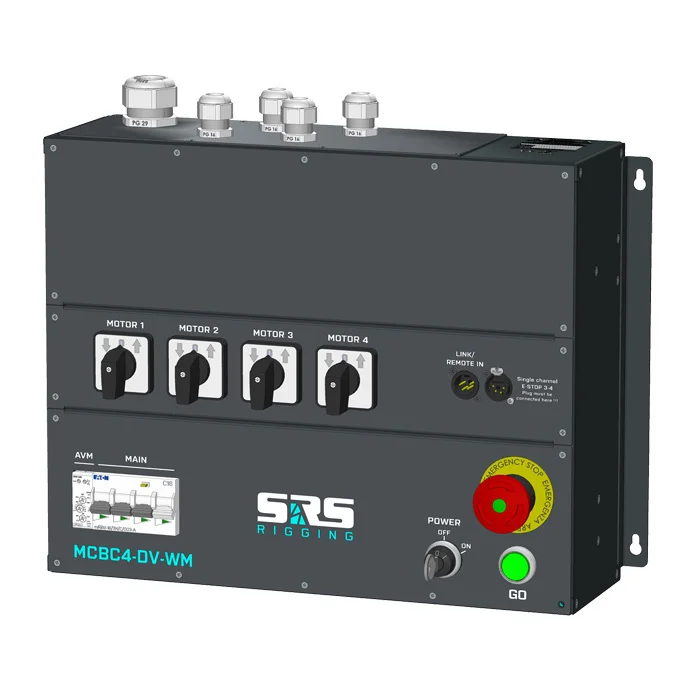

SRS Rigging Hoist Control Wall Mount - DV

The Hoist Control Wall Mount - DV by SRS Rigging is designed to meet a cost-effective hoist control with high quality and all basic functions. The Hoist Control is designed in wall mounted box with controls for 4, 8, 12 or 24 hoists. The hoist controller has a link function for GO button and Emergency Stop and is equipped with 123/132 phase alignment signalling and manual phase alignment in the input plug.

Specifications Hoist control wall-mounted - DV:

- Suitable for 4, 8, 16 or 24 Direct Voltage (DV) hoists
- GO button
- Emergency stop
- Link connection for GO/Needstop remote control
- Phase alignment 123/132 indication
- MCB16A and RCD 30mA protection on the outputs
- Input: CEE32/5p (on request)
- Output: Screw terminal or CEE16/4p on request)

Available in the following variants as standard:

- Output: Wago (uncabled)
- Output: Harting16 (for 8, 16 and 24 channels on request)

The hoist controller can be used with a.o:

- Chainmaster/Movecat/Liftket/Tourrig
- CM lodestar
- LITEC/EXE
- Trabes
- Prolyft
- Verlinde/Stagemaker
- Hitachi

The SRS Rigging Wall-mounted hoist control can be used in combination with the Hoist Control Remote.
