SRS Rigging | AHD8-WLV | AHD Wireless hoist control 8-channel | Type of control: Low Voltage | Input: 1x CEE63A-5p or CEE32A-5p

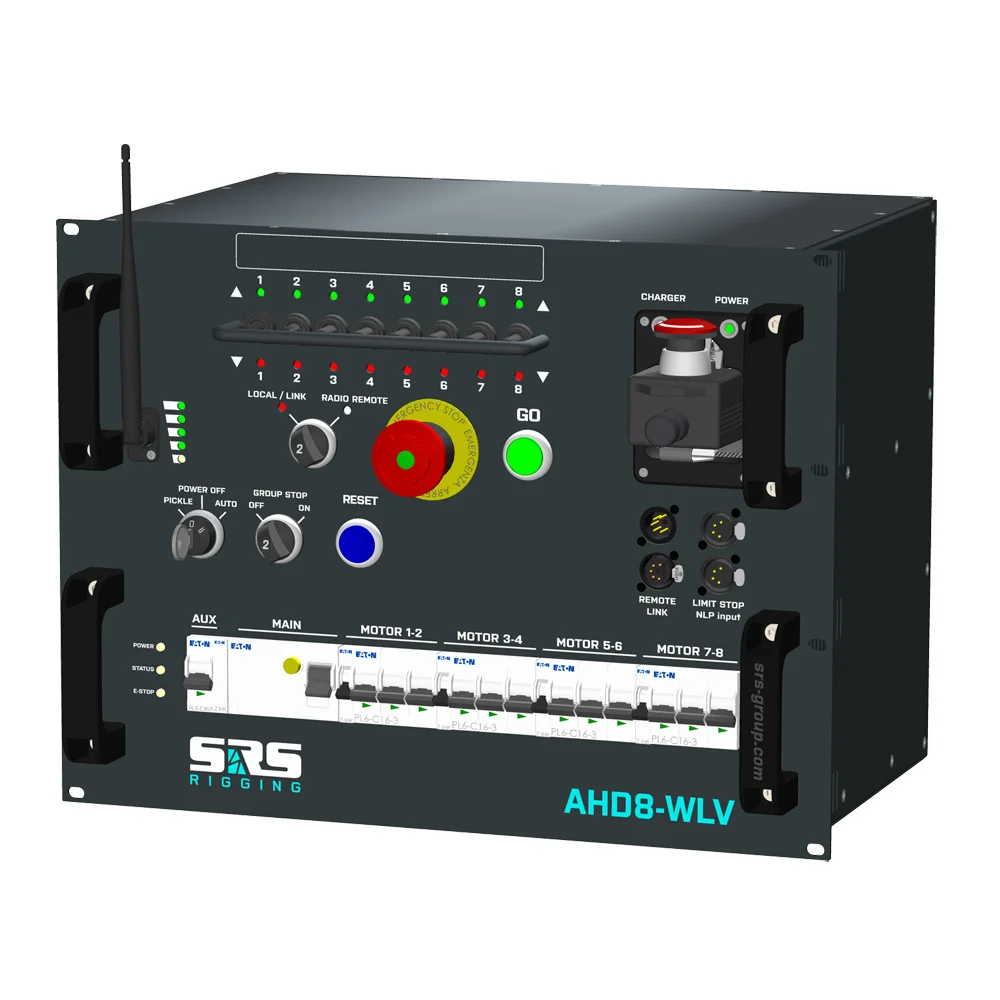

Hoist control 8-channel AHD - WLV - Wireless remote

This hoist controller has a built-in wireless remote control.

The AHD - WLV 8-channel Advanced Digital Hoist Control is designed to control up to 8 motor hoists separately or simultaneously from each other. Optionally, the hoist control can be operated with a CMC-DIGI-AHD digital cable remote control.

The device is equipped with a unique Automatic Phase Align (APA) module, which guarantees that the motors move in the same direction on any alignment of the input phases. If a phase is disconnected, the hoist control stops to ensure a safe situation.

One of the features of AHD-DV is the AVM module (Automatic Voltage Metering). This module monitors mains voltage at AC 400V + -20% in star configuration and protects the hoists in case of mains voltage problems.

The hoist controller will not release control if:

- A phase is missing
- There is undervoltage on the installation
- There is overvoltage on the installation

All electrical components have their own individual CE marking and comply with European directives.

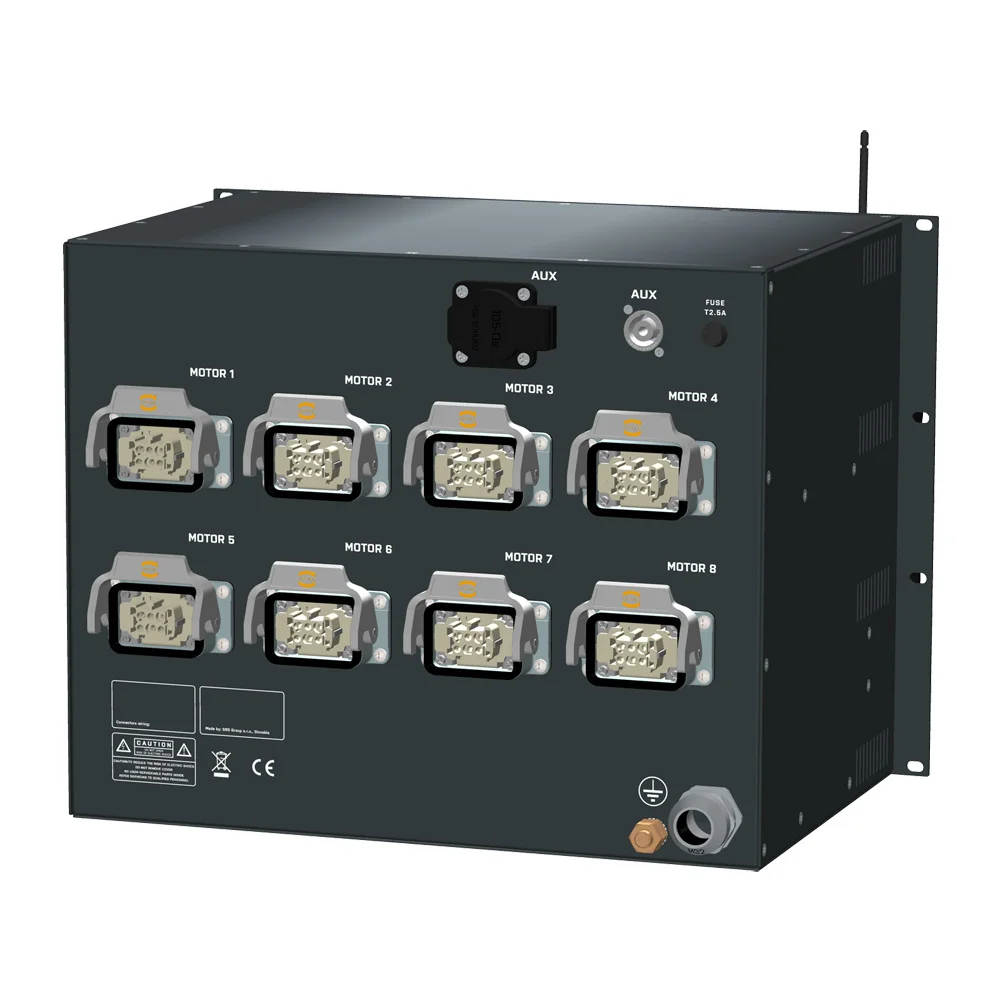

The hoist control sits in a robust steel 19" rack and is powder-coated. The enclosure also has a CE mark and corresponding declaration of conformity.

The AHD-WLV has an additional key switch for the group stop function. When active, switching off the circuit breaker of one hoist will cause an emergency stop on all connected hoists.

Features:

- APA - Automatic Phase Alignment
- AVM - Automatic voltage measurement
- GCT - Group channel control via CMG remote
- RRST - Remote Reset function

Specifications hoist control 8-channel AHD - WLV - Wireless remote:

- Can control up to 384 hoists via AHD link
- GFI/RCD 30mA protected outputs
- UP/DOWN selector switches
- Automatic voltage measurement
- Automatic phase alignment
- Digital remote with all functions
- Emergency stop circuit according to: IEC60204, SIL3
- Suitable for hoist types: BGV D8, BGV D8+

Available in the variants:

- Harting/16p
- Hating/6p

For use with:

- Chainmaster/Movecat/Liftket/Tourrig
- CM lodestar
- LITEC/EXE
- Trabes
- Prolyft
- Verlinde/Stagemaker
- Hitachi
