SRS Lighting | Wall-mount Switchpack 12-channel | DMX 3+5pin | Excluding backplate
Description

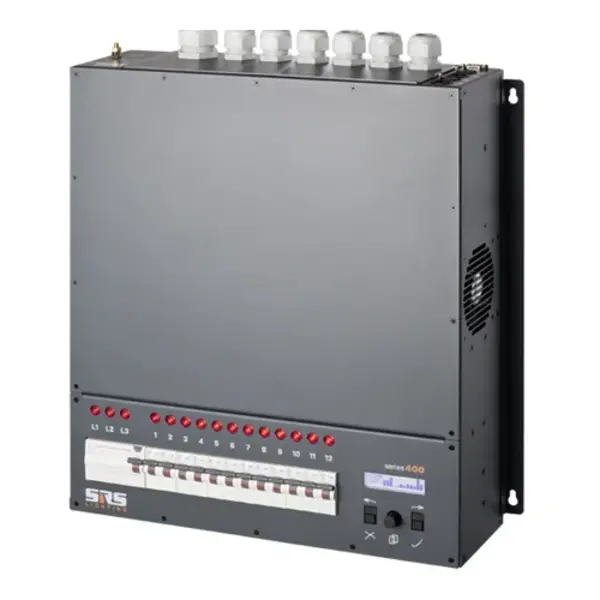

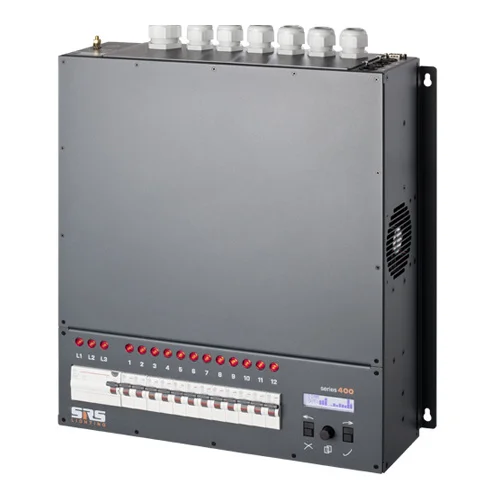

Switchpack 12-channel wall-mount
The switchpack 12-channel wall-mount is easy to hang up anywhere. Always handy for switching devices that should not be dimmed. These switchpacks have no minimum load. All switchpacks from SRS Light come with a minimum 2-year warranty! Also available as a 12-channel 19-inch version. The 19-inch switchpacks can also be used as audio power distributors with adjustable switch-on delay per channel! Controllable manually and analogue (0/5/10V) from e.g. the IO port of a DSP or via DMX. You can order this dimmer separately with connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate. Specifications:
- available in 10A, 13A or 16A version
- 30mA earth leakage or main switch on fixed voltage
- 1P or 1P Null circuit breakers
- both with 3-pin DMX and 5-pin
- both DMX and analogue can be used simultaneously
- analogue input
- scene call input
- software patch
- wall mounting
- available with the following connection: Schuko Socapex Harting
- weight 28 kg
- dimensions HxWxD 490x481x132 mm
- 5-year warranty!
