SRS Lighting | Switchpack 6-channel | 19-inch | Power: 25A | DMX 3+5pin | Excluding backplate

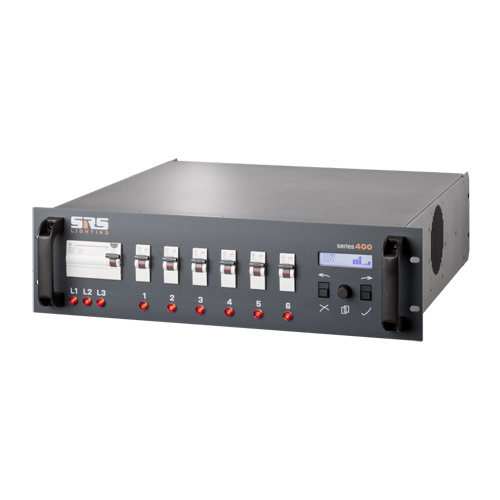

Switchpack 6-channel

The 6-channel switchpack is always handy for switching devices that should not be dimmed. These switchpacks have no minimum load.
All switchpacks from SRS Light come with a minimum 2-year warranty!

A 6-channel wall-mounted version also available!

The 19-inch switchpacks can also be used as audio power distributors with adjustable switch-on delay per channel! Controllable manually and anologously(0/5/10V) from e.g. the IO port of a DSP or via DMX.

You can order this dimmer separately with connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate.

Specifications:

• available in 25A version

• 30mA earth leakage or main switch on fixed voltage

• 1P or 1P Null circuit breakers

• both with 3-pin DMX and 5-pin

• both DMX and analogue can be used simultaneously.

• analogue input

• scene call input

• software patch

• wall mount

• available with the following connection:
  Schuko
  Socapex
  Harting

• weight 28 kg

• dimensions HxWxD 483x132x460 mm

• 5-year warranty!
