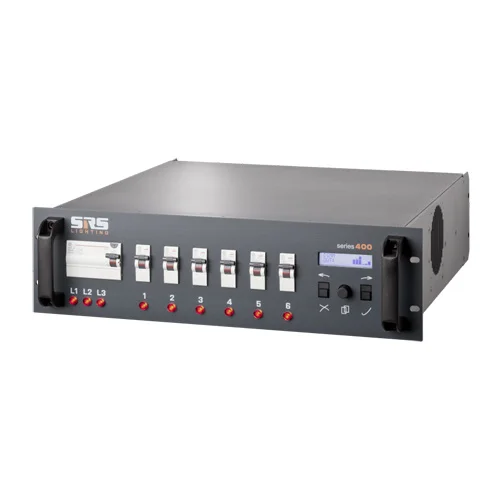

SRS Lighting | Switchpack 6-channel | 19-inch | DMX 3+5pin | Excluding backplate

SRS Lighting | Switchpack 6-channel | 19-inch | DMX 3+5pin | Excluding backplate

The 6-channel switchpack is always handy for switching devices that should not be dimmed. These switchpacks have no minimum load.

A 6-channel wall-mount version also available!

The 19-inch switchpacks can also be used as audio power dividers with adjustable switch-on delay per channel! Controllable manually and anologously(0/5/10V) from e.g. the IO port of a DSP or via DMX.

You can order this dimmer separately with connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate.

Technical specifications:

• available in 10,13,16 and 25A versions
• 30mA earth leakage or main switch on fixed voltage
• 1P or 1P Null circuit breakers
• both with 3-pin DMX and 5-pin
• both DMX and analogue can be used simultaneously.
• analogue input
• scene call input
• software patch
• wall mount
• available with the following connection:
  Schuko
  Socapex
  Harting
• weight 28 kg
• dimensions HxWxD 483x132x460 mm
• 5-year warranty!
