Description

SRS-Lighting Dimmer 12-channel NDP

The SRS-Lighting Dimmer 12-channel NDP is one of SRS Light's most comprehensive dimmers and one of the most advanced dimmers available.

Dimmer 12-channel NDP

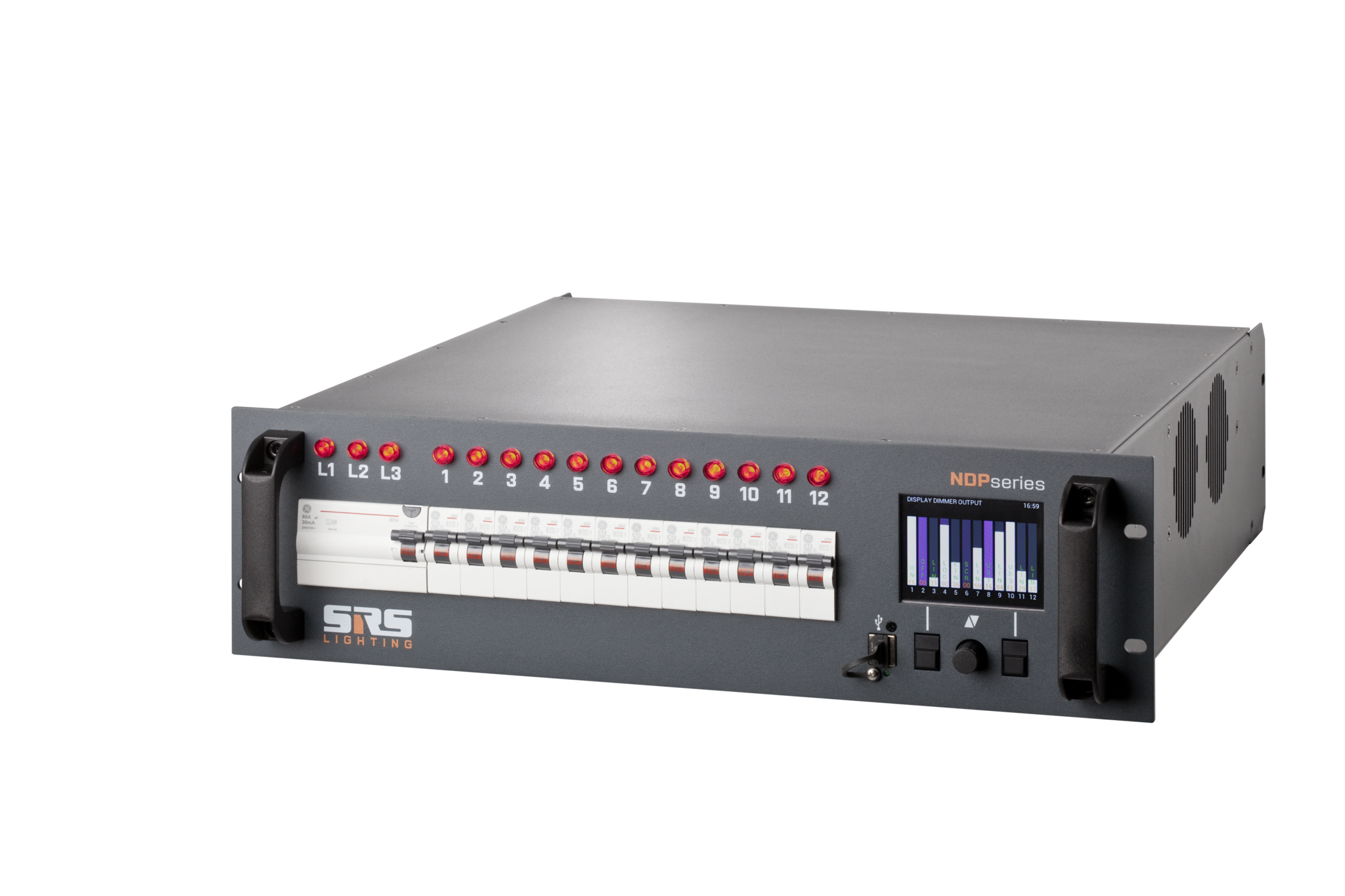

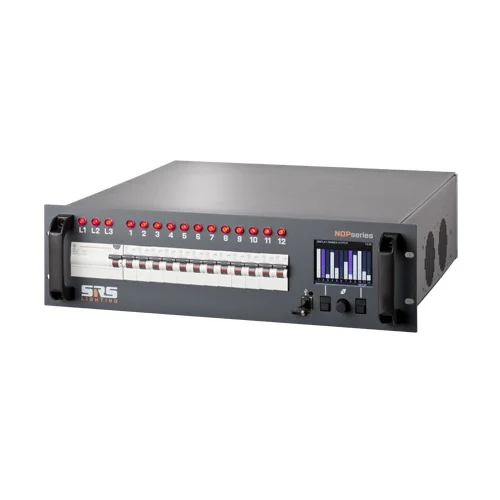

The Dimmer 12-channel NDP is one of SRS Light's most comprehensive dimmers and one of the most advanced dimmers available. The NDP network dimmer has a clear TFT display and can be read remotely with the free Ultisense software included. With the Ultisense software, you can use the connected Ethernet, ArtNet or sACN network to remotely read out but also set the dimmers. The NDP dimmer can be controlled (LTP or HTP) with ArtNet and sACN, but also simply with a DMX-A and/or a DMX B line. By default, the NDP is equipped with 3 custom curves. This allows you to set a custom dimmer curve per dimmer channel. This is useful, for instance, if you want to dim LED lamps. The NDP is able to perfectly dim 230V retrofit LED sources from 0-100%. The NDP dimmer is prepared for the advent of LED lighting in theatres. In fact, you can choose from two additional options.

The options of the NDP Dimmers:

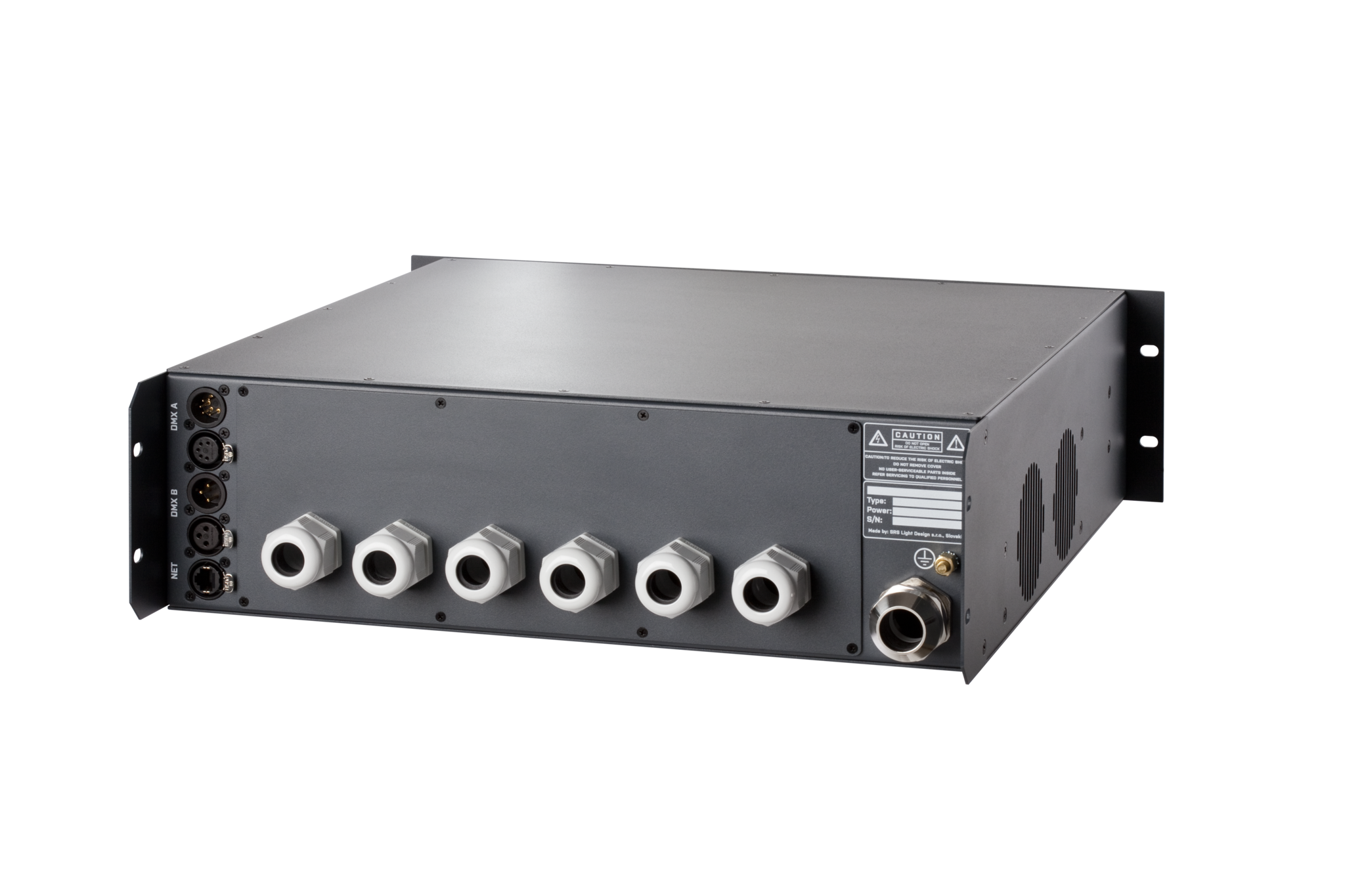

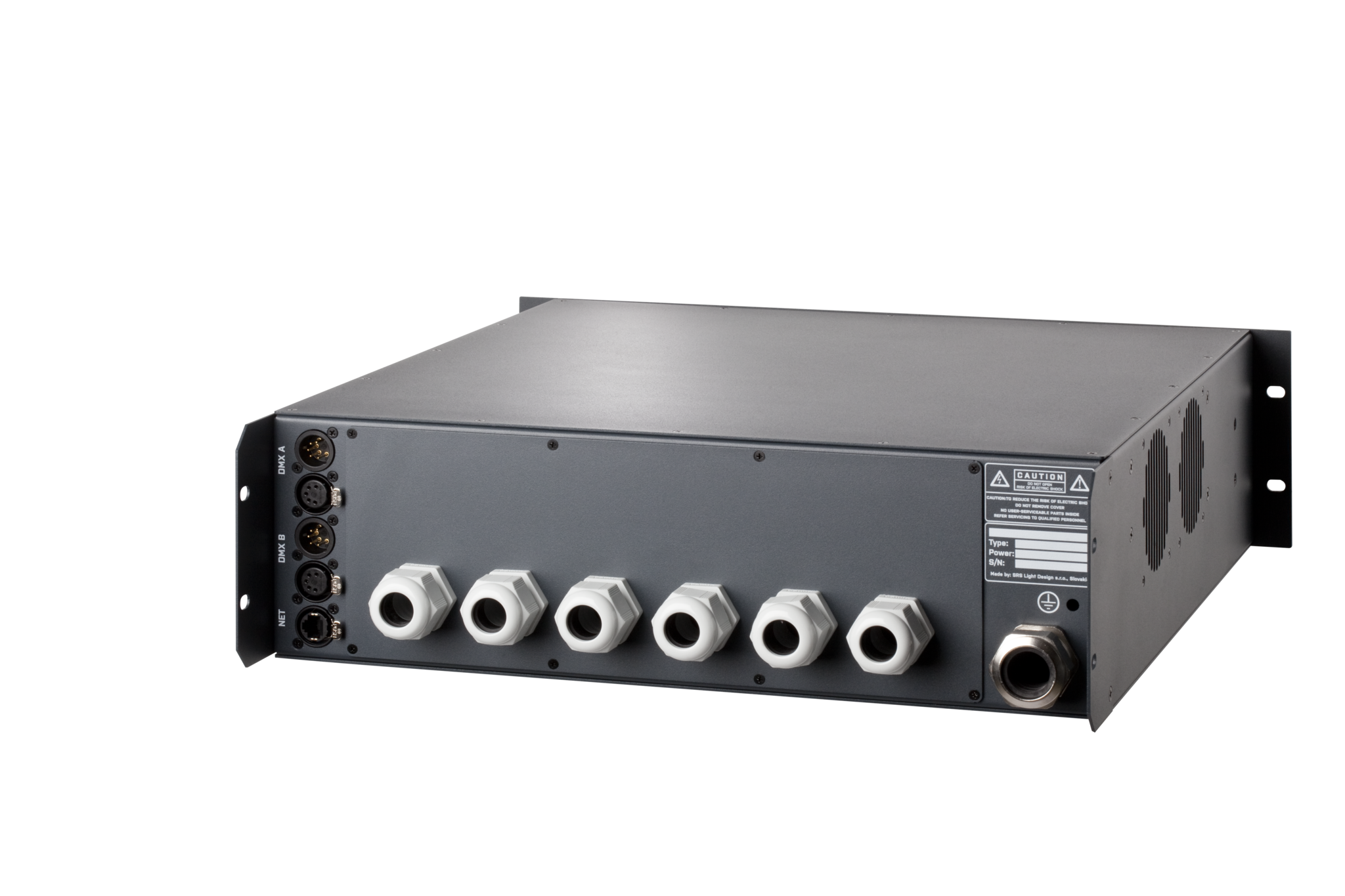

With the first option (switch), the outputs of the dimmer can be supplied with fixed voltage separately from each other by means of built-in relays. This can be set on the TFT display on the dimmer or with the Ultisense Software. The outputs of the dimmer can then be used as a DMX switched power supply by selecting switch mode or as a continuous power supply for LED or moving fixtures, for example. The second option is the Zeroload option. With this, no minimum load is required. This makes it possible to dim lamps or other low-power sources without adding an extra ballast. You can order this dimmer separately with connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate. It is also possible to equip the dimmer with a connector plate. This can be ordered separately. Would you like a dimmer installation (installation or tour version) according to your specifications? That is of course possible! For this, it is useful to let us know your exact requirements. Call us or send an email and we will get back to you ASAP.
