SRS Lighting | NDP1210-RCK2 | Installation dimmer 12-channel NDP | 19-inch | Circuit breakers: Single-pole | Power: 10A | Main: Ground fault circuit breaker | DMX 5pin | Excluding slide

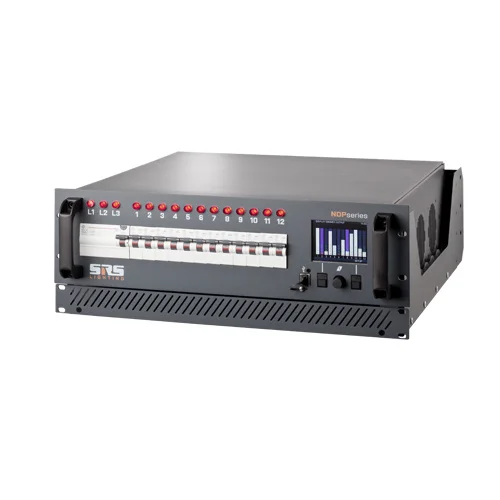

Installation dimmer 12-channel NDP

The dimmer-NDP 12-channel is one of SRS Light's most comprehensive dimmers and one of the most advanced dimmers available. The NDP network dimmer has a clear TFT display and can be read remotely with the Ultisense software, which is included free of charge. With the Ultisense software, you can use the connected Ethernet, ArtNet or sACN network to remotely read out but also set the dimmers. The NDP dimmer can be controlled (LTP or HTP) with ArtNet and sACN, but also simply with a DMX-A and/or a DMX B line. By default, the NDP is equipped with 3 custom curves. This allows you to set a custom dimmer curve per dimmer channel. This is useful, for instance, if you want to dim LED lamps. The NDP is able to perfectly dim 230V retrofit LED sources from 0-100%. The NDP dimmer is prepared for the advent of LED lighting in theatres. In fact, you can choose from two additional options.

The options of the NDP Dimmers:

With the first option (switch), the outputs of the dimmer can be supplied with fixed voltage separately from each other by means of built-in relays. This can be set on the TFT display on the dimmer or with the Ultisense Software. The outputs of the dimmer are then usable as a DMX switched power supply by selecting switch mode or as a continuous power supply for LED or moving fixtures, for example. The second option is the Zeroload option. With this, no minimum load is required. This makes it possible to dim lamps or other low-power sources without adding an extra ballast. You can order this dimmer separately with connection plate of your choice. As standard, SRS Light NDP and DDP dimmers are supplied with a gland plate. It is also possible to equip the dimmer with a connector plate. This can be ordered separately. Would you like a dimmer installation (installation or tour version) according to your specifications? That is of course possible! For this, it is useful to let us know your exact requirements. Call us or send an e-mail and we will contact you as soon as possible. Specifications

• Available in a 10A, 13A and 16A version.
• Control with ArtNet and/or DMX
• Readout via RDM/ArtNet/Ethernet via Ultisense software
• 2 DMX in- and outputs
• 30mA earth fault or main switch on fixed voltage.
•
• 1Pole or 1P Neutral circuit breakers
• Equipped with both 3-pin and 5-pin DMX connection

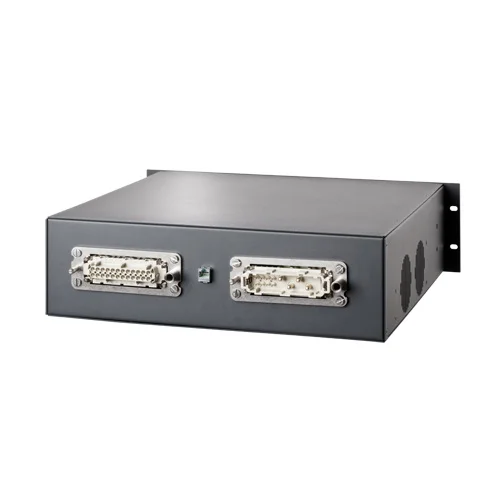

• Available with the following connection: Schuko Socapex Harting
• Weight 28 kg
• Dimensions LxHxD 483x132x460 mm.
• 5 year warranty!
