DMX splitter 4-channel

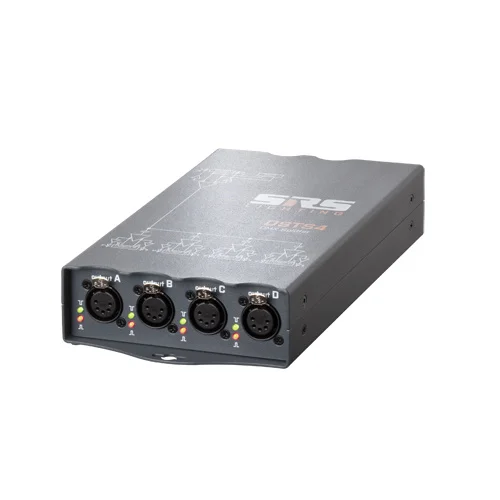

This SRS Lighting DMX splitter 4-channel has 4 DMX outputs and is very easy to mount to a truss or pull. SRS Lighting's DMX splitters are of very high quality.

3-pin, 5-pin or RJ45

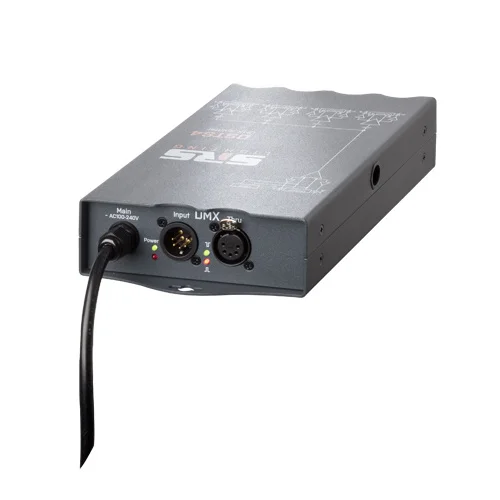

All DMX splitters from SRS Lighting can be equipped with DMX 3- and/or 5-pin XLR and/or RJ45. All DMX splitters have a DMX input and DMX-thru. The DMX outputs are optically/electrically isolated lines and are marked with numbers. Each DMX output has a separate power supply and line driver, and a clear indication of the signal by means of two LEDs per output. The DMX splitters have a switched-mode power supply, allowing the mains voltage to vary between 85V and 265V. The SRS splitter are available with 3- and 5-pole XLR DMX connection.

The specifications:

• 4-channel DMX splitter
• optically isolated outputs with 1000V isolation
• 2x LED indication for DMX line status per output
• mounting with two stripes or wall mounting
• safety cable attachment
• mains voltage, schucko 85-265V, 50/60Hz

There is a lifetime warranty on this DMX splitter 4-channel by SRS.
