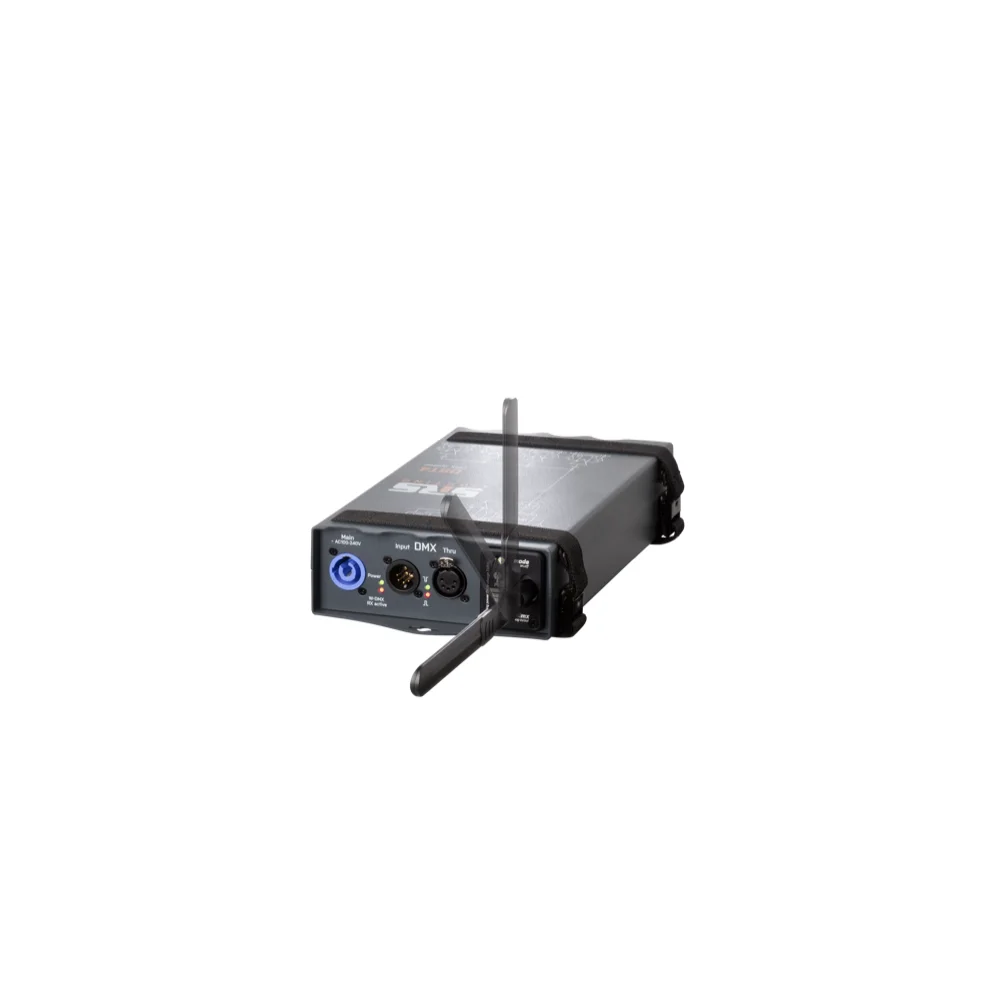

SRS Lighting | DST4WH-5-PRO | DMX splitter 4-channel with 4-channel power splitter and wireless DMX | DMX Input: 5-pin | DMX output: 5-pin | Protocol: LumenRadio | Type: Transmitter & Receiver
SRS Lighting DST4WH-5-PRO - A powerful DMX splitter with power divider and wireless DMX. This 4-channel unit with 5-pin DMX Input/Output and LumenRadio protocol serves as both transmitter and receiver. Read more
SRS Lighting | DST4WH-5-PRO | DMX splitter 4-channel with 4-channel power splitter and wireless DMX | DMX Input: 5-pin | DMX output: 5-pin | Protocol: LumenRadio | Type: Transmitter & Receiver
The DST4WH-5-PRO from SRS Lighting is a 4-channel wireless DMX splitter and power distributor that is an essential tool for professional lighting applications. With 5-pin DMX Input/Output and LumenRadio protocol, this device offers unmatched flexibility and performance.
Reliable DMX signal distribution
Each DMX output has LED indication of DMX status and is optically isolated to 1000V, ensuring reliable signal transmission. The unit also provides a true DMX output for easy connection of other DMX devices.
Powerful AC power distribution
The DST4WH-5-PRO is equipped with AC Power outputs fitted with Neutrik PowerCon connectors that can handle up to 16A of current. This makes it possible to power multiple lighting devices with ease.
Easy Mounting and Reliability
You can easily mount the DST4WH-5-PRO on truss with the included SRS straps. With M10 threads, you can also use a C-clamp for mounting. A safety cable connector is available for extra safety.
Lifetime Warranty
All SRS splitters are covered by a lifetime warranty, giving you peace of mind about the durability and reliability of your investment.
Technical specifications
- 4-channel DMX splitter/booster
- 4-channel AC power distributor (max. 16A)
- Optically isolated outputs up to 1000V
- Amplification on each output
- 2x LED indicator of the DMX line status for each output
- W-DMX signal bargraph with slide antenna
- Truss/wall-mount
- M10 thread for C-clamp connection
- Safety wire connection
- Full range power supply: 85V-264V, 50/60Hz, 5W
- Neutrik PowerCon connector
- LIFE-TIME WARRANTY
