SRS Lighting | DSR10 | DMX splitter 10-channel | 19-inch | Power input: Powercon

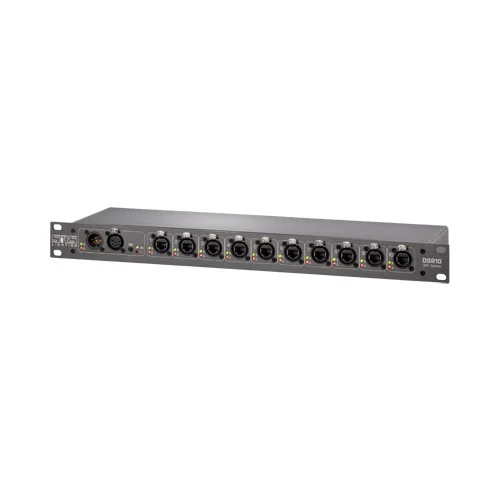

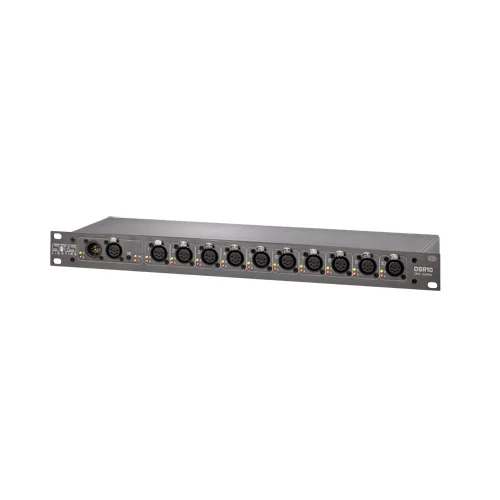

SRS Lighting DMX splitter 10-channel

This SRS Light DMX splitter 10-channel has 10 DMX outputs and Neutrik Powercon voltage supply. Easy to mount in a 19-inch rack.

SRS-Lighting's DMX splitters:

SRS Light's DMX splitters are of very high quality. This is why they dare to give a lifetime warranty on these products! All DMX splitters from SRS Light can be equipped with DMX 3- and/or 5-pin XLR and/or RJ45. All DMX splitters have a DMX input and DMX-thru. The DMX outputs are optically/electrically isolated lines and are marked with numbers. Each DMX output has a separate power supply and line driver, and a clear indication of the signal by means of two LEDs per output. The DMX splitters have a switched-mode power supply, allowing the mains voltage to vary between 85V and 265V. The SRS splitters are available with 3- and 5-pole XLR DMX connection or a combination of these (custom made). If you select the custom option, you can create your own configuration. The DMX splitter 10-channel also comes with wireless DMX.

specifications:

• 10-channel 19inch DMX splitter with input (A/B) selection
• optically isolated outputs with 1000V isolation
• 2x led indication for DMX line status per output
• 2x led indication for DMX line status per input
• DMX end stop by switch

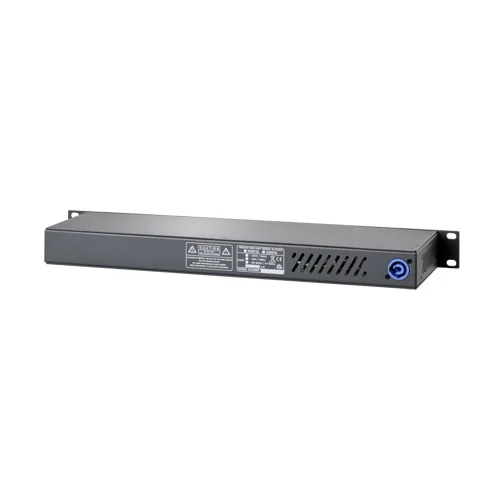

• mains power via powercon
• 19" 1he rack mount
• mains voltage, powercon 85-265V, 50/60HZ

The SRS Lighting DMX splitter 10-channel comes with a lifetime warranty!
