SRS Lighting | Dimmer 4-channel | Circuit breakers: RCBO | Main: RCD | DMX 3+5pin | Excluding connection panel

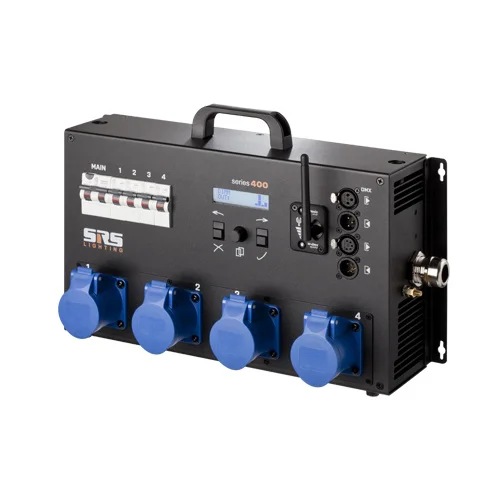

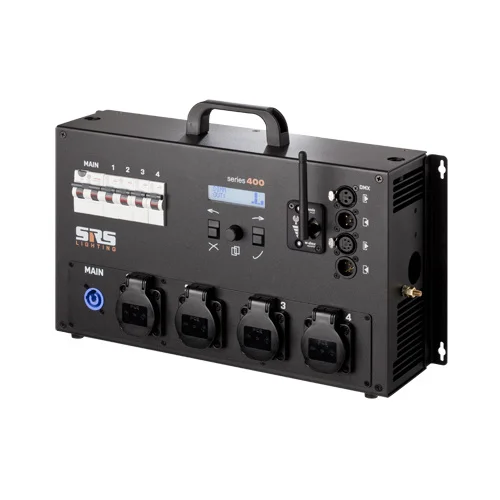

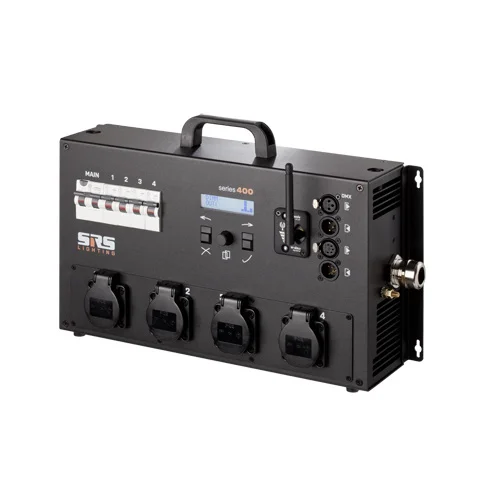

Dimmer 4-channel with RCBO

The Dimmer 4-channel with RCBO is a super-mobile dimmer. You can easily place this dimmer anywhere or hang it from a G-hook. The 4-channel dimmer has the same internal qualities as SRS Light's 12-channel dimmer. SRS Light started designing the 12-channel dimmer packs in 1992, which went into production in 1994. The current generation DDP is directly derived from these. The dimmers are distinguished by a smart cooling system and are suitable for continuous use. The most advanced dimmers from 1 to 12 channels all have the same internal qualities. All dimmers therefore have a rise time of 400uS. This results in less vibrating filaments, yielding a longer lamp life and lower noise production. All SRS Light dimmers come with a minimum 2-year warranty. Specifications

• 4x6A, 4x10A or 4x13A and 16A dimmer capacity
• AC230V, AC3x230V/400V 50Hz via CEE plug
• Minimum load 100 W.
• 3 or 5 pin XLR DMX connection
• Analogue inputs on request.
• Convectionaly cooled, fan runs only on critical temperature
• Optional Wireless/wireless DMX
• Rise time: 400uS.
• Multi item menu with preheat, limits, curves...
• Output connectors Schuko CEE16 3p Socapex Harting
• 2-year warranty.
