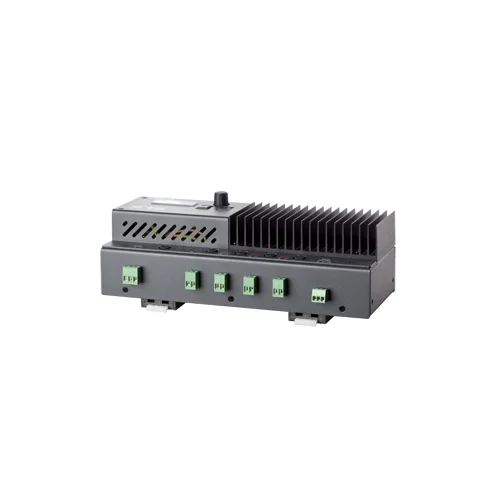

SRS Lighting | DDL4 | LED dimmer 4-channel | Power: 4x 300W | DIN-Rail | Suitable for: Retro-fit LED lamps | Connectors: WAGO
Four-channel dimmer (4x 300W) for traditional lamps or LED luminaires (low wattage). Ideal for hospitality applications and other location with different zones/spheres. Mounting on DIN rail. Read more
SRS Lighting | DDL4 | LED dimmer 4-channel | Power: 4x 300W | DIN-Rail | Suitable for: Retro-fit LED lamps | Connectors: WAGO
The SRS DDL4 LED dimmer offers 4x 300W control for traditional light and LED luminaires (low wattage). It uses triacs with DC drive/pulse fire technology for this, which ensures dimming at low loads.
Limits and curves

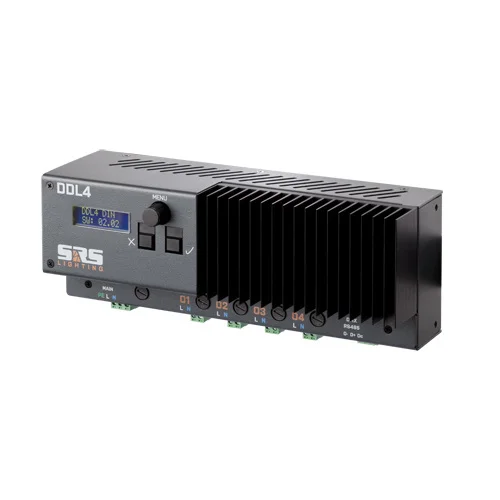

The unit is powered by single-phase mains supply. Control is by means of an LCD (12 x 2 characters), an encoder and two push buttons.
The SRS DDL4 4-channel dimmer features preheat, limits and a choice of curves.
Programming via USB
Free software is available for creating your own custom curves and for updating. A USB > DMX cable is available for this purpose, which can be connected to the unit's DMX port. This allows programming of some of the DDL4's essential functions.
This four-channel LED dimmer is very suitable for dimming retro-fit LED lamps. The 4-channel LED dimmer is suitable for DIN-rail mounting. A 6-channel fader panel is available for manual control.
Technical specifications:
- Tool-free connection using WAGO weld terminals
- DMX512 control
- RDM ANSI E1.20 as option
- Programming via software
- Preheat settings
- Limits settings
- Upload custom curves
- S-drive with pulse transformers
- Dimming of conventional light and LED luminaires
- Cooling by convection (without fan)
- Dual overheating protection
- Programmable via USB using DMX input
- Wall mounting via DIN rail.
The SRS DDL4 is the ideal dimmer for the hospitality industry in the transition from traditional incandescent lamps to the much more flexible possibilities of LED luminaires.
