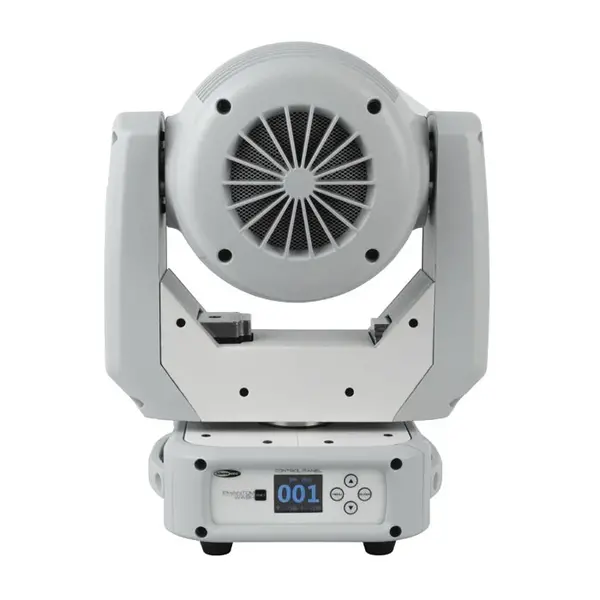

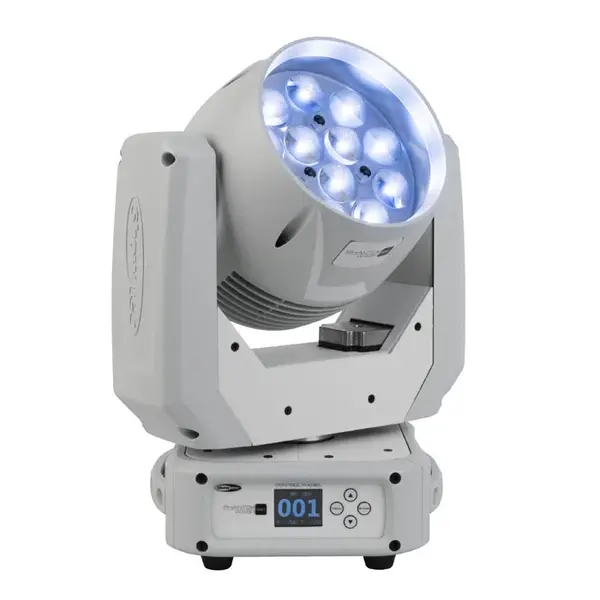

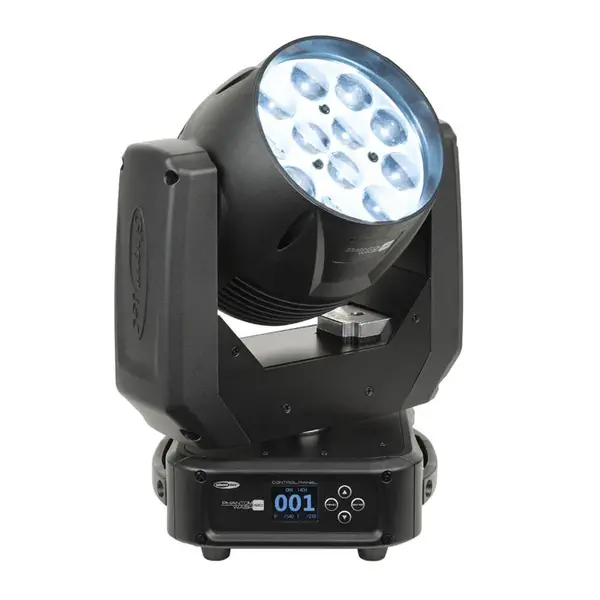

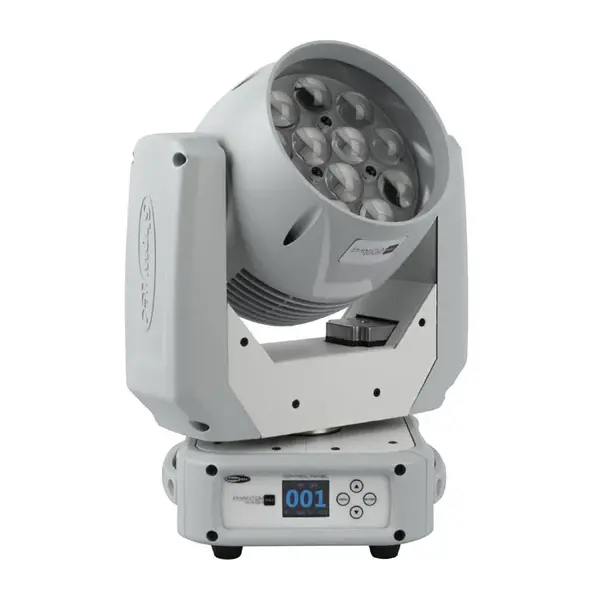

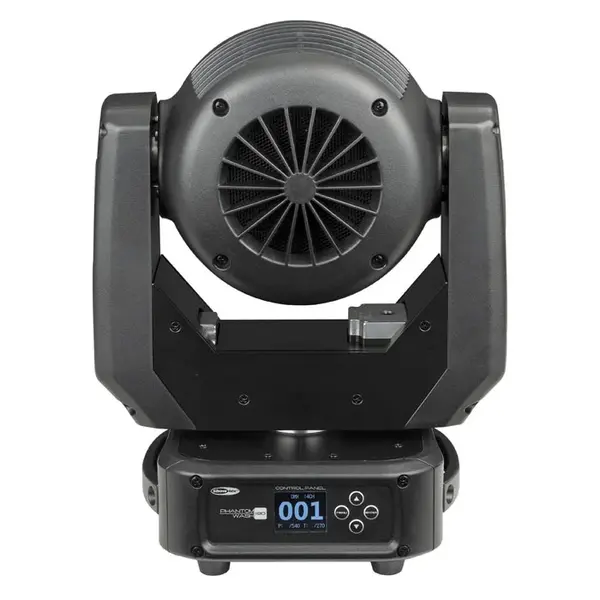

Showtec | Phantom 180 Wash | 180 W RGBW LED Wash Moving Head
Description
The Showtec Phantom series consists of reliable high-performance moving light effects, including several Moving Heads (Spot, Wash, Beam, Hybrid and Matrix FX) and a Moving Zoombar. They have a stylish design and can create great (dynamic) optical effects. Each Phantom fixture is easy to control manually and has multiple control options, such as DMX and master/slave. Not only is each Phantom user-friendly, you can easily and quickly rig them on stage thanks to their compact and lightweight design and a Quick Lock bracket system or single-clamp attachment.The Phantom series consists of several moving show lighting units. Consider, for example, the Phantom Spot with a wide spread angle that lets you cover a large area with colourful moving gobos. If you prefer a tight, bundled beam of light for high-energy events, then choose the Phantom Beam combined with smoke or mist. A third Moving Head effect can be discovered in the Phantom Wash, which emits a widely adjustable soft-edge light beam whose multiple LEDs can be individually controlled. It is therefore suitable for vivid colour mixing on stage.
The Phantom Hybrid and Matrix FX are special fixtures. For example, you can use the Hybrid to create both a Spot, Wash and Beam effect and the Matrix FX has individually controllable pixels (5 x 5), on which you can clearly display animations, such as letters and numbers.
Each fixture offers multiple functionalities, effects and control options. They also all have an optional custom flight case for safe and easy transport. We recommend you check the product pages for more information.
The Showtec Phantom 180 Wash is a powerful 180-watt RGBW LED Wash Moving Head within a wide 7°-50° motorised zoom range, suitable for indoor venues. Its 12 powerful 15W LEDs are divided into four different sections that can be controlled separately. The Phantom 180 Wash has several built-in programmes and its 16-bit pan and tilt ensure precise and fast movements. Furthermore, it features a 0-100 % dimmer and 0-20 Hz strobe function for creating a lively show. The Phantom 180 Wash is quick to rig on stage thanks to its Quick Lock brackets.
Technical specifications
Type of Light Source: LED
Number of Light Sources: 12
Power Light Source: 15 W
Luminous Flux (Total): 3920 lm
CRI: 75
CCT: 7200 K
Minimum Circular Beam Angle: 7°
Maximum Circular Beam Angle: 50°
Zoom Type: Motorised
Minimum Zoom: 7°
Maximum Zoom: 50°
Control: Auto / DMX / Manual / Master Slave / Sound
DMX Channels: 14 / 29
Protocols: DMX
Screen: OLED
Zone Control (Sections): 4
Dimmer: 0-100 %
Strobe: 0-20 Hz
Pan: 540°
Tilt: 270°
Infinite Rotation: No
Input Voltage: 100-240 V AC 50-60 Hz
Power Consumption: 220 W
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX connector: XLR 3P In/Out
Length (mm): 290 mm
Width (mm): 205 mm
Height (mm): 366 mm
Weight: 8.5 kg
IP rating: IP20 (indoor use only)
Enclosure: Metal / Plastic
Colour: Black
Specifications
Light source type | LED |
Number of light sources | 12 |
Power light source | 15W |
LED-colours | |
Luminous flux | 3920Lm |
Color Rendering Index (CRI) | 75 |
Colour temperature | 7200K |
Zoom type | |
Minimum zoom | |
Maximum zoom | |
Control | Auto / DMX / Manual / Master Slave / Sound |
DMX channels | 14 / 29 |
Protocols | DMX |
Wireless | |
Dimmer | 0-100% |
Strobe | 0-20Hz |
Prism 1 | |
Prism 2 | |
Colour system | |
Dichroid colour wheel | |
Gobo system | |
Gobo wheel | |
Pan | 540° |
Tilt | 270° |
Power supply | 100-240V AC 50-60Hz |
Power consumption | 220W |
Power connector in | Power Pro Blue |
Power connector uit | Power Pro Grey |
DMX Connector | |
Weight | 8.5kg |
IP rating | |
Housing | Metal / Plastic |
