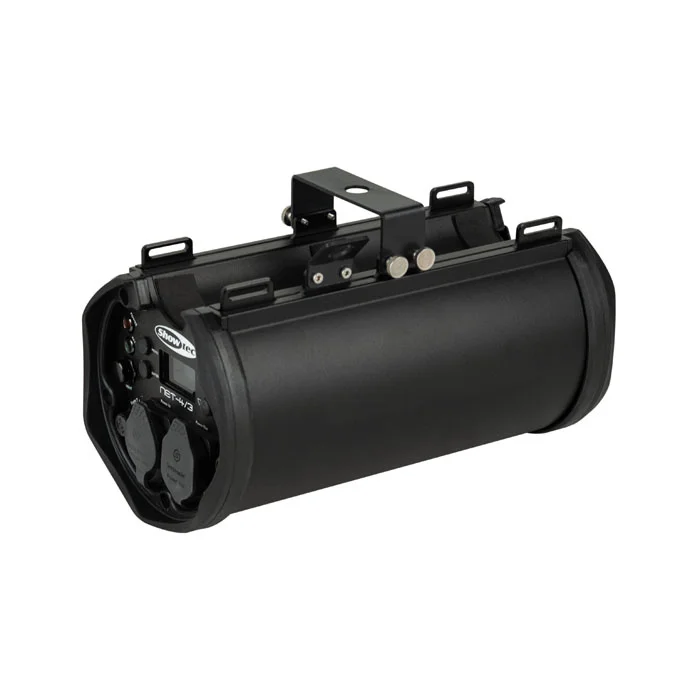

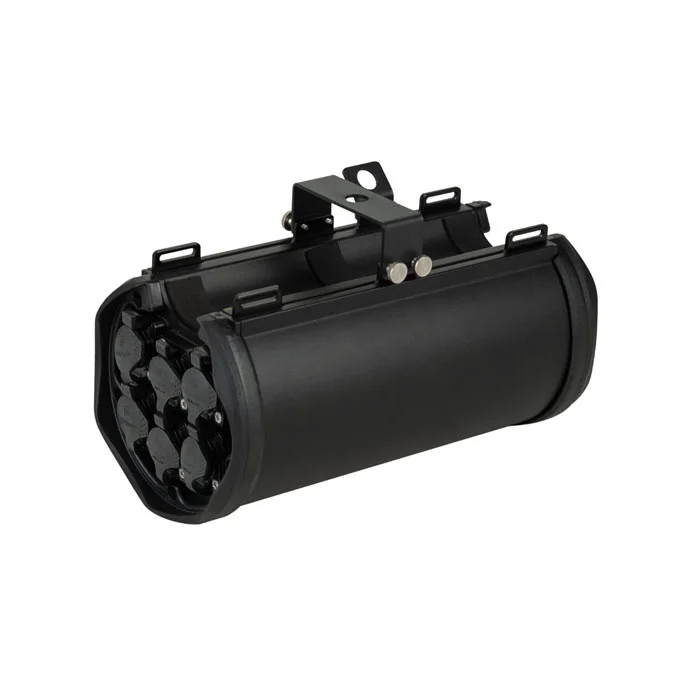

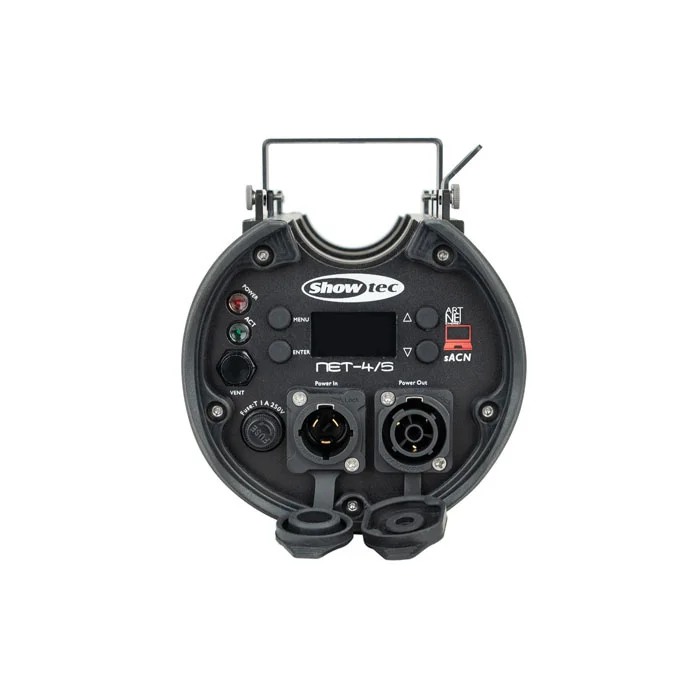

Showtec | NET-4 IP | 4-channel Art-Net node
Description
The NET-4/3 IP is an advanced network router that converts your Art-Net or sACN signal to DMX/RDM and back. It can handle up to 4 universes and acts as a 4-channel truss booster. The 4 DMX outputs are galvanically isolated. All settings can be made via the user-friendly menu using the graphic display and buttons, or the web interface, which gives you (remote) access via your computer or laptop and your network (default login: Admin, password: Admin). The compact, IP65-rated housing is fully equipped with Seetronic connectors and fits perfectly into your truss. Using the bracket or by placing Velcro in the 4 slots, it is easy to mount on any truss or tube. A rubber protective ring on either side of the robust housing makes this booster ideal for road productions. The NET-4/3 IP is powered via a Power Pro True connector. A Power Pro True cable is included.
Technical specifications
Input voltage: 100-240 V AC 50-60 Hz
Power consumption: 8 W
Power connector in: Power Pro True
DMX connector: XLR 3P Out
Data connector in: RJ45
Length (mm): 245 mm
Width (mm): 125 mm
Height (mm): 150 mm
Weight: 2.5 kg
IP value: IP65
Housing: Aluminium
Colour: Black
Control mode: Art-Net / DMX / PC Software
Protocols: Art-Net / DMX / RDM / sACN
Screen: OLED
Universes: 4
