Showtec | LAMPY 40 | 1 or 2 Universe DMX controller with 40 faders

The Showtec LAMPY DMX lighting controller: Maximise creativity!

The Showtec LAMPY series offers strong features and a very user-friendly and intuitive interface making shows easy, fast and fun to design and control.

The Showtec LAMPY series consists of 2 models, the LAMPY 20 with 10 multifunctional faders and the LAMPY 40 with 30 multifunctional faders. Both are available in 1 and 2 universe versions. In addition to the extra universe, the 2 universe versions offer Art-Net and sACN, groups, presets, virtual playbacks, fixture view, cue-list window and DMX output window on an external (touch) screen.

The 1 universe versions can be upgraded to 2 universe with the corresponding extra features via the optional LAMPY DNGL, which connects via a USB port.

Designing and controlling a light show for a small to medium-sized set up has never been easier. And never so enjoyable. Be surprised by the looks, intuitive operation and ease of use of the Showtec LAMPY light controllers, and Maximise your creativity.

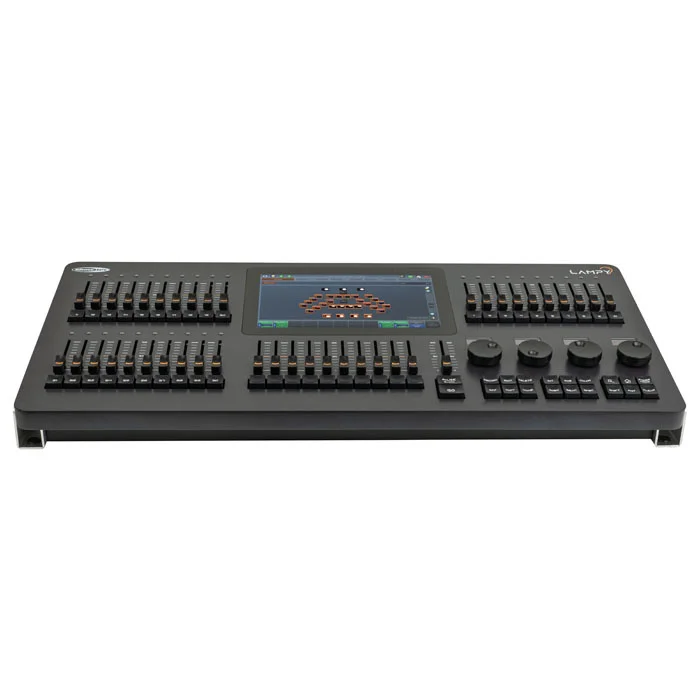

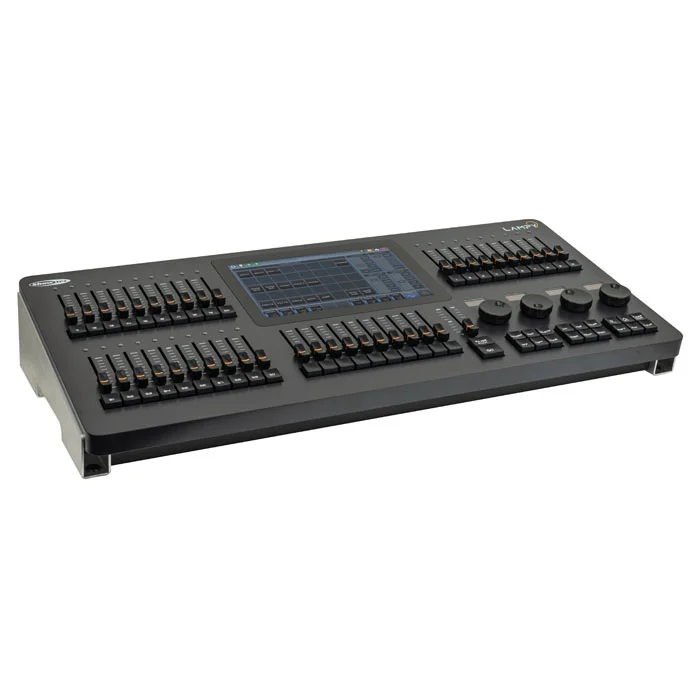

The Showtec LAMPY 40 1U is a fully featured DMX controller with state-of-the-art look and feel designed to control static and moving light effects, suitable for a variety of venues. The industrial, floating design, with 10.1" touchscreen and multicolour LED indicators, allows you to create a quick and clear workflow in a highly intuitive way. Arranging existing elements is now easier than ever before with customisable workspaces and Fixture View for a clear virtual stage layout with simple 'pick, drag and place' controls. You can also easily select any colour and exercise full control over your moving light effects.

The LAMPY 40 1U allows you to connect an external (touch)screen monitor and gain mobile control of your lighting via your iPad or tablet, as it is OSC compatible. You can easily create complicated and breathtaking show effects with its built-in effects engine. Unlike comparable DMX controllers, the LAMPY 40 1U has no less than four encoder wheels with 1.3" OLED display for visual function information.

LAMPY consoles use the Atlabase library that contains more than 21,000 fixture files.

You can expand its software capabilities to two universes by ordering an optional Showtec LAMPY Dongle. This doubles the number of DMX channels to 1024, enables Art-Net and sACN and provides access to all external monitor functions.

If 10 multifunction faders and 10 playback faders with cue buttons are enough for your activities, we recommend you check out our LAMPY 20 with 10 instead of 30 multifunction faders while retaining 9 memory pages for sufficient storage space.

Want to learn more about this product? Then visit our LAMPY series page now and find out more!

Technical specifications
Control mode: DMX / MIDI
DMX channels: 512
Screen: LCD / Touch
Screen size: 10.1"
External screen: Yes
Fixtures: 512
Cuelists: 90
OSC (Open Sound Control): Yes
Playback buttons: 40
Playback faders: 40
Playback pages: 9
sACN: Optional
Art-Net: Optional
SMPTE Time Code: No
Effects Engine: Yes
Universes: 1
Input Voltage: 100-240 VAC 50-60 Hz
Power Consumption: 60 W

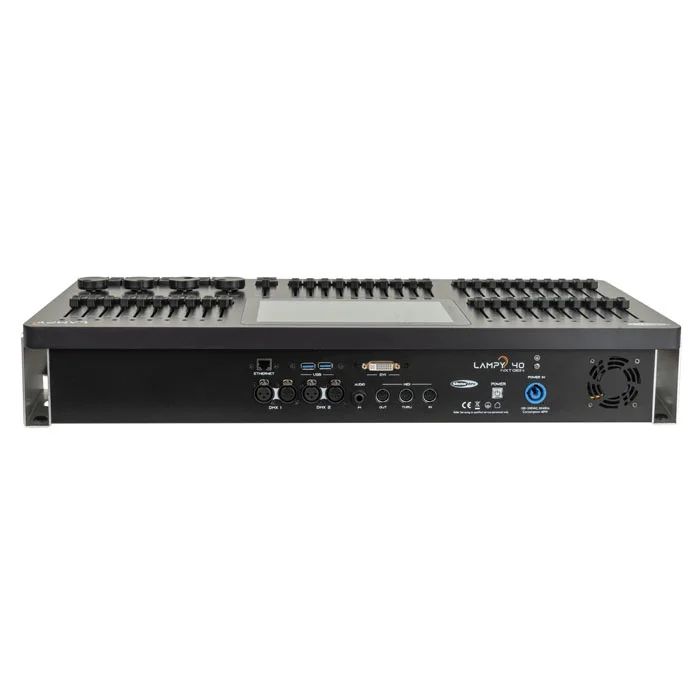

Power connector in: Power Pro Blue
DMX connector out: XLR 3P / XLR 5P
Data connector in: RJ45 / USB
Data connector out: RJ45 / USB
Midi connector: Yes
Ethernet ports: 1
Audio triggers : 3
Length (mm): 721 mm
Width (mm): 345 mm
Height (mm): 128 mm
Weight: 11.8 kg
Housing: Metal / Plastic
Colour: Black
