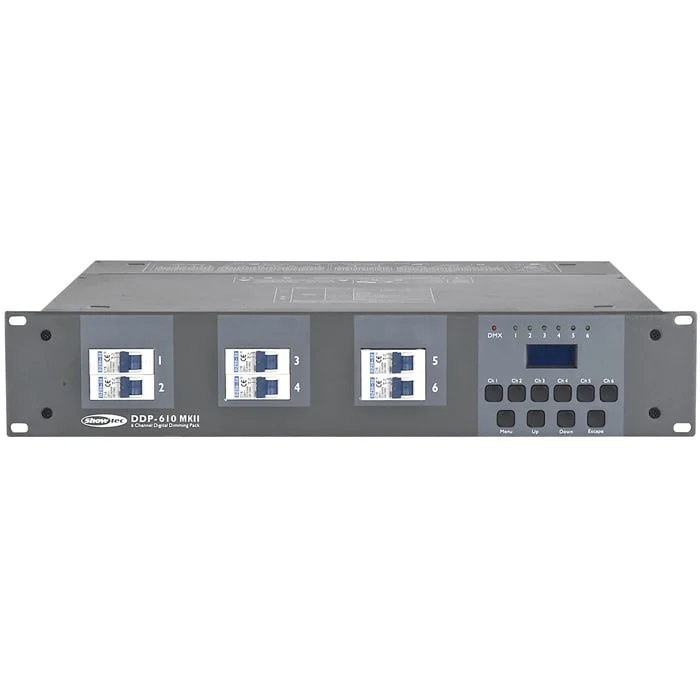

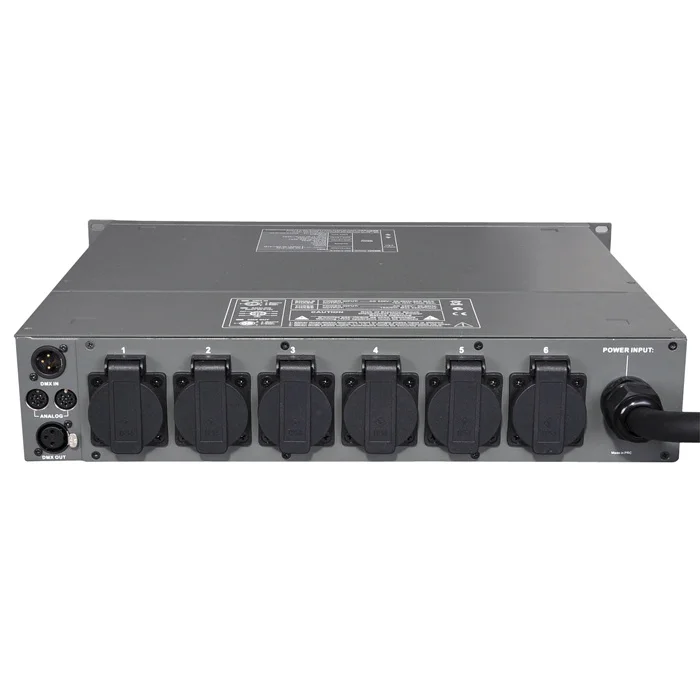

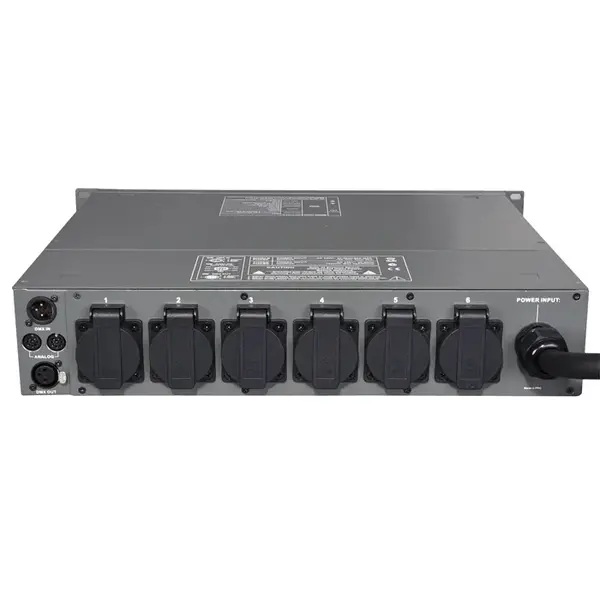

Showtec | DDP-610 MKII | 6-channel DigiDimPackage, 10A fuse, multi-pole
Description
The DDP-610M is a robust and reliable dimming package that can be used for both on-the-go and fixed installations. The device offers 6 dimming channels, each of which can be loaded up to 10 A. Each channel is fully adjustable. Furthermore, a separate dimming curve can be set for each channel (linear, switch, square).In case of power failure or DMX signal loss, the DDP-610M retains the last setting, so your venue or show is never left in the dark. Moreover, you can store and easily recall up to 12 chases, including for stand-alone applications.
All functions are controlled via the compact but user-friendly LCD display.
Technical specifications
Control mode: Built-in Program / DMX
DMX channels: 6
Input voltage: 400 V AC 3 Phase
Output power per channel: 10 A
Power connector in: CEE5P 32 A

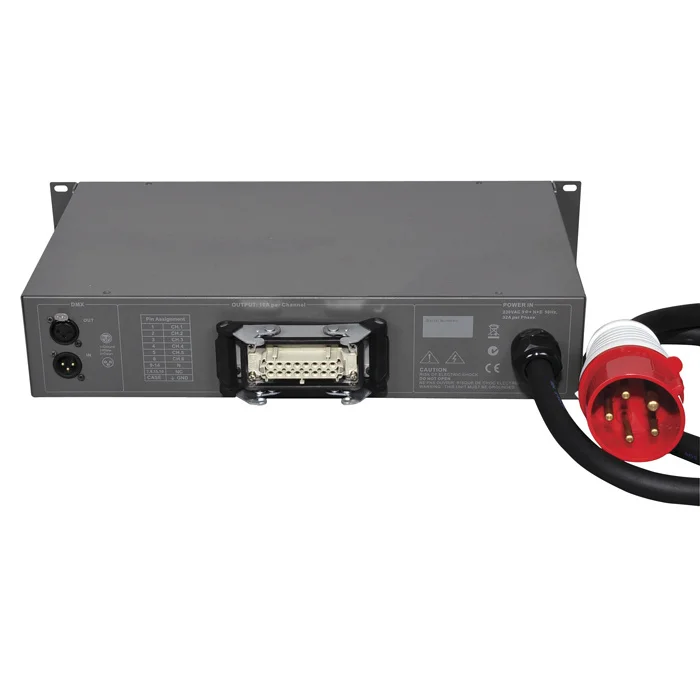

Power connector out: HAN16 Out
DMX connector in: XLR 3P
DMX connector out: XLR 3P
Cable length: 2 m
Length (mm): 483 mm
Width (mm): 88 mm
Height (mm): 380 mm
Weight: 12 kg
IP rating: IP20 (indoor use only)
Housing: Metal
Colour: Gray
