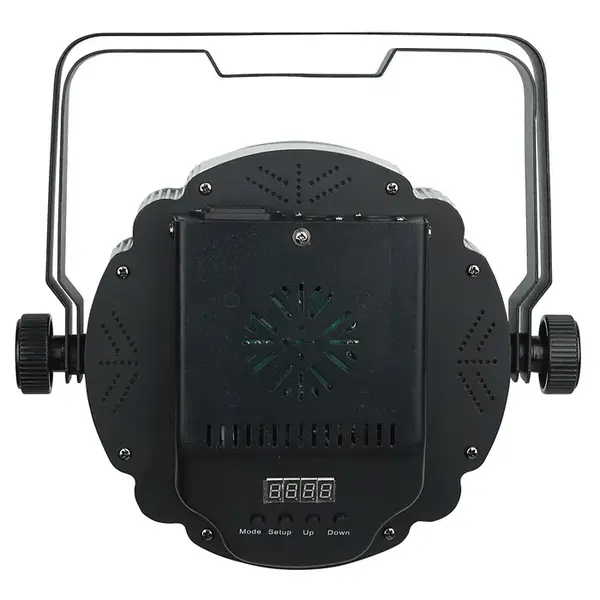

Showtec | Compact Par 7 Tri | 7x 3 W RGB LED Par
Description
The Showtec Compact Par range offers compact and lightweight LED Par fixtures, from cold and warm white to punchy and pastel colours, suitable for indoor lighting and colour mixing. They are all equipped with a double bracket for easy floor positioning and fit any environment with the choice of both a black or grey design. The Compact Par fixtures are controllable manually, via DMX and Master / Slave in manual and automatic mode with many built-in programmes. The Compact Par series has a high value to performance ratio.The Compact Par series offers a diverse set of silent working LED Par fixtures, from a Cool to Warm White (CW / WW) colour temperature to punchy colours (RGB) and punchy + pastel colours (RGBW). A special flight case for eight Compact Par 7 fixtures is optional for quick and easy transport and storage.
Each projector has different board options, effects and functionalities. We recommend you check the product pages for more information.
The Showtec Compact Par 7 Tri is a compact 7x 3-watt RGB LED PAR with double bracket for easy floor positioning, suitable for indoor locations. It has a fixed 40° spread angle and is equipped with a 0-100 % dimmer and 0-20 Hz strobe function, ideally suited for short-range applications. The Compact Par 7 Tri can be controlled manually, via DMX and master/slave in both manual, automatic and sound-controlled modes with various built-in programmes. Its design fits any setting with a choice of both black and grey versions.
Technical specifications
Light source type: LED
Number of light sources: 7
Light source power: 3 W
LED colour type: RGB
Refresh rate: 3900 Hz
Lumen total: 2685 lm
Beam angle circular: 40°
Control mode: Auto / Built-in Program / DMX / Master Slave / Sound
DMX channels: 3 / 4 / 8
Protocols: DMX
Input voltage: 100-240 V AC 50-60 Hz
Power consumption: 28 W
Power connector in: IEC
DMX connector: XLR 3P In/Out
Length (mm): 275 mm
Width (mm): 95 mm
Height (mm): 256 mm
Weight: 2.2 kg
IP rating: IP20 (indoor use only)
Housing: Aluminium
Colour: Gray
Cooling: Convection
Specifications
Light source type | LED |
Number of light sources | 7 |
Power light source | 3W |
LED-colours | RGB |
Refresh rate | 3900Hz |
Luminous flux | 2685Lm |
Color Rendering Index (CRI) | |
Colour temperature | K |
Beam angle circular | 40° |
Control | Auto / Built-in Program / DMX / Master Slave / Sound |
DMX channels | 3 / 4 / 8 |
Protocols | DMX |
Power supply | 100-240V AC 50-60Hz |
Power consumption | 28W |
Power connector in | IEC |
Power connector uit | |
DMX Connector | |
Weight | 2.2kg |
IP rating | |
Housing | Aluminium |
Cooling | Convection |
