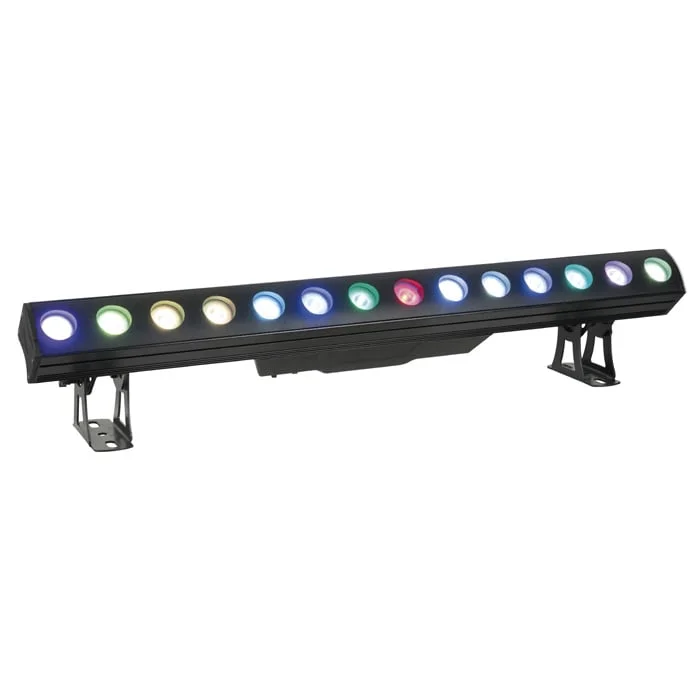

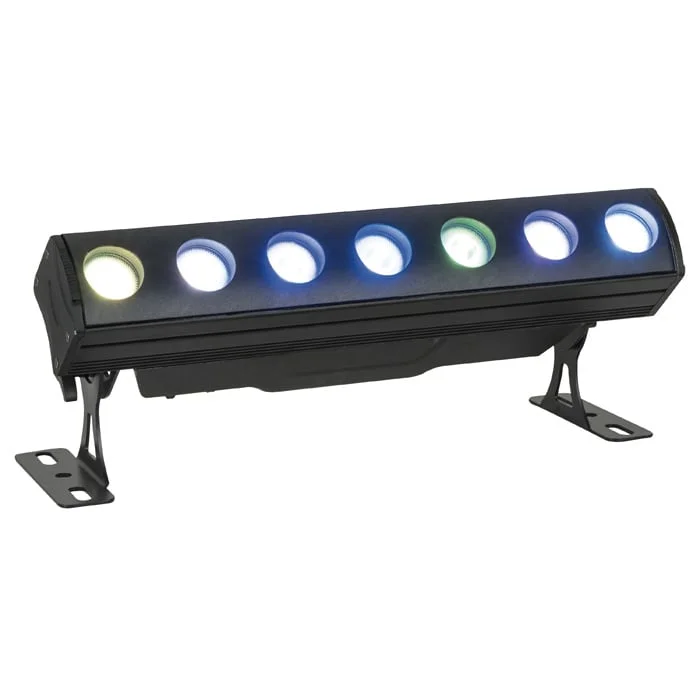

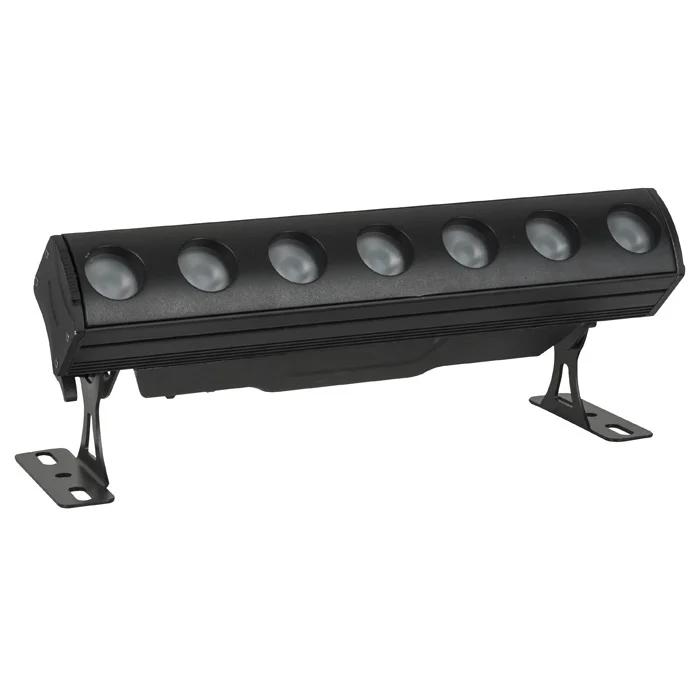

Showtec | Candela Pix | RGBW light bar | IP65

The Showtec Candela series consists of two very powerful Pixel bars using the latest technology with 15W-RGBW Prolight Opto LEDs. The luminaires are IP65-rated and have a robust aluminium housing, making them perfect for indoor and outdoor use. Unique to the Candela series are the optionally interchangeable diffusers. The bar has a beam angle of 8°, which you can easily change with the specially designed 20° and 40° diffusers, to create a wider beam. The bars can be fully pixel-controlled with DMX and have an on-board menu for manual RGBW dimming and built-in automatic programmes, accessible via the bright OLED display and control buttons.

Technical specifications
Light source type: LED
Number of light sources: 7
Power source: 15 W
LED colour type: RGBW
Refresh rate: 16000 Hz
Refresh rate (min): 250 Hz
Refresh rate (max): 16 kHz
Lumen total: 15242 lm
Beam angle horizontally: 10°
Beam angle vertically: 10°
Control mode: Auto / DMX / Master Slave
DMX channels: 4 / 6 / 9 / 28
Protocols: DMX
Input voltage: 100-240 VAC 50-60 Hz
Power consumption: 105 W

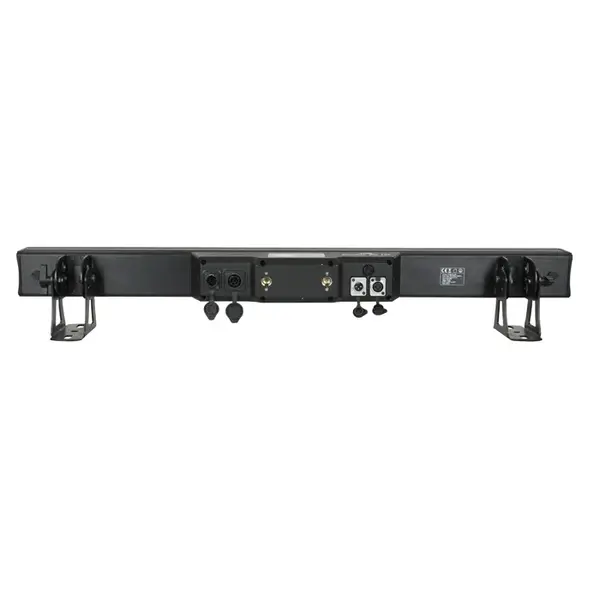

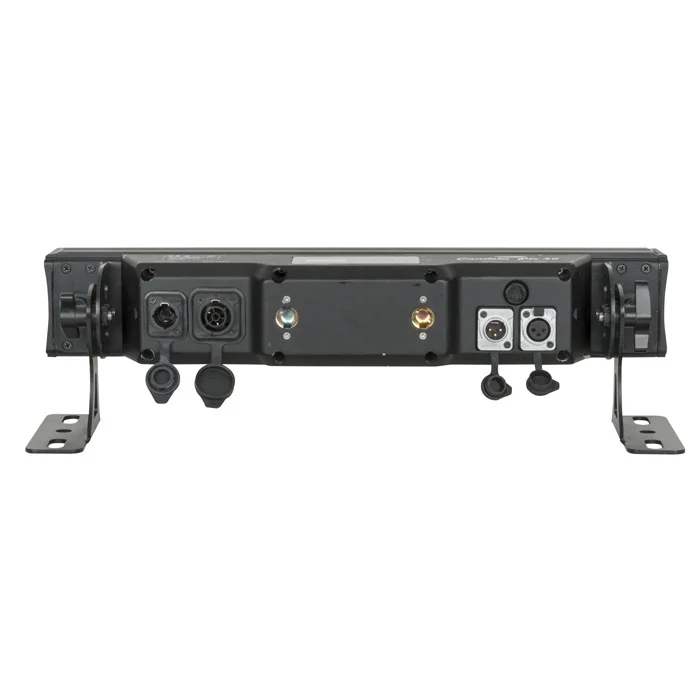

Power connector in: powerCON TRUE1
Power connector out: powerCON TRUE1
DMX connector: XLR 3P In/Out
Length (mm): 515 mm
Width (mm): 150 mm
Height (mm): 240 mm
Weight: 6.5 kg
IP value: IP65
Housing: Aluminium
Colour: Black
Cooling: Convection
