Showtec | 50786 | DB-1-8/RDM | 8-Channel DMX booster with RDM 3-pin XLR

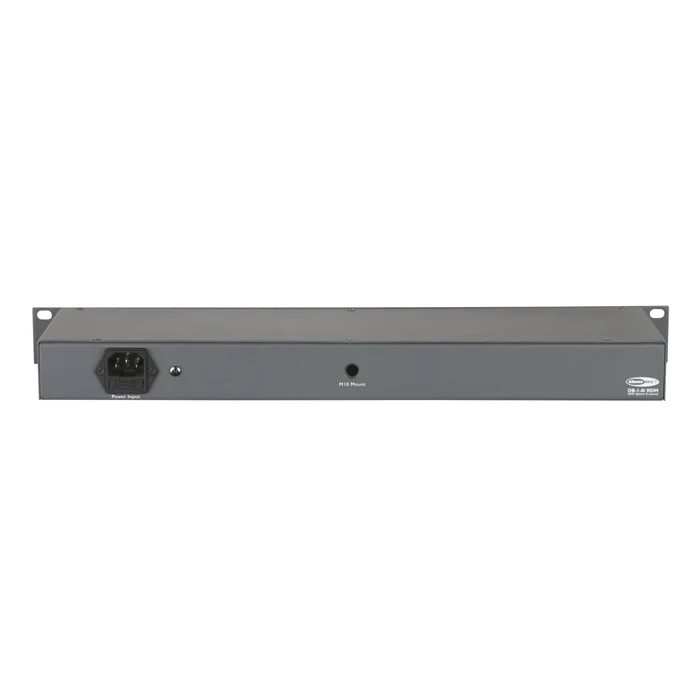

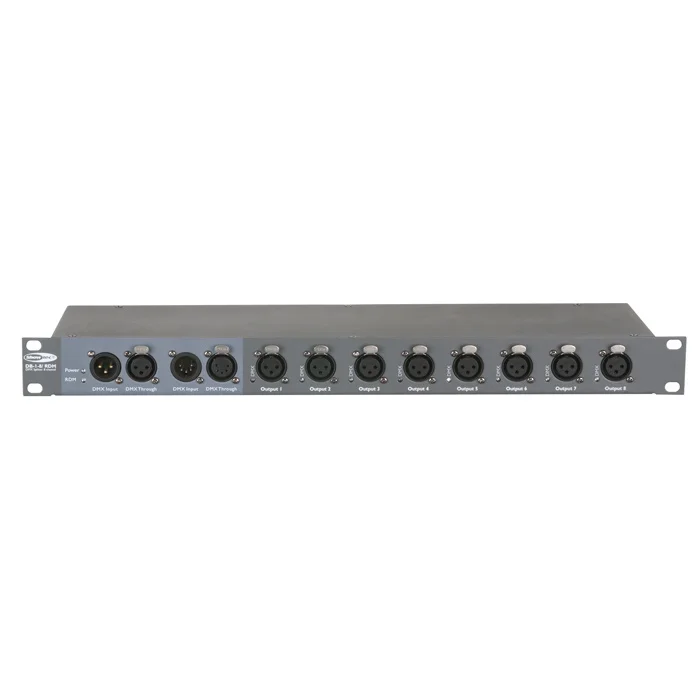

The DB models from Showtec are universal DMX512 splitters. They are designed to distribute the incoming DMX signal, in daisy chain configurations, into multiple separate outputs with an additional “Through” port. They can be mounted in any 19” rack or into the truss by the M10 nut on the rear end of the unit. It has clear LEDs to show the DMX signal status of each output and input. There are four models available, DB-1-4 with or without RDM which has 4 outputs and 3 & 5-pin XLR connectors, and the DB-1-8 with or without RDM which has 8 outputs with 3P XLR connectors.

Technical specifications
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 5 W
Power Connector In: Schuko Plug
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
DMX Connector In: XLR 3P / XLR 5P
DMX Connector Out: XLR 3P / XLR 5P
Length (mm): 483 mm
Width (mm): 134 mm
Height (mm): 46 mm
Weight: 1.96 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Housing: Metal / Plastic
Colour: Gray
Control Mode: DMX
Protocols: DMX / RDM
Universes: 1
