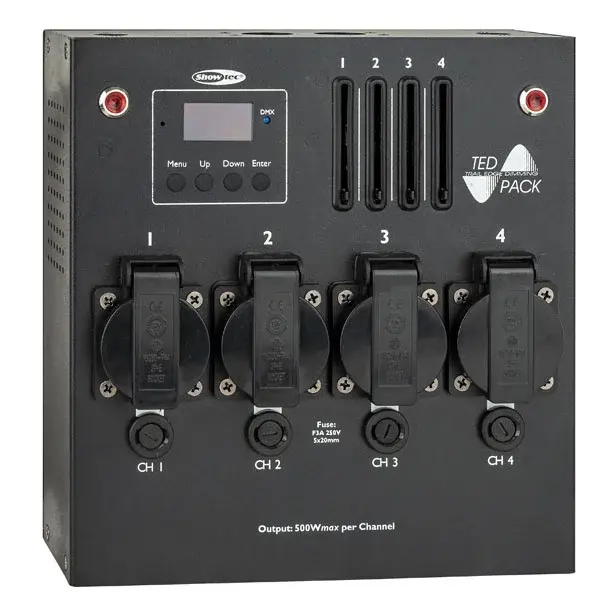

Showtec | 50447 | TED Pack LC | 4-Channel Dimmer Pack with local control

The TED Pack LC is a 2000 W leading and trailing edge 4-channel dimmer with built-in control faders for indoor use with dim, switch and FX modes. The output is independent of the connected load and can be used with LEDs and incandescent lights up to 2 A per channel. Its channels can be linked or controlled individually. The TED Pack LC uses MOSFETs to dim the output and can be switched between leading edge and trailing edge dimming. The Special FX mode offers a safety channel that prevents unintentional activation which can be helpful for controlling shooters, canons, drops, et cetera. The unit can be controlled manually, via the built-in faders and via DMX. The included Quicklock bracket clicks on easily from the back or the top.

Technical specifications
Control Mode: DMX / Local Control / Manual
Protocols: DMX / RDM
DMX Channels: 1 / 2 / 3 / 4 / 5
Power Supply: 220-240 V AC 50 Hz
Output Current per Channel: 2 A
Power Connector In: Power Pro Blue
Power Connector Out: Schuko Socket
DMX Connector In: XLR 3P / XLR 5P
DMX Connector Out: XLR 3P / XLR 5P
Length (mm): 240 mm
Width (mm): 230 mm
Height (mm): 92 mm
Weight: 2.8 kg
IP Rating: IP20 (indoor use only)
Housing: Metal
Colour: Black
