Showtec | 50058 | Quick DMX Rack 1024 | 1024 Channels

Quick DMX provides the ultimate solution for lighting control. It offers the possibility of direct control, from simple LED spots to the most complex moving light and pixel based fixtures, with a computer, the software and an interface. The computer is loaded with Quick DMX software to build and control the lighting show, by an interface via a USB or Ethernet port.

The software is designed to be user-friendly and can easily be used by even those whose knowledge of DMX and light programming is limited. We offer a unique software, which is free to download from our web site download page. The software is available for Windows and MacOS. All software upgrades are free.

THE SOFTWARE

The software contains several views: Editor, Pixels, Live, Stand Alone. Each view has its own dedicated tabs to have direct access to all necessary functions and settings.

Declare your lighting equipment in Editor > Fixtures. The library contains personality files for the most common fixtures (Spots, Bars, Moving heads, Color changer, Strobes, etc ...). This library is regularly updated to stay current with new fixture releases. If the light you are using is not included, you can ask for in our forum (https://thelightingcontroller.com/viewforum.php?f=25) and we will do it for you. Alternatively, it is easy to add and configure new ones by yourself in the software. You are able to re-patch your fixtures without losing previous made scenes and generators (fixtures based technology).

With Editor > Steps you can create scenes. The view manages many functionalities like:
• DMX values per fixture
• RGB color picker
• Chase step overview and editor
• Time and fade mode per channel
• 2D fixture view
• Fixtures grouping

In Generator, you can build complex lighting scenes within a few mouse clicks, it can handle pan/tilt movements, colors, gobo and effects, for a group of moving lights, with delay effects. It has preset shapes dedicated for dimmers, movements and colors.

With Pixels it’s easy to create chaser, rainbow, text effects or upload GIFs to use as template for your animated pixel show. Just add your devices with the correct horizontal and vertical pixels assign the color range and position on screen like the real setup. Pixels will do all calculations and generate all DMX values.

In Live, you can play and customize the show depending of your needs (pages, buttons, presets). Buttons can be made for colors, effects movements but can also trigger a complete light scene or timeline multimedia file. While operating in live it’s possible to overrule with the Editor.
With 3DView you can display the stage in 3 dimensions and it shows the lights moving in real time, from any point of view. Set stage size and place your objects and lighting fixtures. The program has a bank of basic objects (speakers, truss, music instruments, ...). You can also import your own objects. Set position of each object (or fixture). It is possible to set these parameters on a group of objects. Set textures, luminosity, smoke level for more realism.

Timeline is a synchronized multimedia show editing software. It is able to play multiple file formats (video, picture, audio and light scenes). Drop the files into the timelines and slide them in the desired time. The possible applications are:
• basic “sound and light”. The readable audio files are wav, mp3, ogg and wma format.
• “video and light” on LED screen or video projector. The readable picture files are bmp, jpg, png, giff. The readable video files are avi, mpg, mpeg, mov, wmv.

Sequential List is a vertical scenes list editing software. It is able to play the scenes one after each other with a “Go” button.

Overview of the main new features in QDMX V9:
• Lightshow Creator - press one button and get a complete ready to use lightshow
• 3DView – textured objects and new 3D engine
• multi head fixtures management from A to Z
• Generator – pan/tilt offsets/zoom/fan
• Live – improved BPM and Beat management
• Live – slider “shift” (from Generator)
• Virtual DJ connection

All these news are showed in these videos:
https://www.youtube.com/playlist?list=PLDNGPUPpb6cjfgJbG4Qn5fyX150fR7NHx

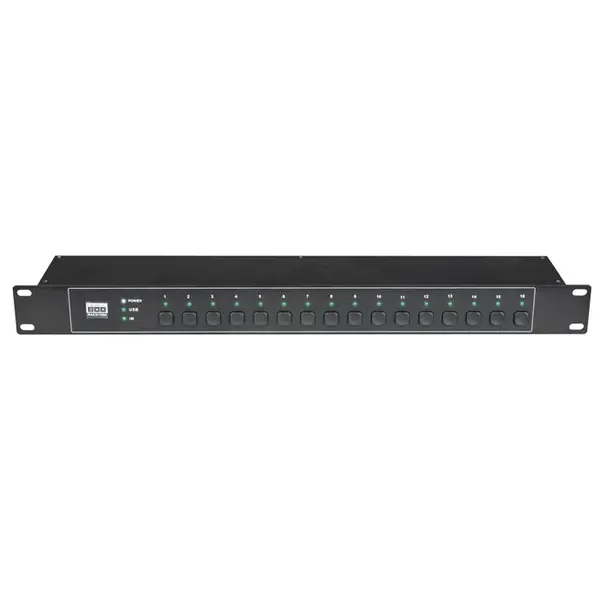

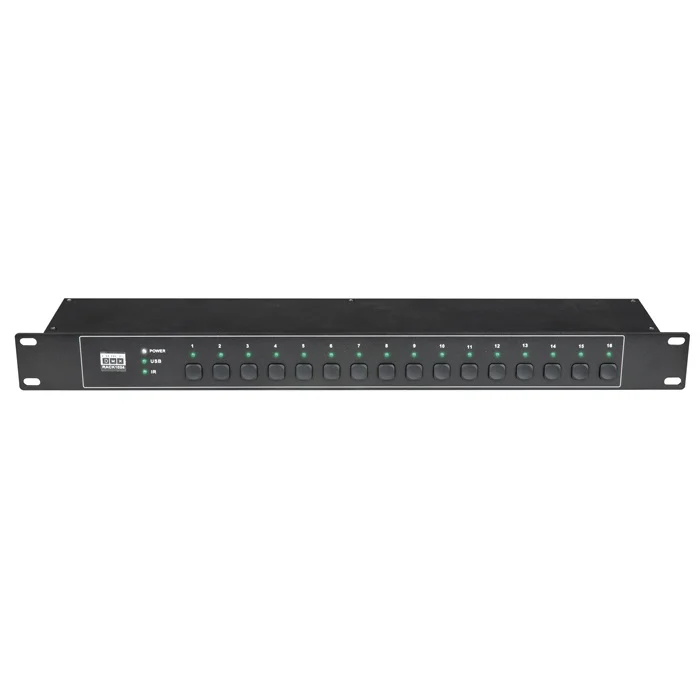

The Quick DMX Rack 1024 is a standalone interface which can store 16 different chases or scenes. This makes the unit very suitable for fixed installations. Because of the basic concept even non-technical users can control their lightshow with Quick DMX Rack. They can select 16 programs that are pre-programmed by an installer. To edit or change chases or scenes the unit must be linked with Quick DMX software. It is also possible to use the controller as 1024-channel DMX interface. The interface has 3 indication LEDs, power, USB link and DMX input.

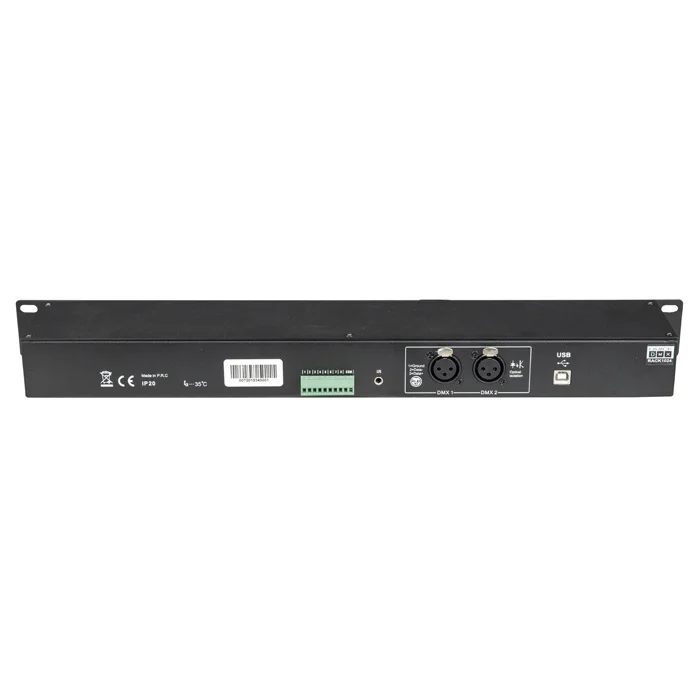

8 external contacts at the backside allow you to connect any external switch or trigger which can be programmed to start a scene or show.

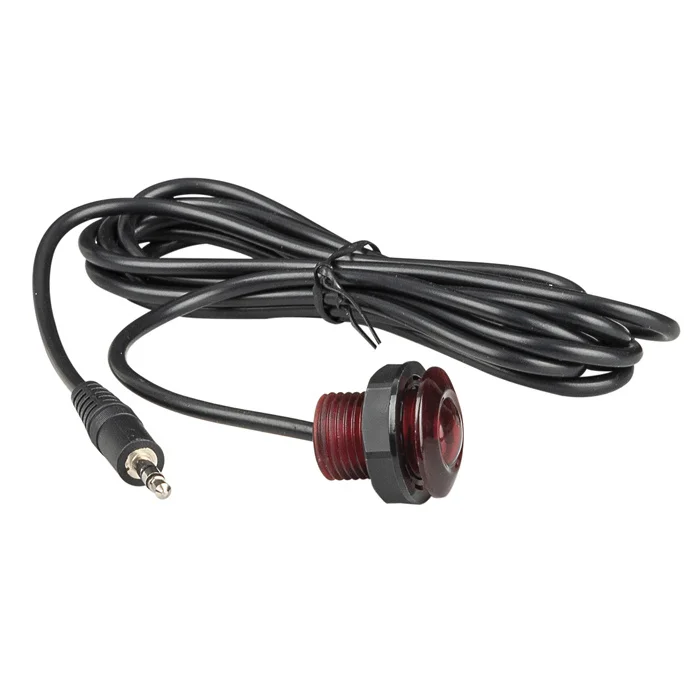

The Quick DMX 1024 rack comes including an external Infra-Red receiver as well a Infra-Red remote control to easily select and start the desired scene or show.
The Quick DMX Rack 1024 is the right solution for installations in hospitality, exhibitions, museums and theme parcs.

For technical support you can visit the technical forum https://thelightingcontroller.com.

Technical specifications
Supported Operating Systems: Mac / Windows
Control Mode: DMX / IR / PC Software
DMX Channels: 1024
Universes: 2
Power Supply: 9 VDC
Power Consumption: 2.7 W
Power Connector In: USB
DMX Connector Out: XLR 3P
Data Connector In: USB
Length (mm): 483 mm
Width (mm): 78 mm
Height (mm): 44.5 mm
Weight: 1.6 kg
Rack Units: 1 U
Housing: Metal
Colour: Black
