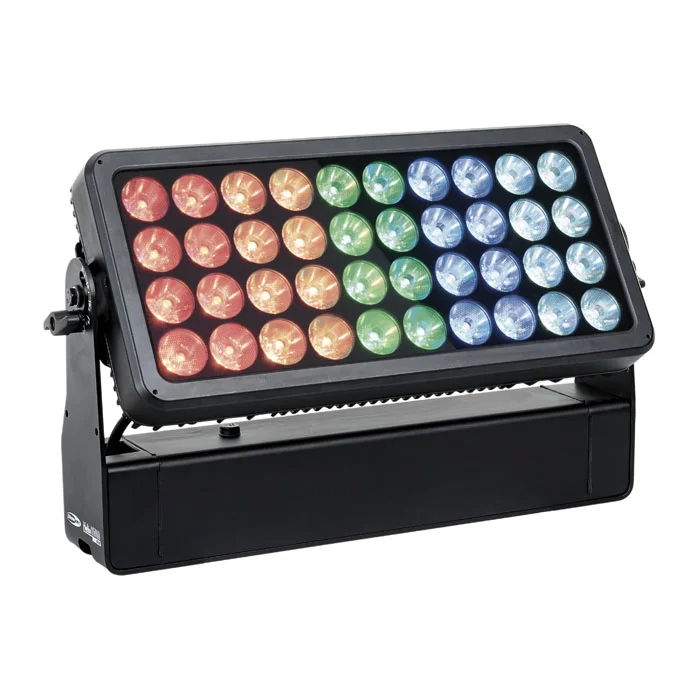

Showtec | 43724 | Helix S5000 Q4 | 40x 10 W RGBW Outdoor LED Washer (CRMX & WDMX)

The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.

Technical specifications
Light Source Type: LED
Light Source Quantity: 40
Light Source Power: 10 W
LED Colour Type: RGBW
Refresh Rate: 3000 Hz
Luminous Flux (Total): 14560 lm
Beam Angle (Horizontal): 10°
Beam Angle (Vertical): 10°
Control Mode: Auto / Built-in Program / DMX / Master Slave
DMX Channels: 4 / 6 / 8 / 20 / 24
Protocols: DMX / RDM
Wireless: LumenRadio
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 415 W
Power Connector In: powerCON TRUE1 TOP
Power Connector Out: powerCON TRUE1 TOP
DMX Connector: Dedicated 5P IP65 In/Out
Cable Length: 1.5 m
Length (mm): 530 mm
Width (mm): 125 mm
Height (mm): 330 mm
Weight: 11.5 kg
IP Rating: IP65
Housing: Aluminium die-cast
Colour: Black
