Showtec | 43570 | Spectral M800 Q4 Tour | 14x 5 W RGBW LED Spot

The Showtec Spectral series offers reliable and durable spots that meet the high quality and functionalities required by festivals and fixed venues. All Spectral spots offer high output, accurate colour temperature, silent operation and a sturdy, compact design. The Spectral fixtures differ greatly in properties, from a Warm White LED Spot with a fixed beam angle to an RGBW LED Spot with a wide motorised beam angle and 2-section control. That is why you will probably see them at every festival!

Some Spectral luminaires are intended for indoor locations while other models are built with an IP65 rating, suitable for outdoor use. Thanks to a dimmer and strobe function, most Spectral luminaires are ideal for colour-mixing on stage, from punchy to white and pastel colours. A suitable solution can be devised for every setting.

Each projector offers multiple control options and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

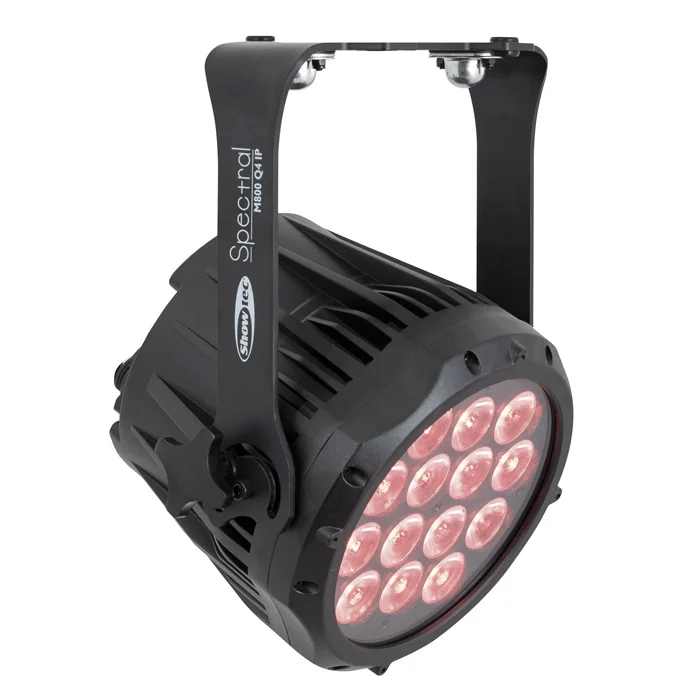

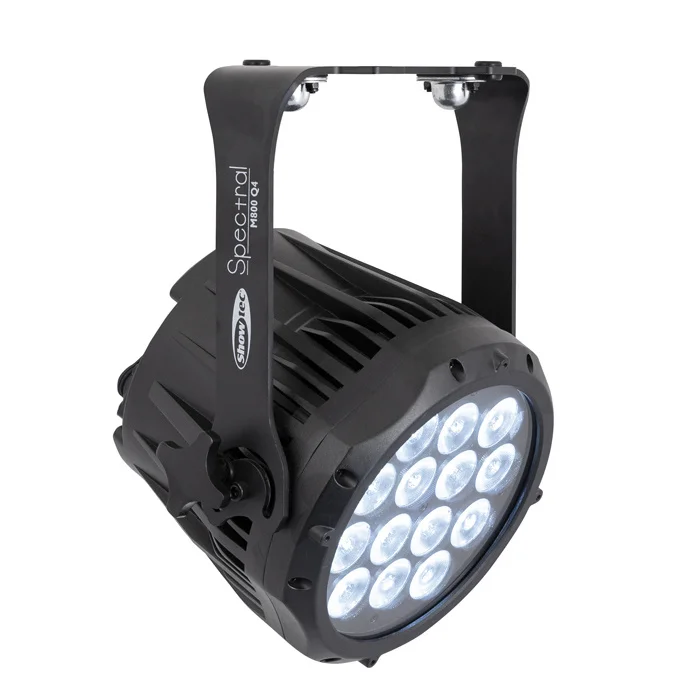

The Showtec Spectral M800 Q4 Tour is a solid and reliable 14x 5 watt RGBW LED Spot suitable for indoor venues. This fixture has Power Pro and 3- and 5-pin DMX connectors. Each function and effect, including its dimmer and strobe function and colour mixing engine, is controllable via DMX and Master/Slave in Manual or Auto run mode. The Showtec Spectral M800 Q4 Tour projects a bright, soft field of coloured light with a 16° fixed beam angle. Its silent, fanless operation and strong 4.8 kg design makes it a very popular spot, added to almost every lightshow and event or festival in Europe.

Technical specifications
Light Source Type: LED
Light Source Quantity: 14
Light Source Power: 5 W
LED Colour Type: RGBW
Refresh Rate (Min.): 600 Hz
Refresh Rate (Max.): 25 kHz
Luminous Flux (Total): 2638 lm
Beam Angle (Circular): 16°
Control Mode: Auto / Built-in Program / DMX / Manual
DMX Channels: 4 / 5 / 6 / 7 / 9 / 10 / 13 / 15
Protocols: DMX / RDM
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 65 W

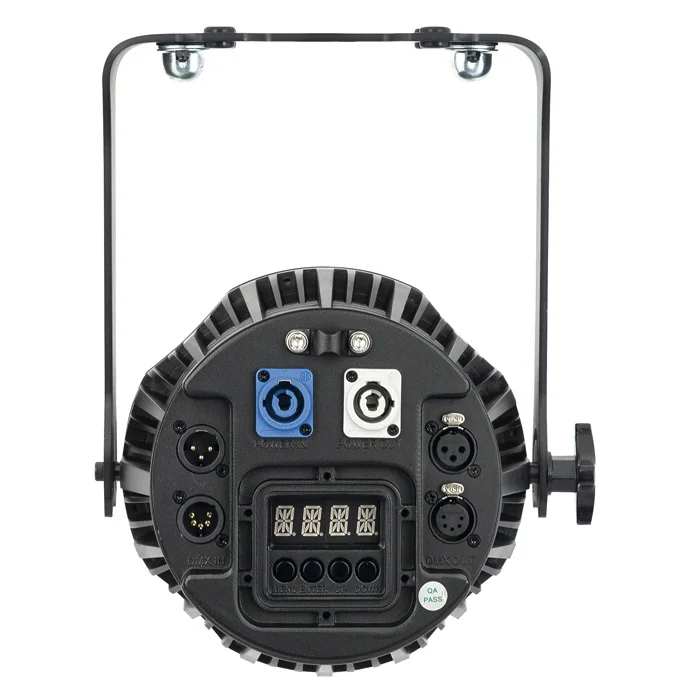

Power Connector In: powerCON Blue
Power Connector Out: powerCON Grey
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
Length (mm): 180 mm
Width (mm): 235 mm
Height (mm): 323 mm
Weight: 4.3 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium die-cast
Colour: Black
Cooling: Convection
