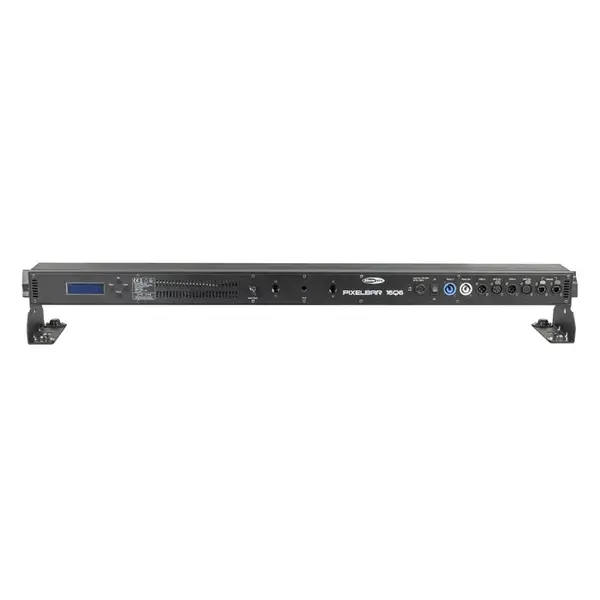

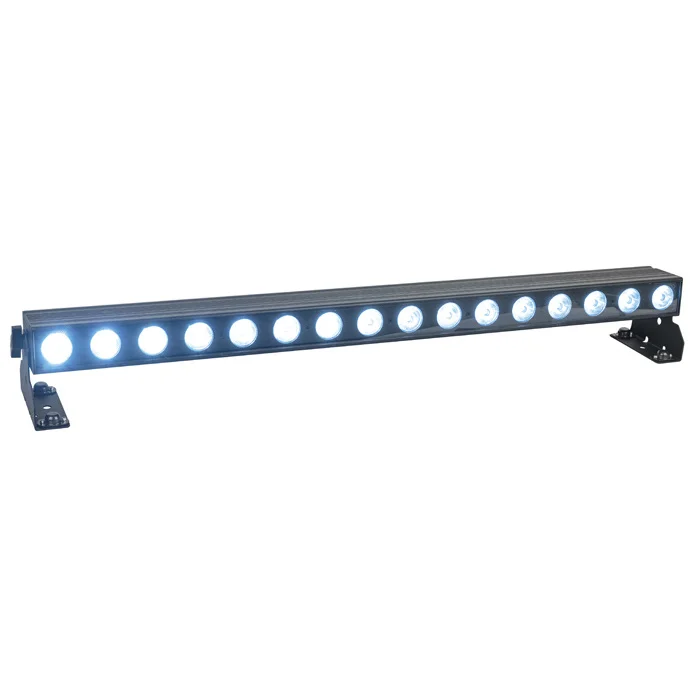

Showtec | 41308 | Pixelbar 16Q6 | Indoor RGBWA-UV light bar

The Showtec Pixelbar 16Q6 is an cost effective LED bar with 16x 6-in-1 RGBWA-UV LEDs. In order to ensure full control It offers full pixel control in 101 channel mode to create beautiful colour flows but can also be controlled in 6, 8.12 96, HSV & HSI mode for more basic use. With the RGBWA-UV LEDs it is possible to create both saturated and pastel colours. The UV colour makes the Pixelbar suitable for special FX in combination with e.g. UV colours A clear LCD display with an intuitive menu structure makes setting up as easy as ABC. Multiple mounting positions make rigging easy allowing creative setups.

Technical specifications
Light Source Type: LED
Light Source Quantity: 16
Light Source Power: 10 W
LED Colour Type: RGBWAUV
Refresh Rate: 12000 Hz
Luminous Flux (Total): 4020 lm
Beam Angle (Horizontal): 25°
Beam Angle (Vertical): 25°
Control Mode: Art-Net / Auto / DMX / Manual / Master Slave / Stand Alone
DMX Channels: 6 / 8 / 12 / 96 / 101
Protocols: Art-Net / DMX
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 170 W
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/Out / XLR 5P In/Out
Length (mm): 1047 mm
Width (mm): 136 mm
Height (mm): 146.5 mm
Weight: 6.5 kg
IP Rating: IP20 (indoor use only)
Housing: Aluminium
Colour: Black
Cooling: Convection
