Showtec | 34041 | ACT Flood 100 RGBW | 100 W RGBW Theatre Quad LED Flood

The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor applications. All ACT fixtures have accurate colour rendering (high CRI), a long lifespan, and are reliable without any interference of flickering. A bright, even field of light is ensured in any required colour temperature, from Warm White to smooth pastels and punchy colours. All Showtec ACT fixtures meet the high quality standard required for operating in theatres, on stages, and during business events.

The ACT Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short- to medium-throw applications. All ACT Profiles consist of ellipsoidals equipped with a zoom lens to provide a hard-edged, precisely focused field of light over long distances. The Showtec ACT Flood fixtures project a bright Wash effect, throwing a bright RGBW light with a wide angle in short-throw applications.

Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

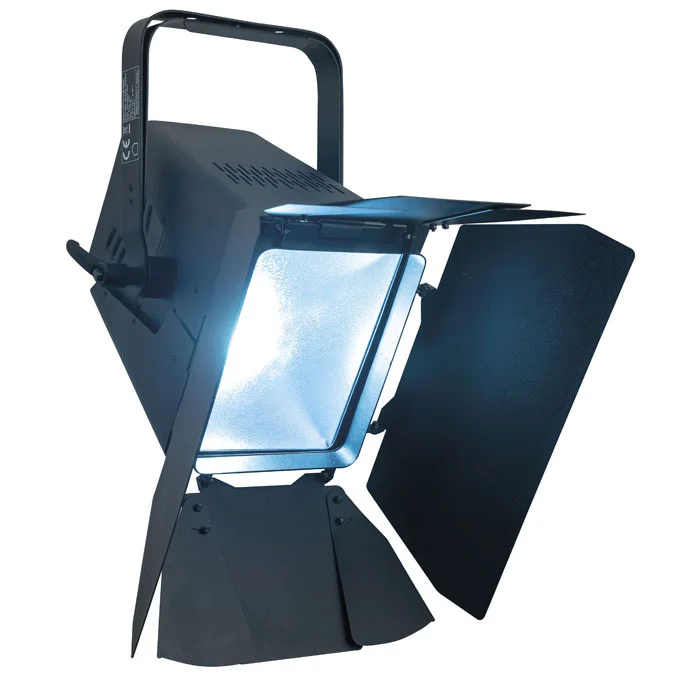

The Showtec ACT Flood 100 RGBW is a 100-watt RGBW LED Flood with Wash effect, high CRI, suitable for theatrical applications. It projects a bright, soft field of light with a 90° x 105° fixed beam angle. The ACT Flood 100 RGBW is DMX controllable and has dimmer and preset colour knobs for easy manual handling. Its colour temperature can be arranged quite easily as well, with choices between 2800 K and 10,000 K. An eight leaf barndoor is included for shaping the output.

Technical specifications
Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 103 W
LED Colour Type: RGBW
Luminous Flux (Total): 3714 lm
CRI: 75
Minimum CCT: 2800 K
Maximum CCT: 10000 K
Beam Angle (Horizontal): 90°
Beam Angle (Vertical): 105°

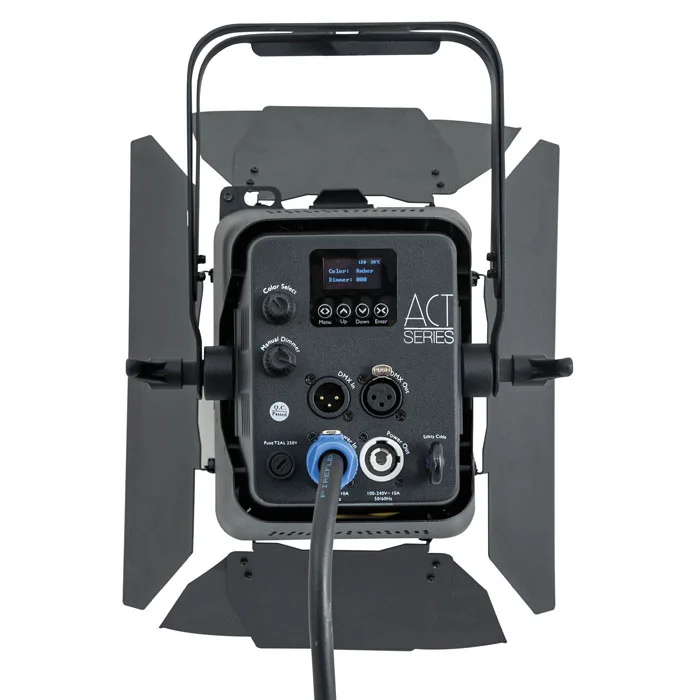

Control Mode: DMX / Manual
DMX Channels: 4 / 7 / 11
Protocols: DMX
Power Supply: 100-240 VAC 50-60 Hz
Power Consumption: 100 W
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/Out
Length (mm): 422 mm
Width (mm): 285 mm
Height (mm): 373 mm
Weight: 6.87 kg
Material: Metal
Housing: Aluminium
Colour: Black
