Showtec | 34013 | ACT Fresnel 150 RGBAL | Compact 150 W RGBAL Theatre LED Fresnel

The Showtec ACT series offers a wide range of theatre lighting fixtures consisting of Fresnels, Ellipsoidals, and Flood Lights, suitable for indoor applications. All ACT fixtures have accurate colour rendering (high CRI), a long lifespan, and are reliable without any interference of flickering. A bright, even field of light is ensured in any required colour temperature, from Warm White to smooth pastels and punchy colours. All Showtec ACT fixtures meet the high quality standard required for operating in theatres, on stages, and during business events.

The ACT Fresnels project a soft field of light with a widely controllable zoom range, dimmer and strobe effects, suitable for short- to medium-throw applications. All ACT Profiles consist of ellipsoidals equipped with a zoom lens to provide a hard-edged, precisely focused field of light over long distances. The Showtec ACT Flood fixtures project a bright Wash effect, throwing a bright RGBW light with a wide angle in short-throw applications.

Each projector offers multiple control options and some come with included accessories to enhance functionality. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

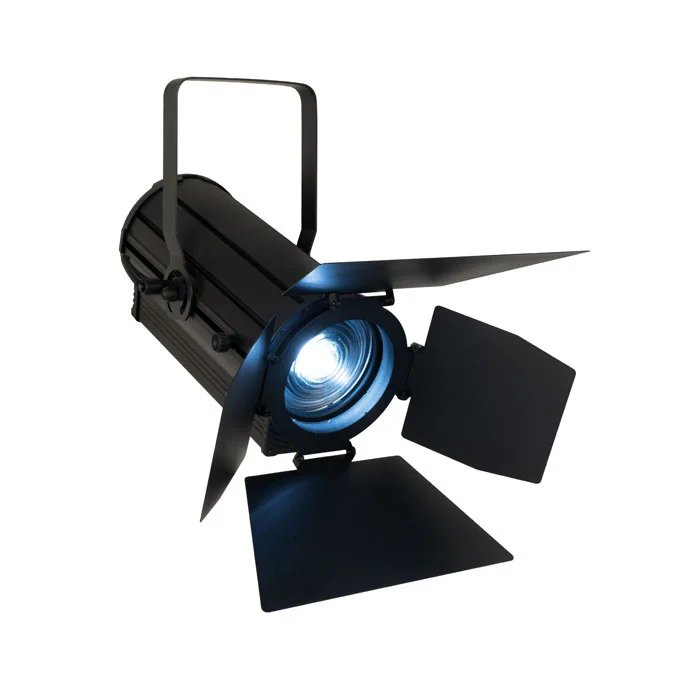

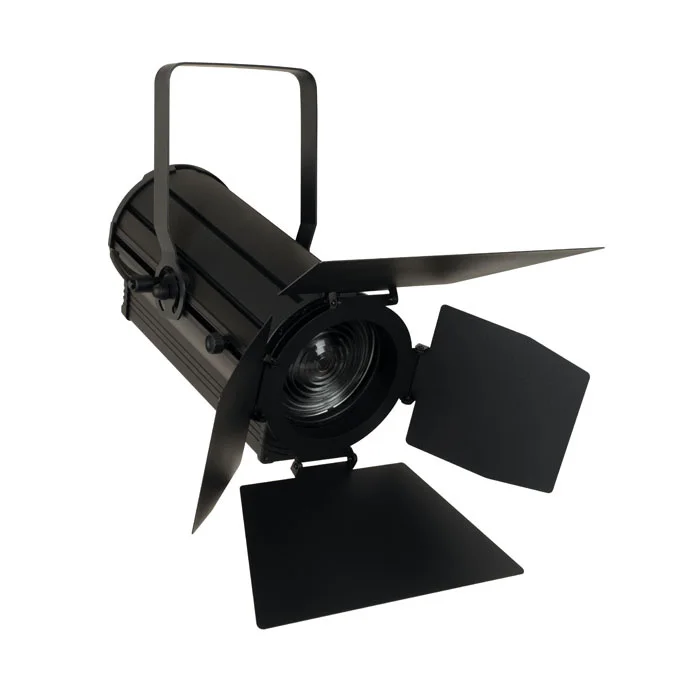

The Showtec ACT Fresnel 150 RGBAL is a compact 150-watt RGBAL COB LED Spot with high CRI (>90) and silent operation, suitable for theatrical applications, museums, and exhibitions. It uses a 280 W RGBAL light source to optimise the colour output, allowing you to create a wide gamut of colours while maintaining a high CRI. It projects a bright, soft beam of light within a wide, manually adjustable zoom range of 14°-36°. The ACT Fresnel 150 RGBAL can be controlled via DMX, RDM, and it is equipped with two knobs for manual colour and dimmer control. It is supplied with a barndoor and filter frame, allowing you to shape its output.

Technical specifications
Light Source Type: LED
Light Source Quantity: 1
Light Source Power: 280 W
LED Colour Type: RGBAL
Light Source System: COB
Luminous Flux (Total): 2355 lm
CRI: 93
Minimum CCT: 2700 K
Maximum CCT: 10000 K
Zoom Type: Manual
Zoom Minimum: 14°
Zoom Maximum: 36°
Control Mode: DMX / Manual
DMX Channels: 5 / 8 / 12
Protocols: DMX
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 176 W

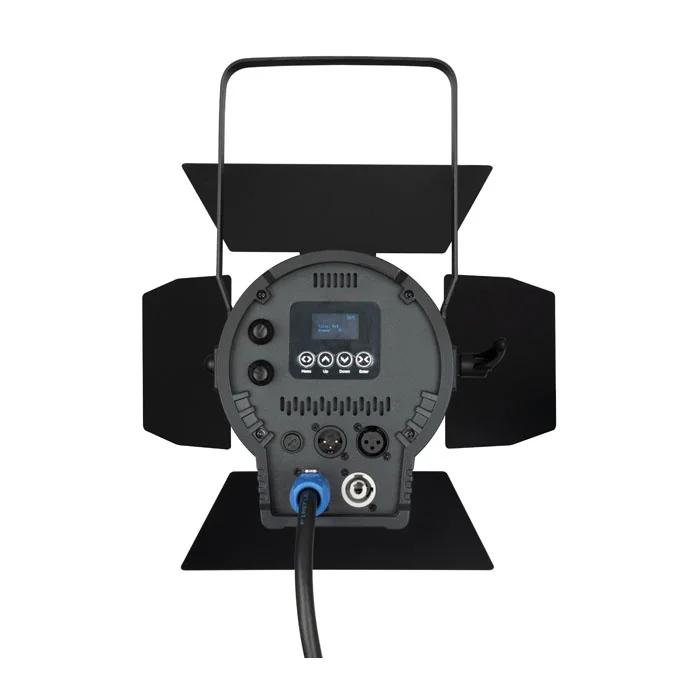

Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/Out
Length (mm): 362 mm
Width (mm): 220 mm
Height (mm): 343 mm
Weight: 5.9 kg
IP Rating: IP20 (indoor use only)
Material: Aluminium
Housing: Aluminium
Colour: Black
