Showtec | 30749 | Edison Bar E6 | DMX LED dimmer with 6x E27 Socket

The Showtec Classic series offers a wide range of conventional cans, LED PAR units and LED Pinspots suitable for indoor venues. Each parcan size, from the small Parcan 16 to the Parcan 64, is available for LED and conventional lighting and available in either black and silver (polished). Short Parcans are compact in size and fit ideally on stages and as floorspot, while long Parcans are intended for long-throw applications. The beam angle of Showtec Classic fixtures are ranging from a narrow 3.2° to a wide 90° beam angle with optional or included Warm White, Cool White or (RGB + W or A) coloured output.

The Warm-On-Dim fixtures are Parcans that include a 3000 K WW LED engine with triac dimming, high CRI (>95) for accurate WW colour rendering and silent, fanless operation. The Studio Beams are Parcans suitable for conventional lighting with four different lenses, ideal for exhibitions and commercial lighting solutions. Pinspots have a narrow beam angle, so they are ideal for illuminating small objects and mirror balls.

Each projector offers multiple control options and have included or optional accessories for extending or improving functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

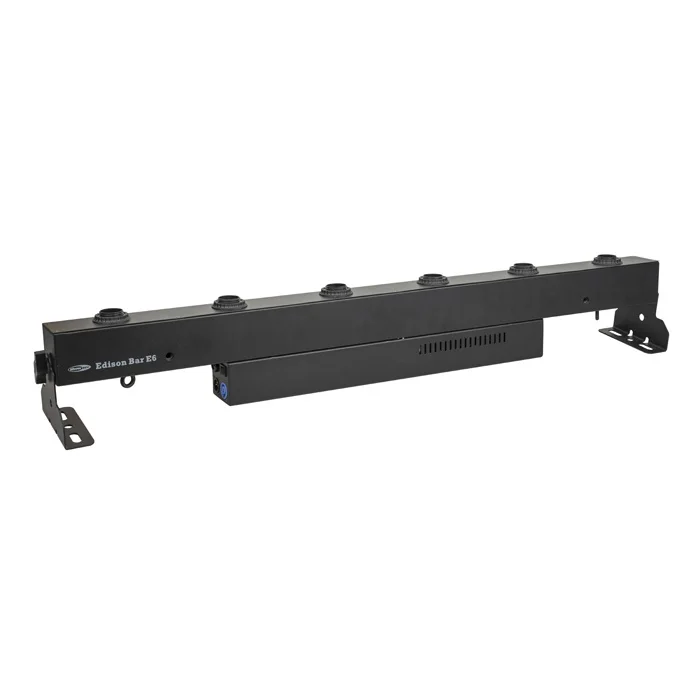

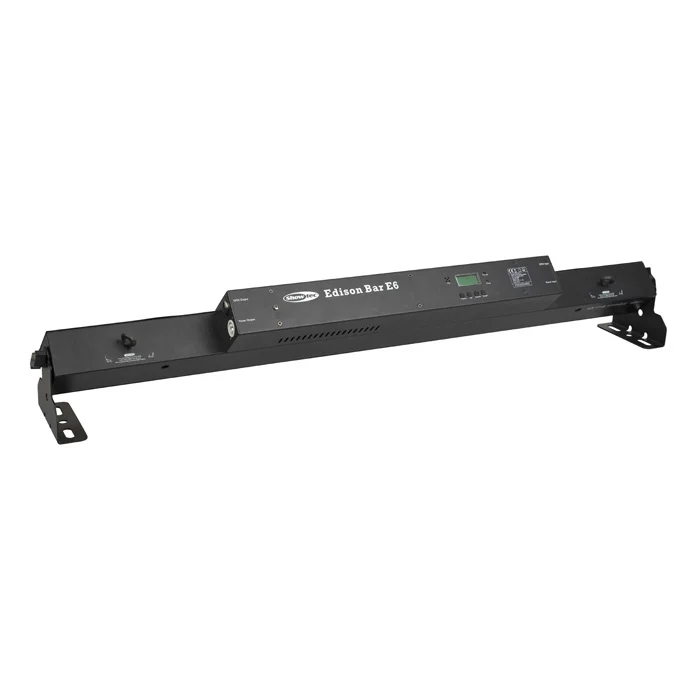

The Showtec Edison Bar E6 is a DMX LED dimmer with 6 x E27 socket fit for six LED light sources up to 8 watt, suitable for indoor venues. Its output can be controlled manually and via DMX in either Manual, Auto run and Sound-controlled mode with many available built-in programs. The Edison Bar E6 comes with mounting brackets for quick rigging on stage. An extension cable and a variety of design light bulbs are optional.

Technical specifications
Light Source Quantity: 6
Light Socket: E27
Number of Sockets: 6
Control Mode: Built-in Program / DMX / Manual / Sound
DMX Channels: 1 / 6
Protocols: DMX
Power Supply: 220-240 V AC 50 Hz
Power Consumption: 130 W
Power Connector In: Power Pro Blue
Power Connector Out: Power Pro Grey
DMX Connector: XLR 3P In/Out
Length (mm): 1041 mm
Height (mm): 170 mm
Width (mm): 135 mm
Weight: 5 kg
IP Rating: IP20 (indoor use only)
Material: Metal / Plastic
Housing: Metal
Colour: Black
