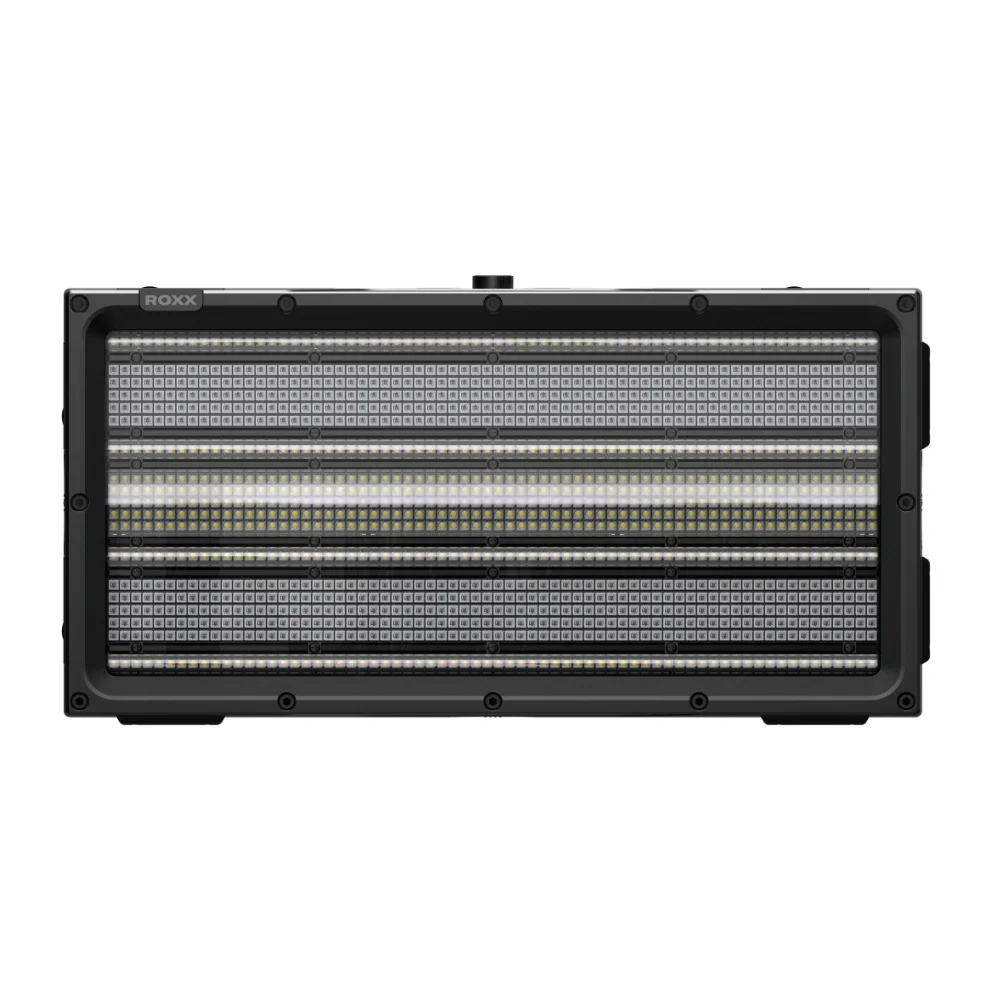

ROXX | 13305001 | Cluster S2 | hybrid strobe | blinder | pixelmapper | wash

ROXX | 13305001 | Cluster S2 | hybrid strobe | blinder | pixel-mapper | wash

The S2 is an advanced pixel-mappable strobe and washlight that combines two complementary effects in one unit, designed for extremely powerful and versatile applications.

Tool-free coupling

Thanks to its advanced and tool-free coupling mechanism, the ROXX S2 can be combined with all products in the CLUSTER series to offer lighting designers new creative possibilities in horizontal and vertical configurations and is suitable for small and large venues and up to and including stadiums.

Preset patterns and texts

Featuring a wide range of built-in patterns, CLUSTER S2 offers users a quick and easy way to create stunning effects when a media server is not available, or when installation requires a quick fix.

Beam, frost and invisibility

ROXX also offers a wide range of magnetic, easy-to-apply accessory filters. The Blackface filter (Smoked Clear) is especially useful in TV applications, as it makes the devices visually disappear into the decor when switched off. The two elliptical filters shape the light beam vertically or horizontally with a frost effect, giving the user even more effect options.

• ROXX | 13907901 | CLUSTER FX Filterframe Ev | Elliptical Vertical
• ROXX | 13907801 | CLUSTER FX Filterframe EH | Elliptical Horizontal
• ROXX | 12908101 | CLUSTER FX Spacer The Spacer can be used to enhance the forst effect of the horizontal and vertical filters.
• ROXX | 13908001 | CLUSTER FX Filterframe Smoked Clear

ROXX CLUSTER S2 offers IP65 protection, ensuring perfect use in outdoor applications.

CLUSTER S2 - FEATURES

With THE ROXX Cluster system and individual LED lines AT equal distance from each other, continuous effects can be displayed moving across multiple units. In this way, the units merge both horizontally and vertically into a large whole. The 4 separate, thin strobe lines can also be used to display numbers, letters and images.

Versatile LED strobe

The concept of the CLUSTER 2 is built around three separately controllable elements:

• LED bar, 340 cold-white LEDs
  A central, wide LED bar with 340 cold-white LEDs intended for strobe applications. These can be controlled in 12 segments. It is a relatively wide beam with extremely high light output.

• LED bars with 340 RGB LEDs
  Two beams with RGB LEDs each consisting of 340 LED units; so a total of 680 LEDs. Each beam can be controlled in 6 segments.

• Sharp LED lines, 272 LEDs
  Four LED lines each consisting of 68 cold-white LEDs for strobe applications. The lines each have an elliptical lens. A total of 272 LEDs that can be controlled in 12 segments.
