Pea Soup | Phantom | CO2 Hazer | DMX Operation

The quietest, cleanest and most efficient hazer on the market

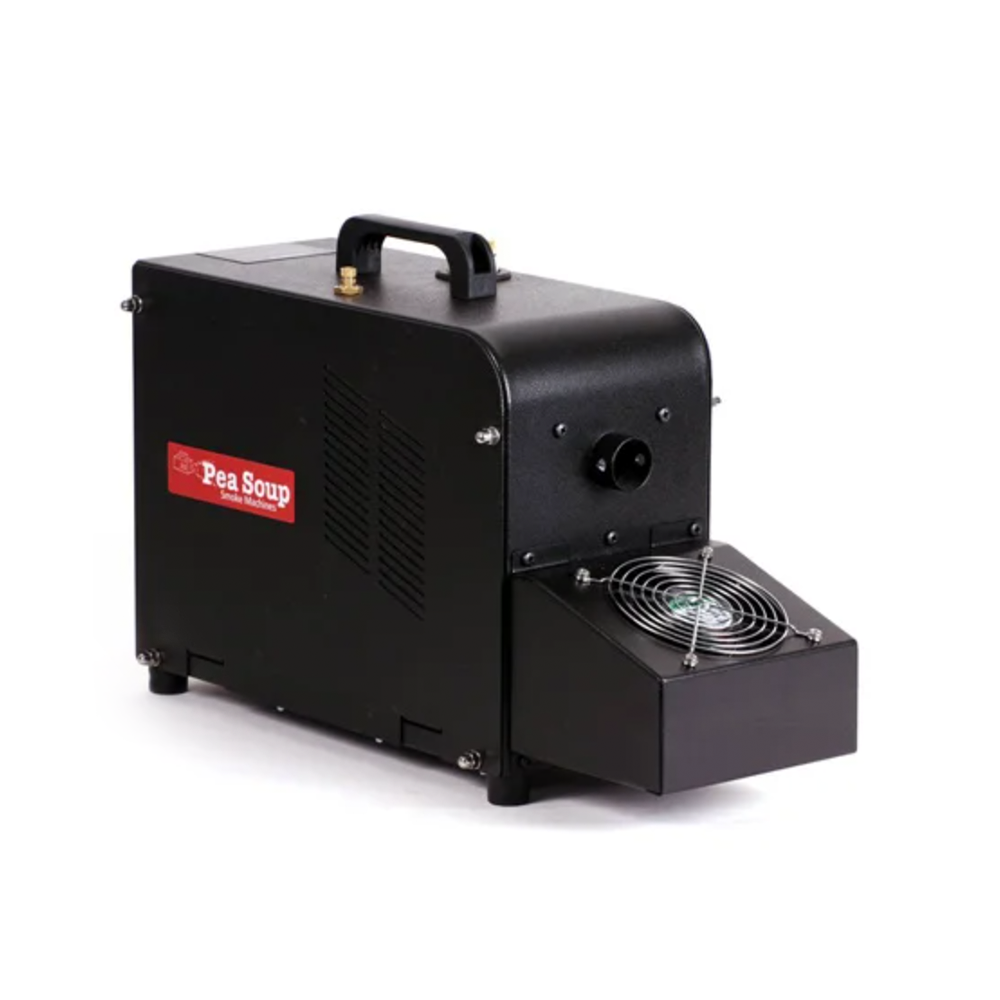

The Pea Soup Phantom CO₂ hazer is designed for professionals who want a long-lasting, even mist without visible vapour clouds or noise pollution. A unique atomisation technique keeps the tiny particles suspended in the air for long periods of time, allowing you to create a consistent atmosphere for light and laser projections. This hazer is also designed for minimum maintenance and maximum ease of use, both in fixed installations and mobile applications.

Ultra-fine mist for maximum effectiveness

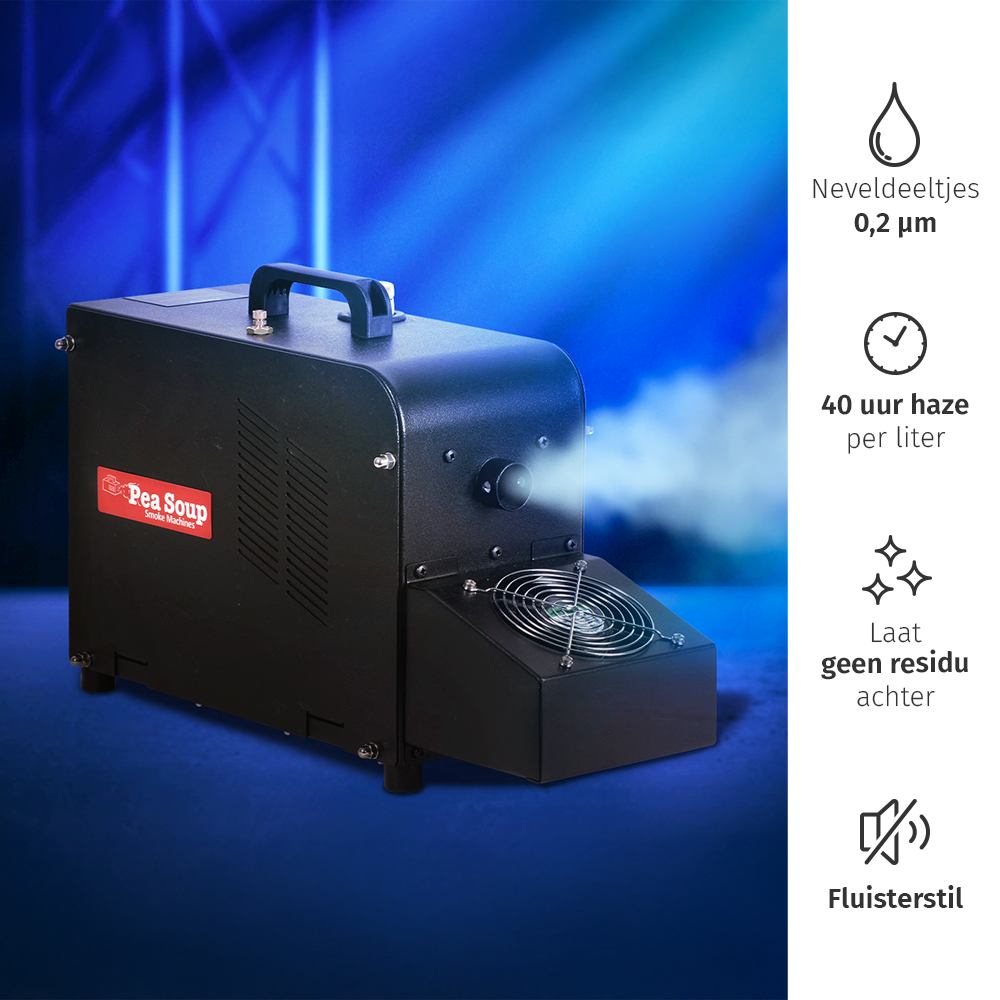

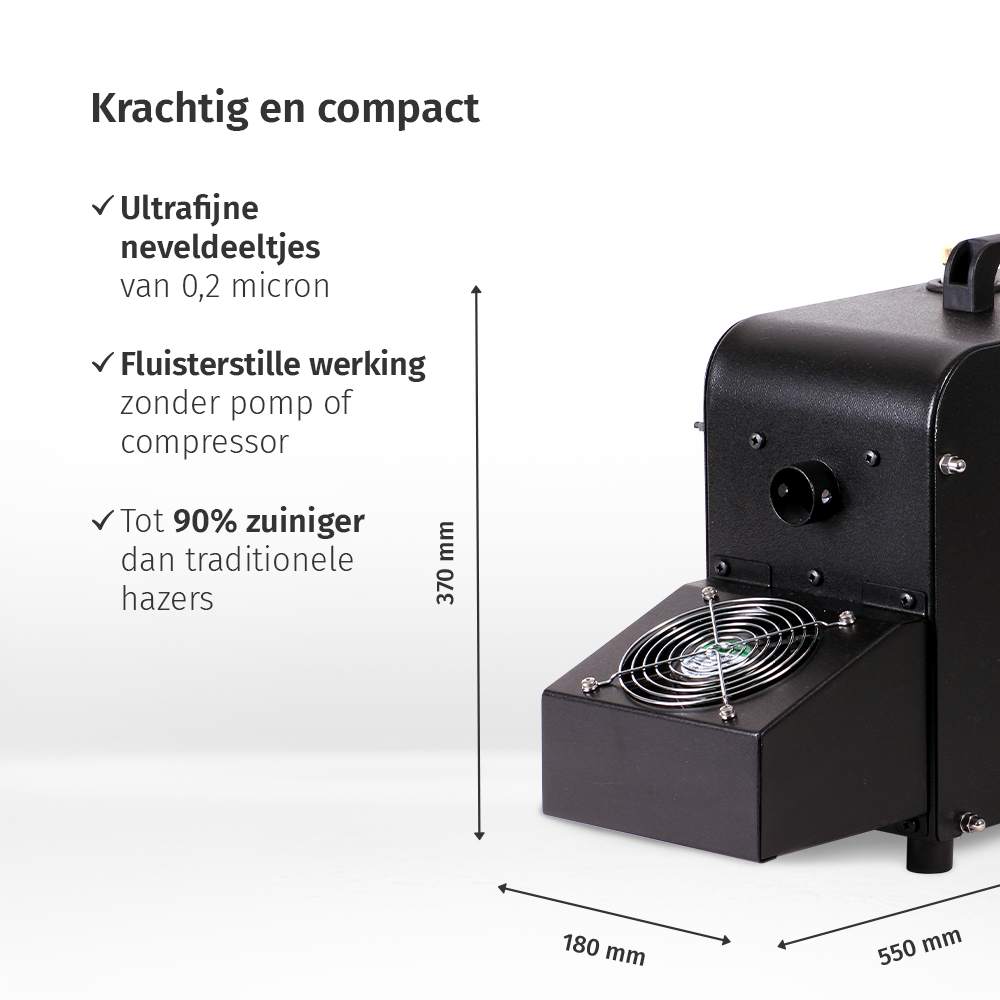

The Phantom's strength lies in its precision. With a particle size of just 0.2 microns, this hazer produces a virtually invisible mist that only becomes visible when light shines through it. The technology behind this fine-mesh mist makes all the difference: it ensures that the haze spreads evenly in the room without disturbing accumulations. This makes it ideal for accentuating beams of light, lasers and other visual effects without filling the room with large clouds of vapour. This keeps your scene clean, controlled and aesthetically pleasing.

Whisper-quiet operation and minimal maintenance

The Phantom operates without a pump or compressor, resulting in virtually silent operation. This is essential for noise-sensitive environments such as theatres, museums and recording studios. In addition, the system cleans itself after each duty cycle, preventing oil residues and giving the heater block a lifetime guarantee against clogging or failure. This not only saves on maintenance costs, but also ensures consistent performance.

Efficient fluid consumption and environmentally friendly

The Phantom uses food-grade oil, which is atomised under CO₂ pressure into microscopic particles without any combustion, or harmful residues. With a consumption of only 0.2 litres per 8 hours, this hazer is extremely economical, which is both cost-saving and environmentally friendly. Compared to traditional hazers, liquid consumption is up to 90% lower, without compromising on effectiveness. This saves not only on purchase costs, but also on liquid transport and storage.

Pluses and minuses

Positives

Ultra-fine mist particles (0.2 microns) for an even, long-lasting mist;
Whisper-quiet operation without pump or compressor;
Self-cleaning system prevents oil residues and extends service life;
Extremely economical fluid consumption (0.2 litres per 8 hours);
Food Grade medical grade oil for a clean, safe mist.

Downside

Higher initial investment compared to standard hazers;
CO₂ bottle requires periodic replacement and handling.

Flexible control and expansion options

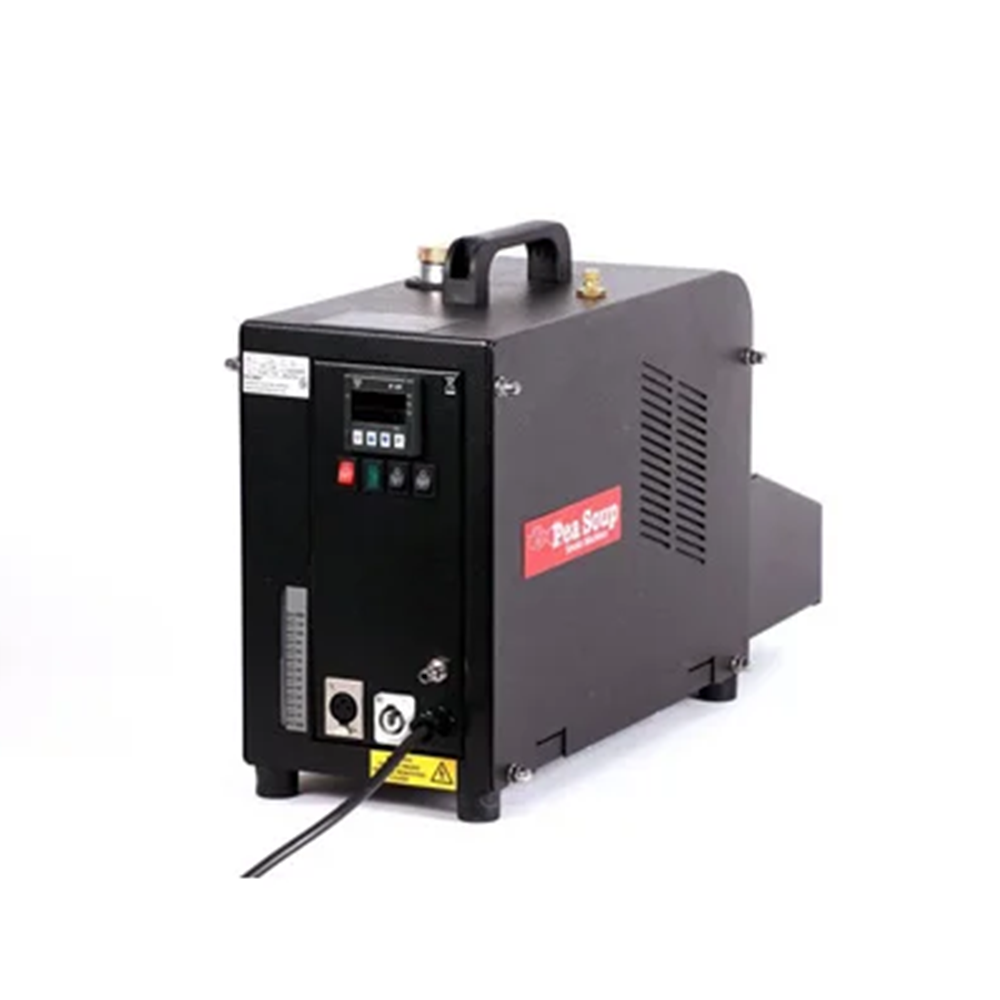

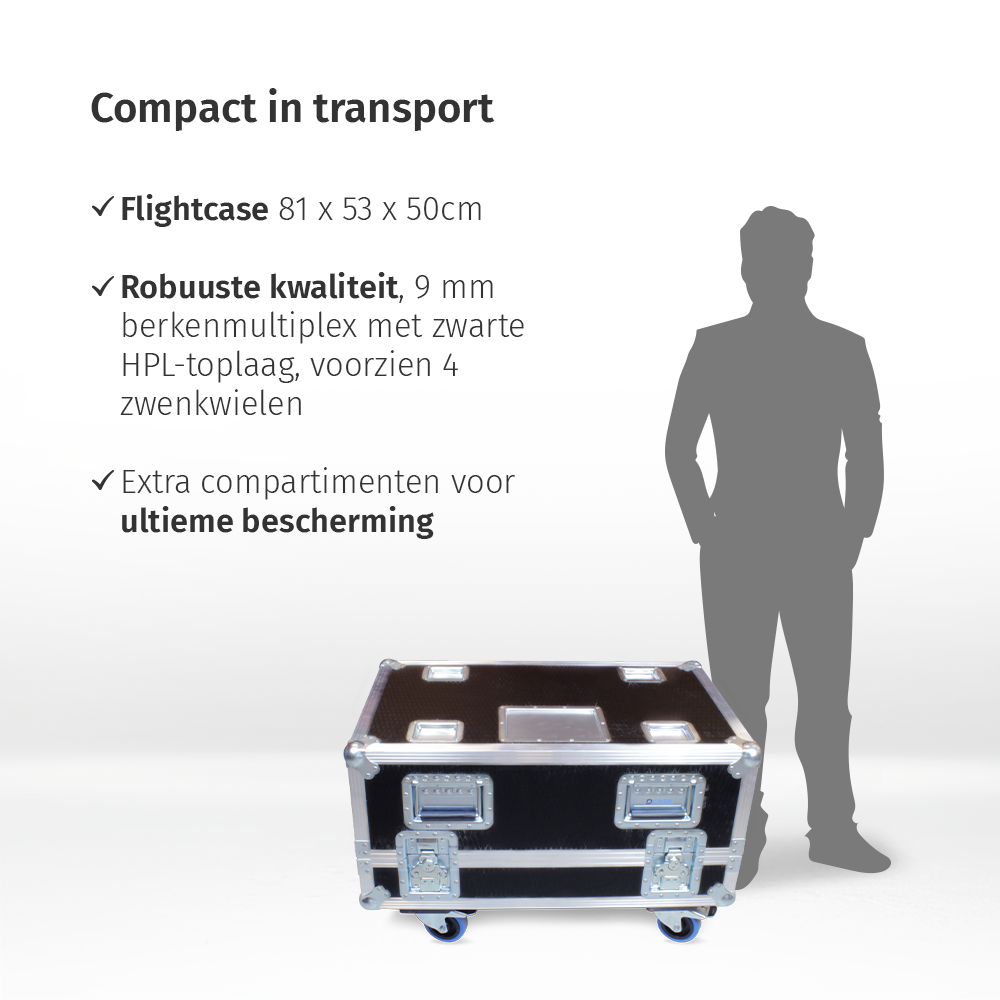

The Phantom is equipped with a remote control as standard. The PS49DMX also comes standard with DMX control for integration into advanced light shows and a fan for targeted mist dispersion. In addition, accessories such as a flight case for safe transport are available. This flexibility makes the Phantom suitable for a variety of applications, from fixed installations to mobile productions.

Robust construction and reliable performance

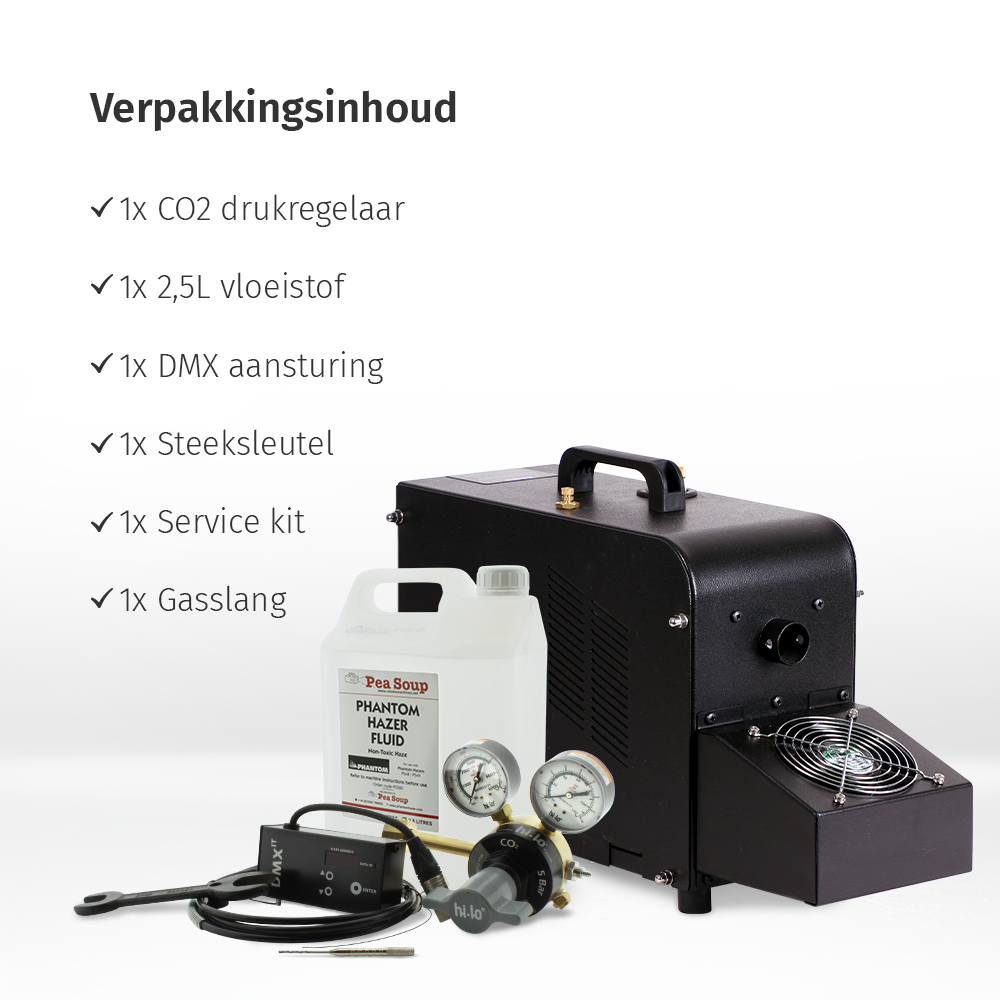

With a solid housing and high-quality components, the Phantom is built for long-term and intensive use. The hazer has a warm-up time of only 4 minutes and an average power consumption of 60 watts per hour, with a peak of 1,100 watts. The internal liquid tank has a capacity of 2.5 litres, sufficient for prolonged sessions without refilling. Moreover, the hazer comes with a CO₂ low-pressure regulator and a CO₂ gas bottle connection for easy installation.

Summary of specifications

• Particle size: 0.2 microns
• Spray hang time: 3-4 hours
• Fluid consumption: 0.2 litres per 8 hours
• Warm-up time: 4 minutes
• Power consumption: 60 watts average, 1,100 watts peak
• Fluid tank capacity: 2.5 litres
• Weight: ±14 kg (without liquid and CO₂)
• Control: Remote control, or DMX
• Warranty: Lifetime warranty on heater block, 10 years on other parts

Applications

• Theatre and film productions
  Create a subtle, long-lasting haze that accentuates light beams without disturbing clouds of smoke.
• Live events and concerts
  Fill large spaces with an even mist for impressive visual effects.
• Museums and exhibitions
  Create an atmospheric ambience without residue or noise pollution.
• Television and recording studios
  Enjoy whisper-quiet operation and a clean mist that does not affect equipment.

Conclusion

The Pea Soup Phantom CO₂-hazer is a top-of-the-range device that excels in efficiency, reliability and ease of use. With its ultra-fine mist, whisper-quiet operation and minimal maintenance, it is the ideal choice for professionals striving for perfect visual effects without concessions. Whether you have a theatre production, live event or studio project, the Phantom delivers consistent performance that exceeds your expectations.
