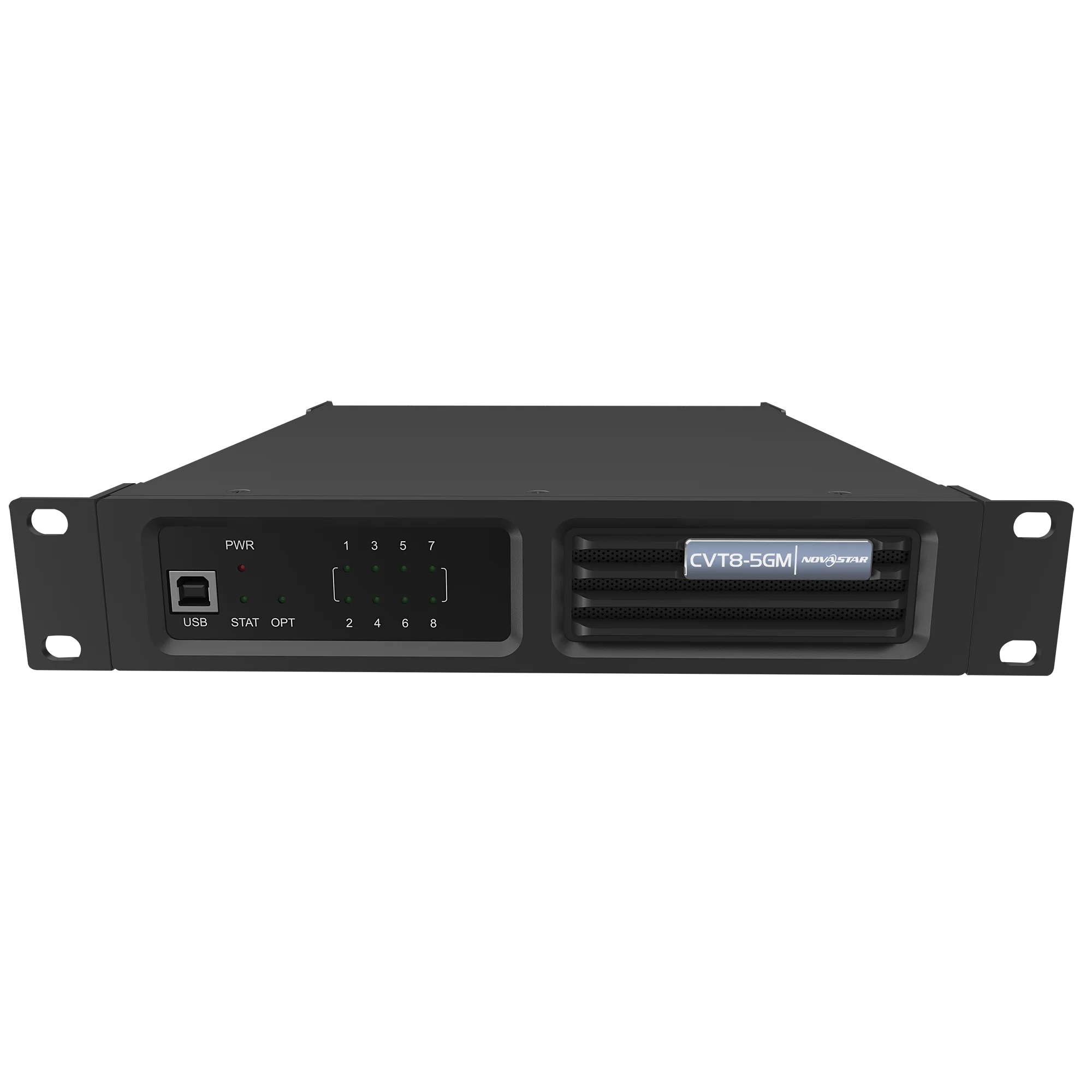

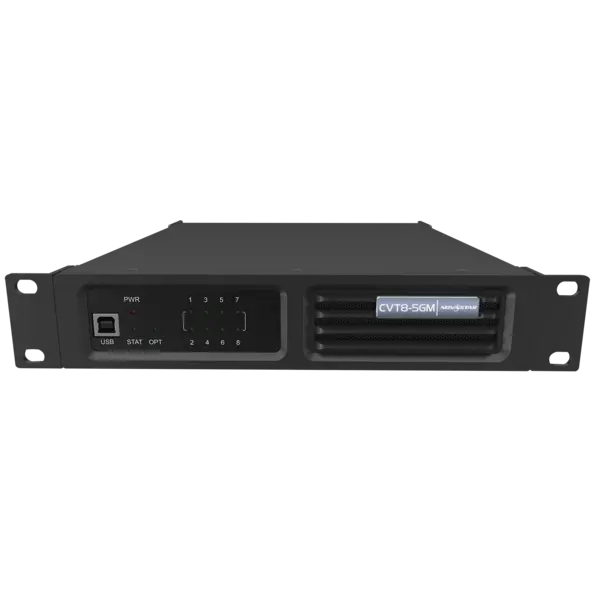

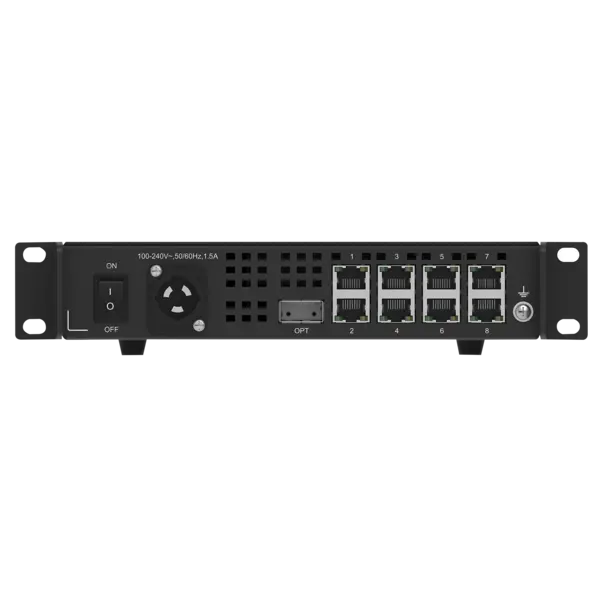

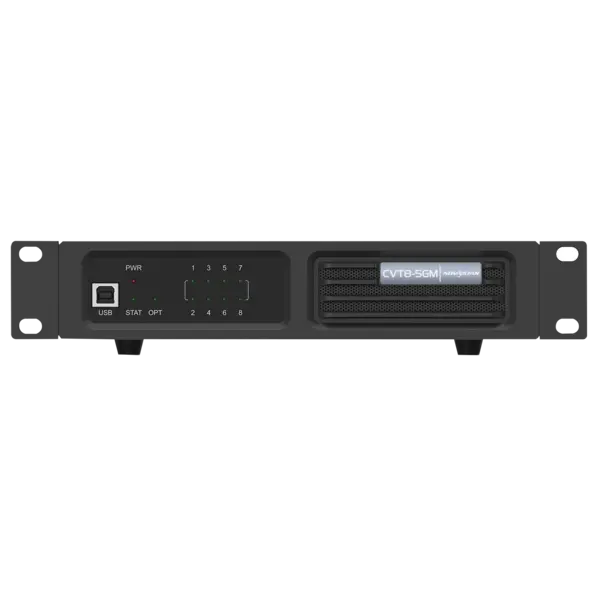

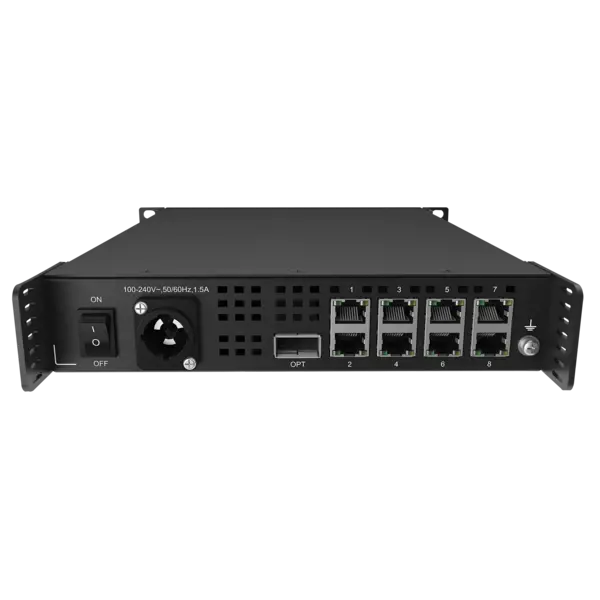

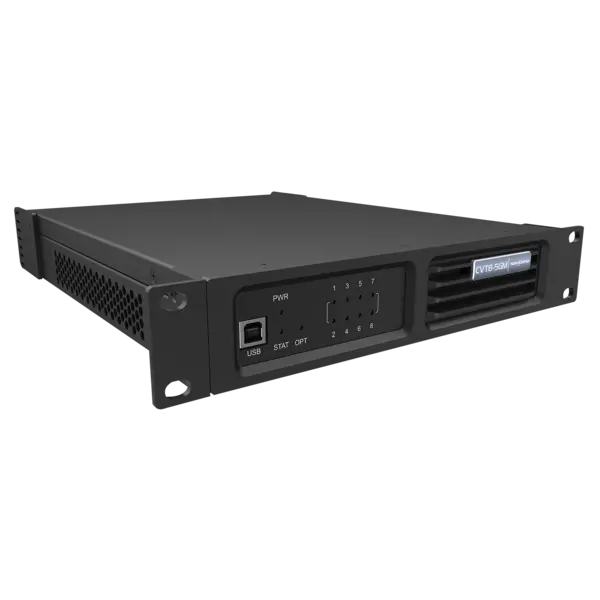

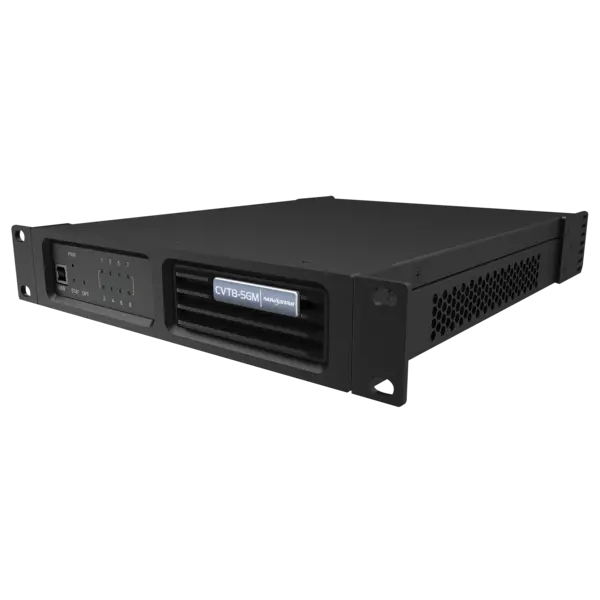

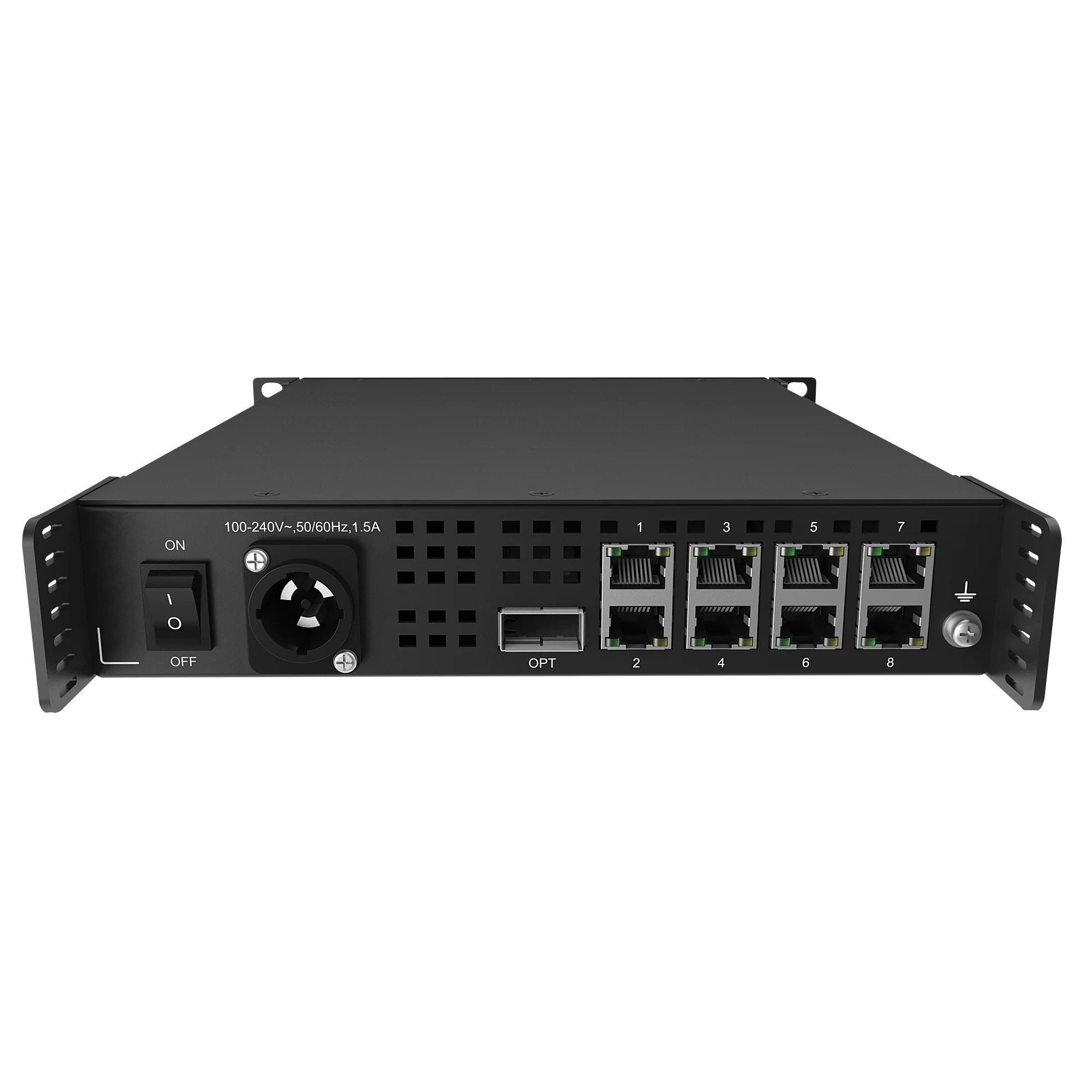

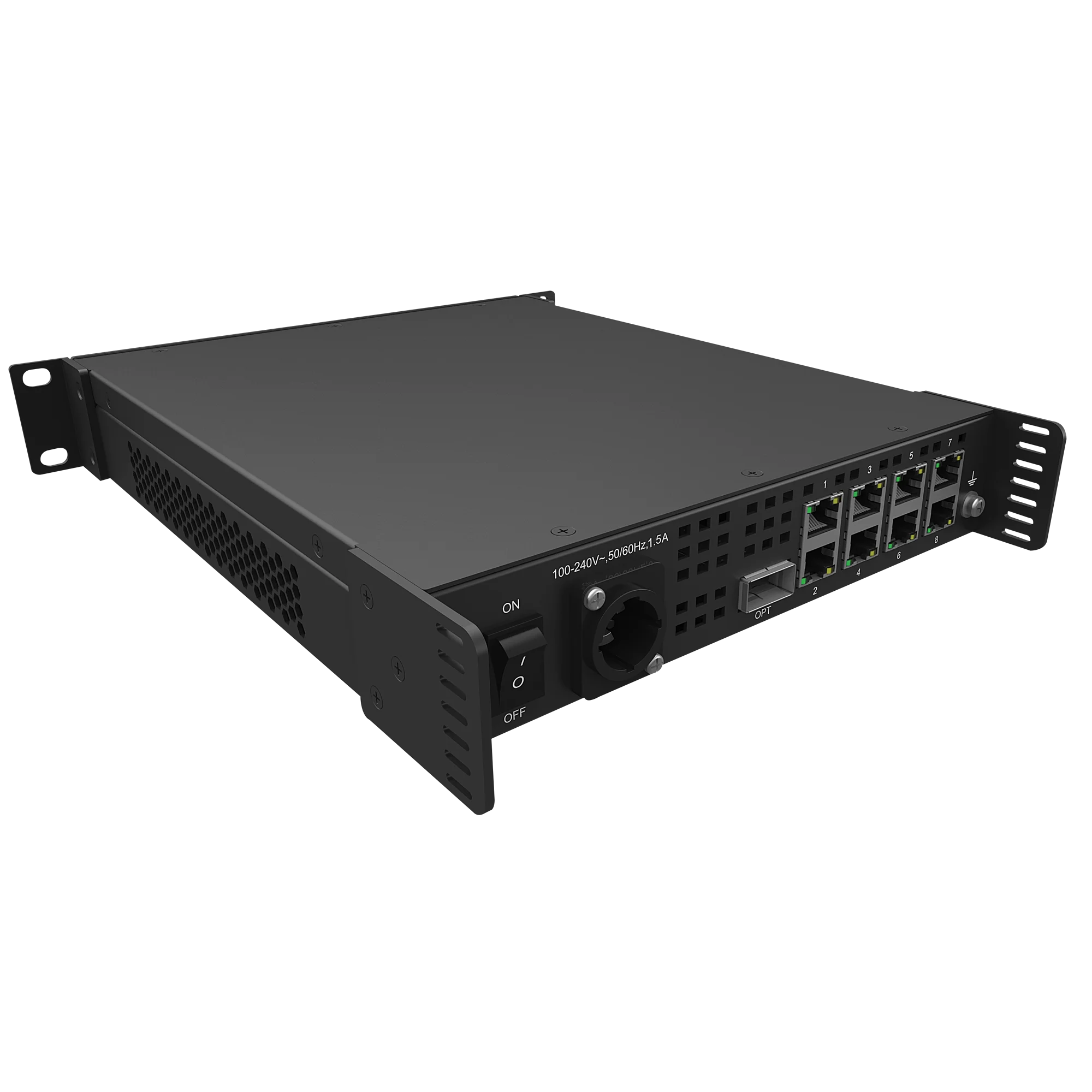

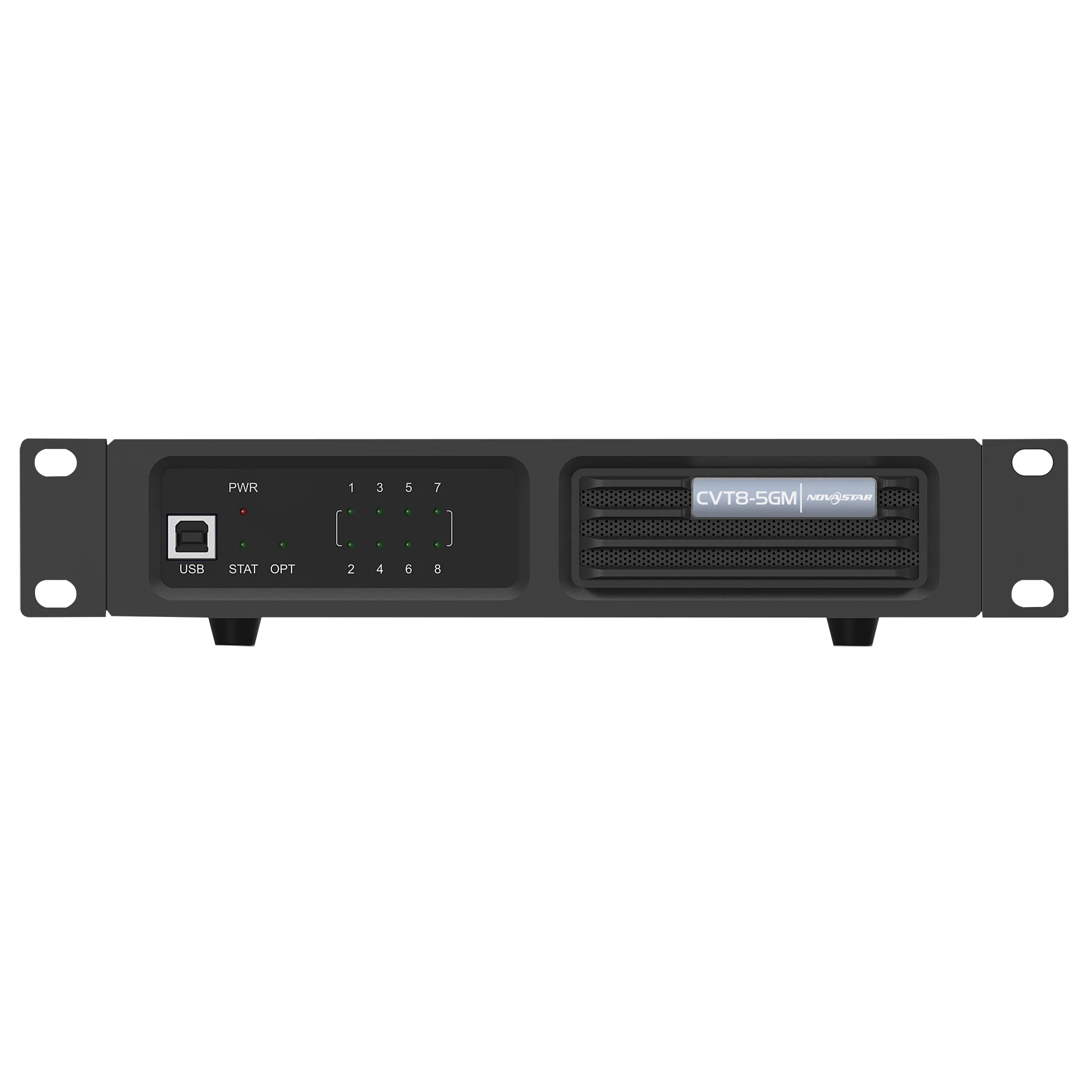

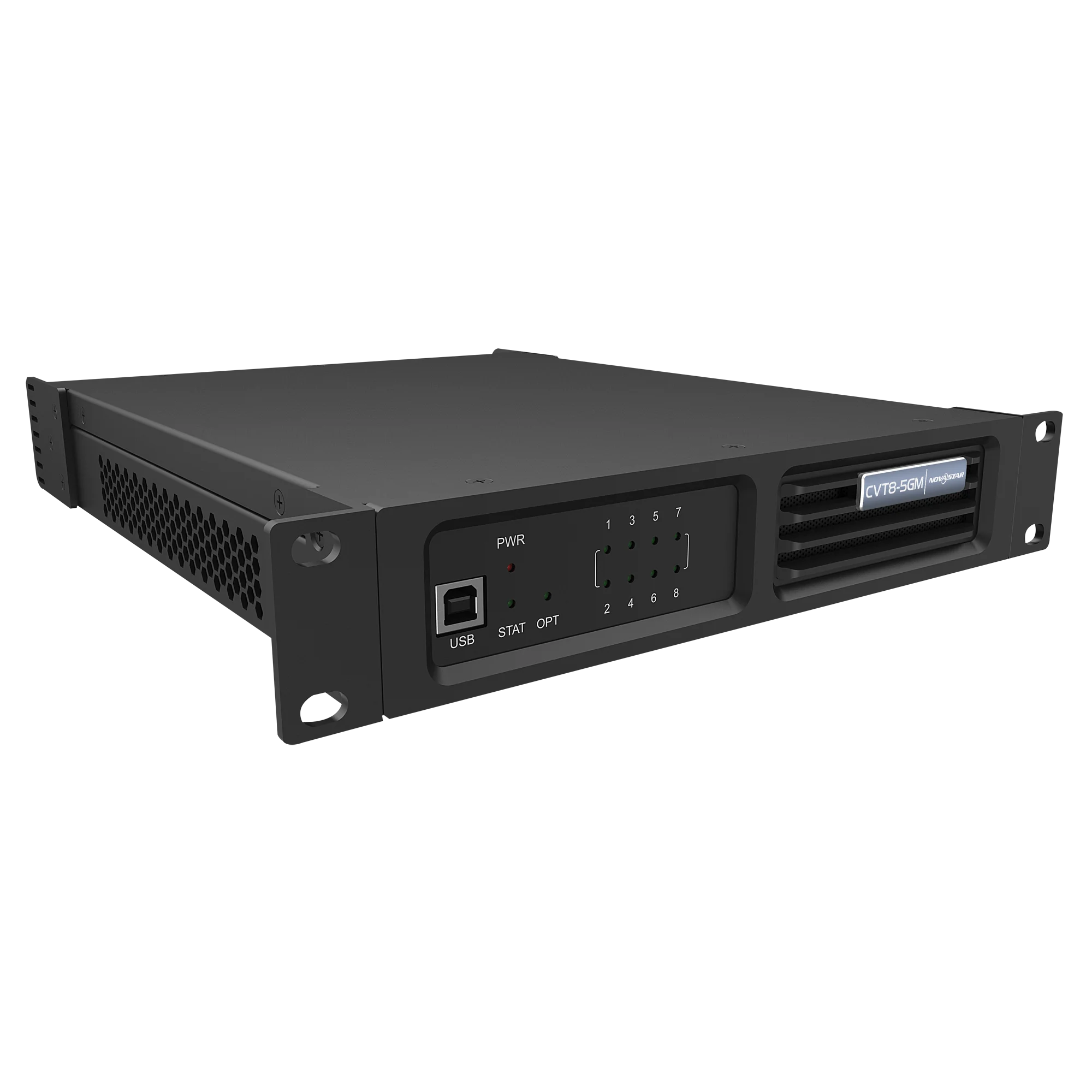

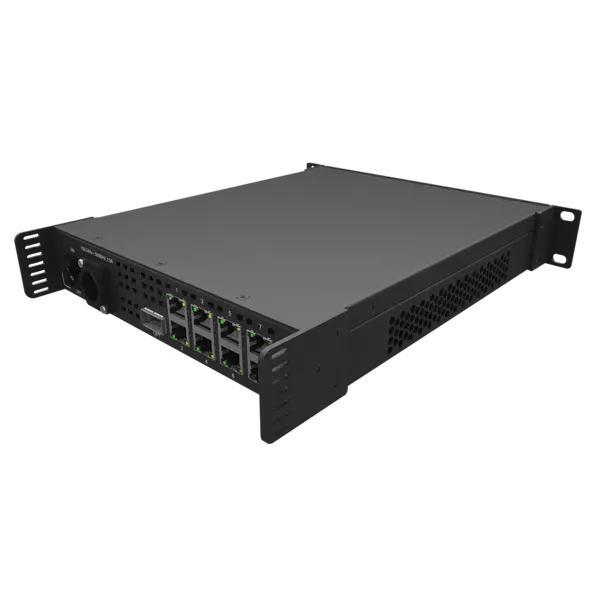

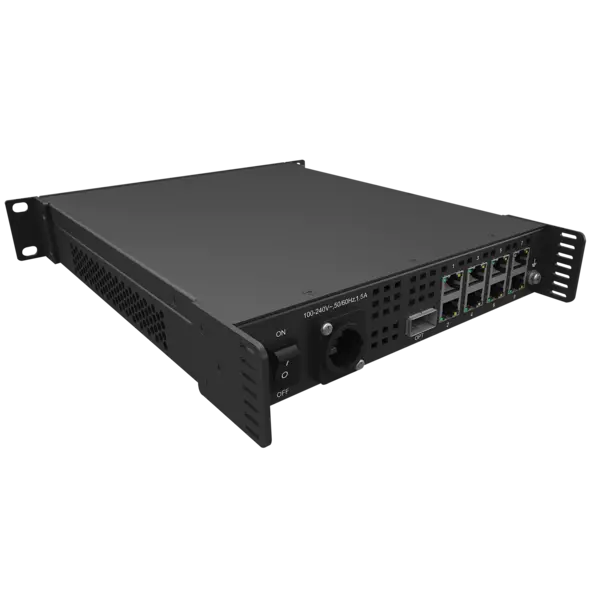

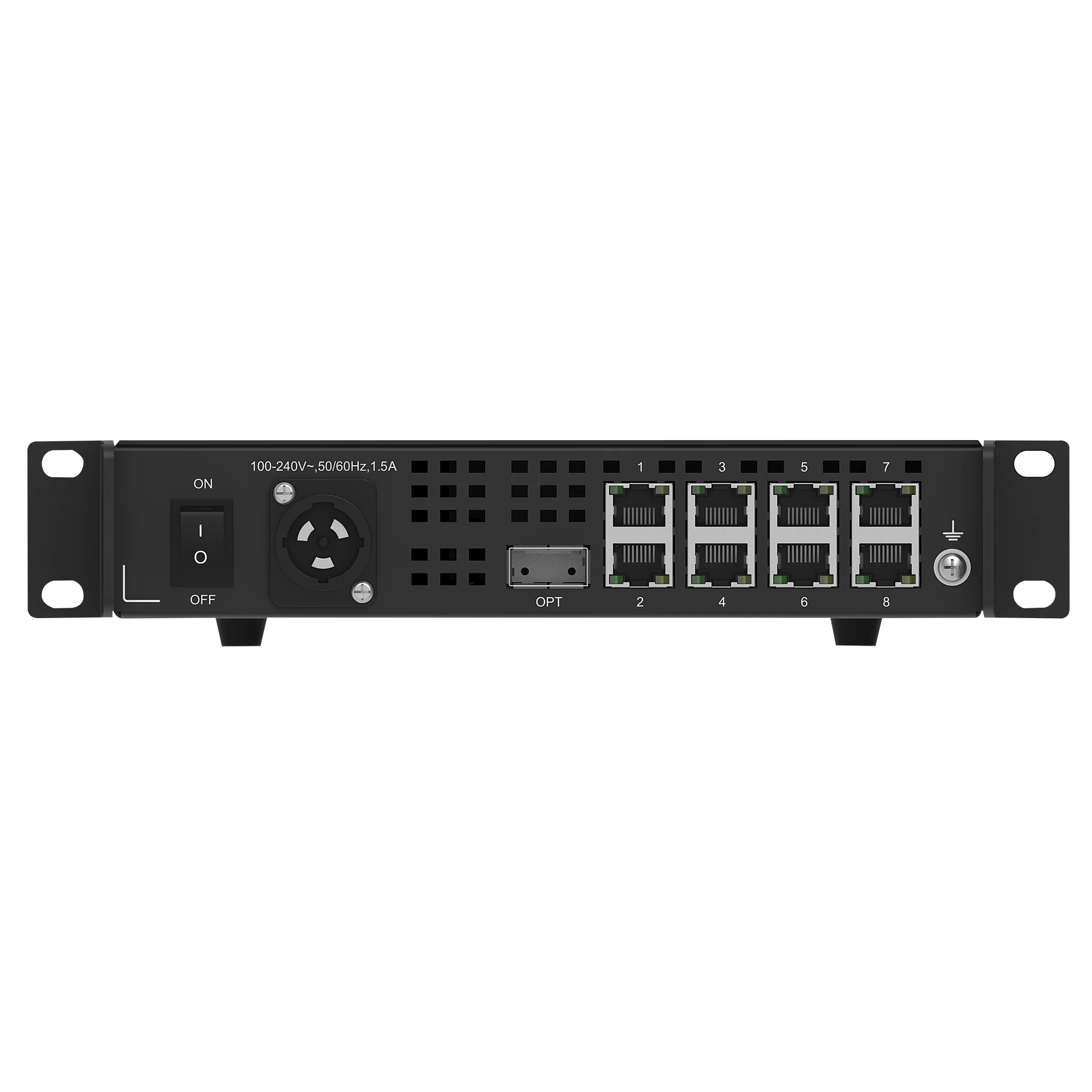

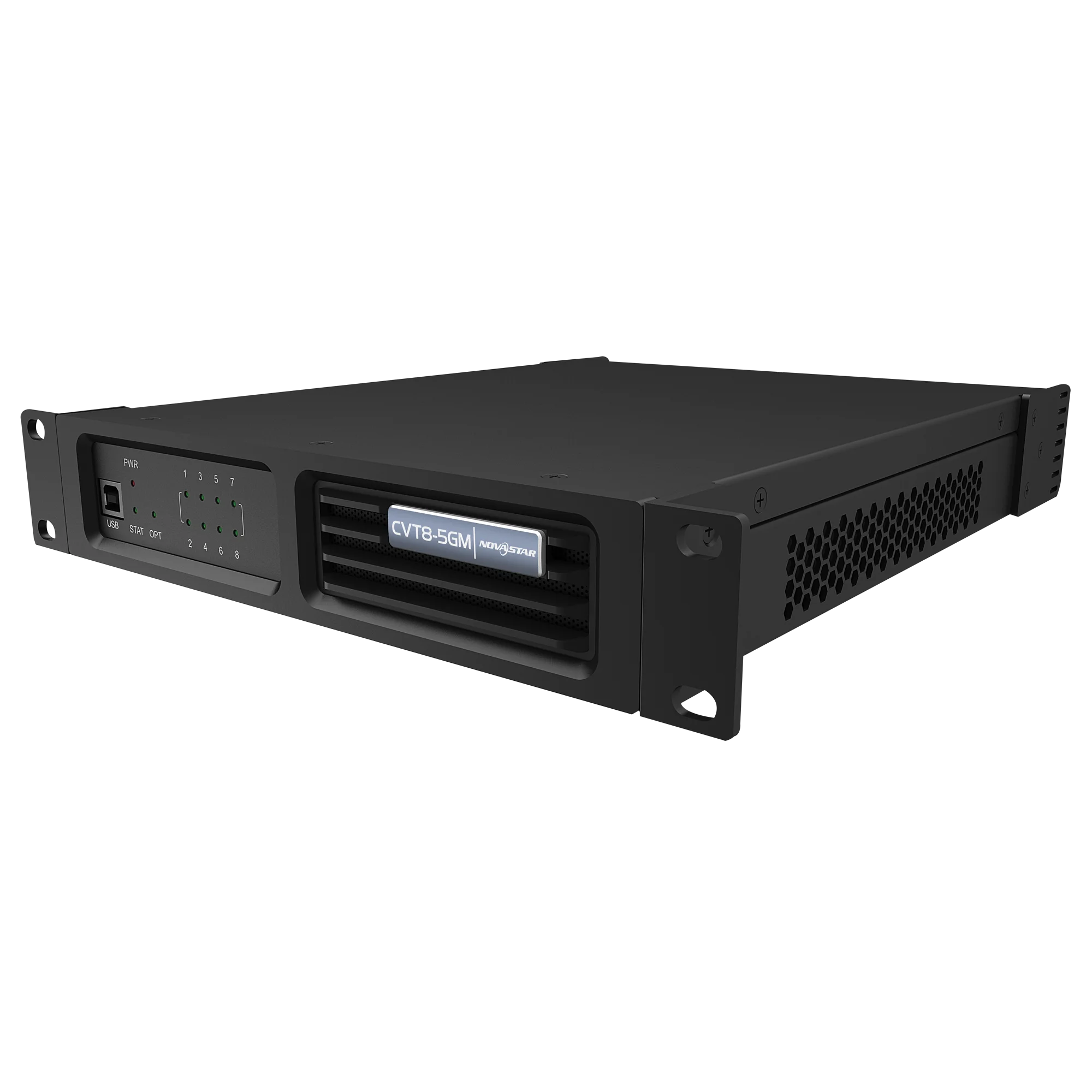

Novastar | 101596 | CVT8-5G-M | Fibre to 8x 5G Ethernet converter

The Novastar CVT8-5G-M is a cost-effective long distance transmission solution for large LED screen applications. It converts a fibre cable into up to eight 5G network signal cables. Its design enables you to install it easily, securely and reliably in a 19-inch rack or case with a 1 unit height.
The CVT8-5G-M can only be connected directly to Novastar CX series processors that use the 5G platform, such as the Novastar CX 40 and CX 80.
The CVT8-5G-M comes with a power cord, USB cable, two 40G SFP (LC)modules, two supporting brackets, screws, 19” installation kit and assembling diagram.

Technical specifications
Main Outputs: 8
SFP Slot Type: 40G
SFP Slot Quantity: 1
SFP Module Fibre Connector Type: LC
SFP Module(s) Included: Yes
Maximum Transmission Distance: 100 m
Power Supply: 100-240 V AC 50-60 Hz
Power Consumption: 33 W
Power Connector In: powerCON TRUE1
Data Connector In: USB B
Data Connector Out: RJ45
