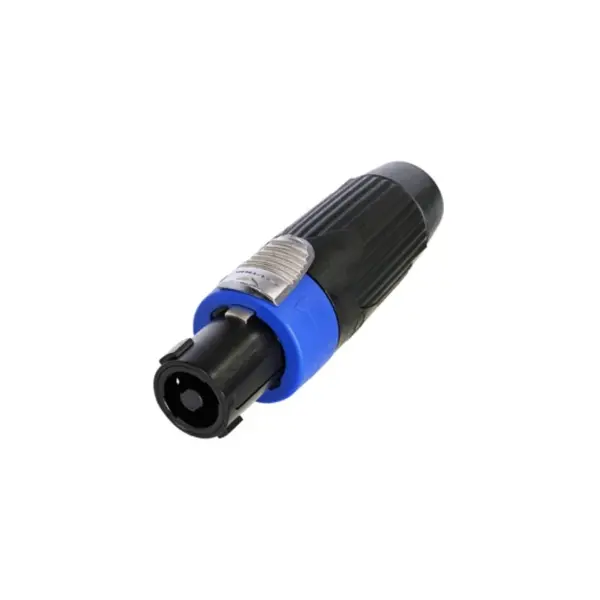

Neutrik | NLT4FXX-BAG | speakON 4-pole cable section female Touring black IEC62368-1

Neutrik | NLT4FXX-BAG | speakON 4-pole cable section female Touring black IEC62368-1

Product description:

The Neutrik NLT4FXX-BAG is a 4-pole female cable section with a tough black metal housing and a sturdy chuck-type strain relief. This connector fully complies with standard IEC 62368-1 thanks to the component's certification to IEC 61984.

The speakON STXX series is specially designed for heavy-duty applications in professional audio touring, such as amplifier-loudspeaker configurations. This extremely robust and durable STXX series is characterised by an all-metal housing.

Product Information:

• Title: NLT4FXX-BAG
• Gender: Female

Electrical Information:

• Contact Resistance: < 2 mΩ
• Dielectric Strength: 2.8 kVac
• Insulation Resistance: > 0.1 GΩ (after vapour heat)
• Rated Current per Contact: 30 A rms continuous
• Rated Voltage: 250 V AC
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical Information:

• Cable O.D. (Outer Diameter): 9 - 16 mm
• Lifetime: > 5000 mating cycles
• Wire Size:
  • 6 mm²
  • 10 AWG
• Termination: Solder contacts
• Locking Device: Quick Lock (latch)

Material Information:

• Contact Plating: Ag (Silver)
• Contacts: Copper Alloy
• Shell: Zinc diecast, black chrome plated
• Insert: Polyamide (PA 66)
• Locking Element: Zinc diecast, Ni plated
• Strain Relief: Polyacetal (POM)
• Shell Coating: Black KTL

Environmental Information:

• Temperature Range: -30 °C to +80 °C
• Flammability: UL 94 V-0
• Protection Class: IP 54 (mated condition)
• Solderability: Complies with IEC68-2-20
