Neutrik | NL8MD-V-BAG | speakON 8-pin chassis PCB-V black
Discover the Neutrik NL8MD-V-BAG: a high-quality 8-pole speakON chassis with PCB mounting in a stylish black finish. Perfect for professional audio applications. Order today for top-quality sound transmission and durability. Read more
Neutrik | NL8MD-V-BAG | speakON 8-pin chassis PCB-V black
Product description:

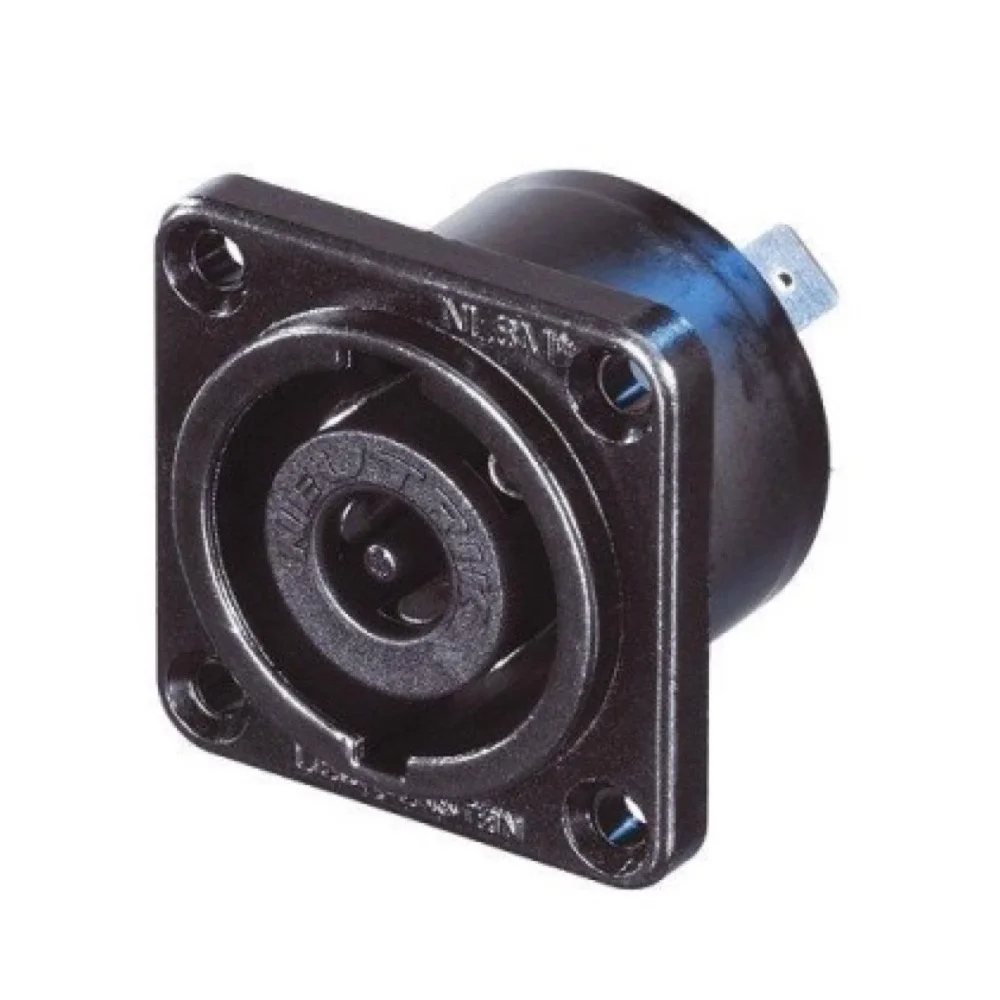

The Neutrik NL8MD-V-BAG is an 8-pole chassis connector with an elegant black chrome finish and a square G-size flange. This connector is specially designed for vertical mounting on a PCB (Printed Circuit Board). With its recessed mounting holes, it provides a sleek and stable connection for speakers and amplifiers.
SpeakON panel mount connectors are among the standard chassis connectors for speaker and amplifier interconnections. They feature a unique metal locking system that makes contact only when fully locked. SpeakON connectors are robust, versatile and easy to mount, making them the ideal choice for high-quality audio connections.
Product Information:
- Title: NL8MD-V-BAG
- Connection Type: speakON
- Gender: Male
Electrical Information:
- Contact Resistance: ≤ 3 mΩ (after lifetime)
- Dielectric Strength: 4 kVdc (peak)
- Insulation Resistance: > 1 GΩ (after vapour heat)
- Rated Current per Contact:
- 30 A rms continuous
- 40 A audio signal, duty cycle 50%
- Rated Voltage: 250 V AC
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical Information:
- Lifetime: > 5000 mating cycles
- Wire Size: Not specified
- Wiring: Vertical PCB mount
- Locking Device: Quick Lock
- Mounting Direction: Rear mounting
- Chassis Shape: Square G-size flange
- Layout: Four thru holes
Material Information:
- Contact Plating: 4 µm Ag (Silver)
- Contacts: Bronze (CuSn6)
- Shell: Polyamide (PA 6 30% GR) black chrome
Environmental Information:
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
