Neutrik | NL4MPRXX | speakON 4-pole chassis round tab 4.8x0.5mm IEC62368-1

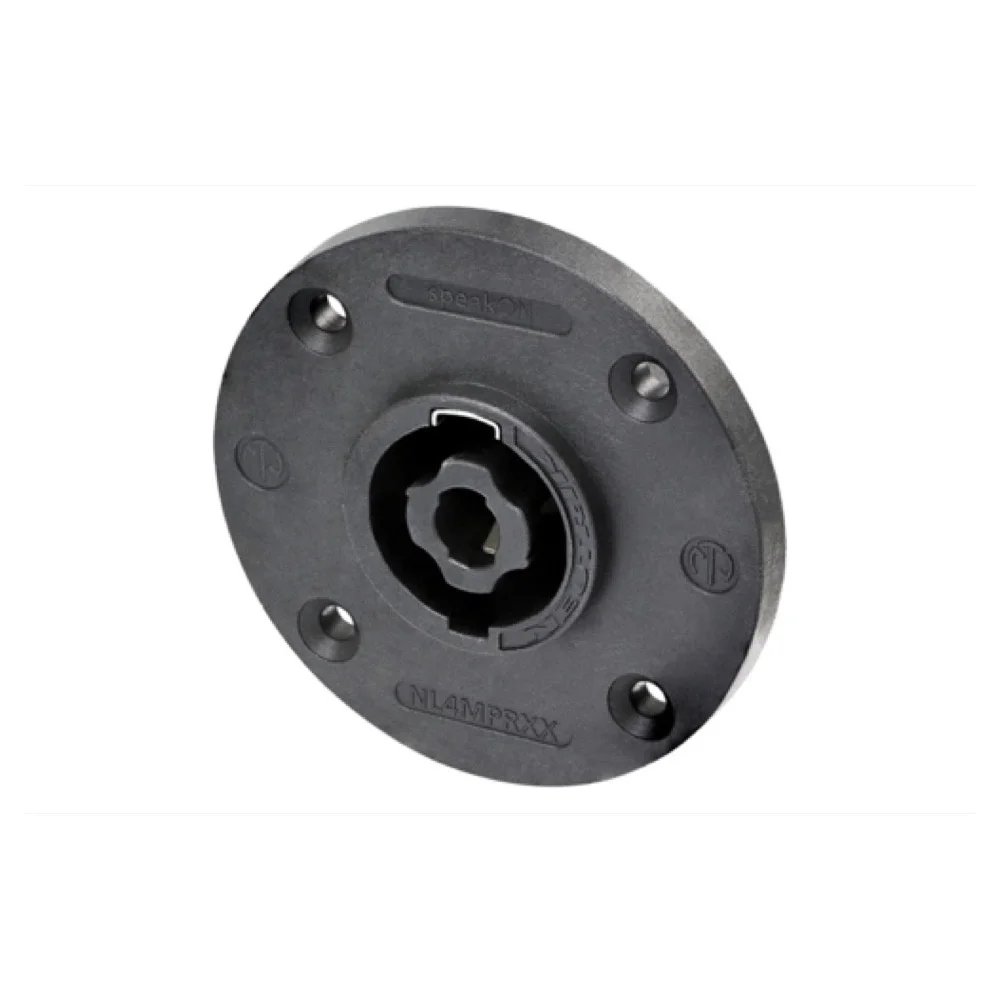

Neutrik NL4MPRXX | 4-Pin SpeakON Chassis Connector

Product description:

Increase the quality of your audio connections with the Neutrik NL4MPRXX 4-pole speakON chassis connector. This connector is fully compliant with the IEC 62368-1 standard thanks to component certification according to IEC 61984.

With a sleek black round G-size flange and countersunk through-holes, this connector comes with 3/16" flat tabs for easy installation.

The speakON panel mount connectors set the industry standard for speaker and amplifier interconnections. Their unique metal locking system ensures that contact is made only when fully locked, guaranteeing reliable connections. The speakON connectors are robust, versatile and easy to assemble.

Enhance your audio configuration with the Neutrik NL4MPRXX 4-pole speakON chassis connector - where quality and compliance meet innovation.

Technical information

• Title: NL4MPRXX
• Gender: Male

Electrical:

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 2.8 kVac
• Insulation resistance: > 0.1 GΩ (after damp heat)
• Rated current per contact: 25 A rms continuously (audio rating significantly higher, depending on signal)
• Rated voltage: 250 V AC
• Note: speakON must NOT be used as an AC power connection or power connector!

Mechanical:

• Lifetime: More than 5000 coupling cycles
• Connection: 3/16" flat tabs (e.g. NLFASTON)
• Locking mechanism: Quick Lock
• Chassis shape: Round G-size flange
• Layout: Four through-holes

Material:

• Contact plating: Silver (Ag)
• Locking element: Stainless steel
• Housing: Polyamide (PA 6.6)
• Contacts: Copper alloy

Environment:

• Flame resistance: UL94 V-0
• Temperature range: -30 °C to +80 °C
