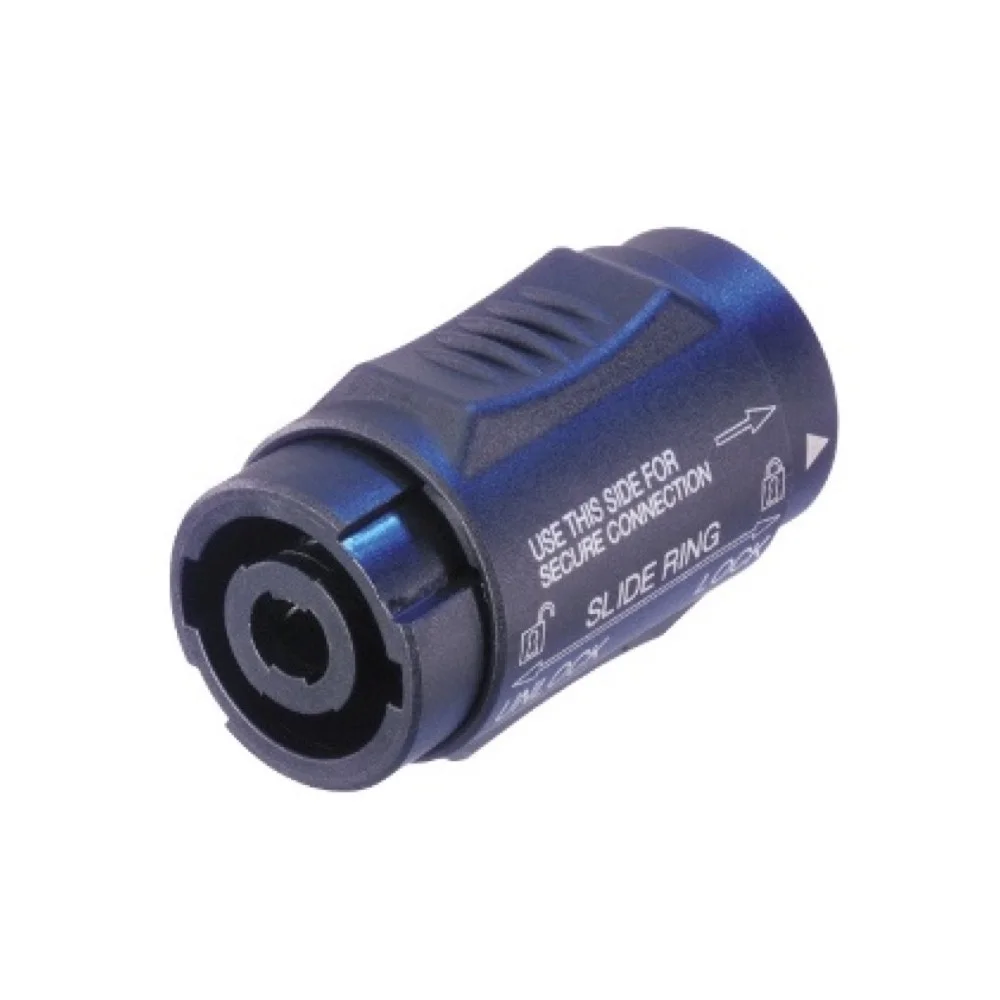

Neutrik NL4MMX | Lockable 4-pole SpeakON Coupling Adapter
Product description:
Optimise your sound setup with the Neutrik NL4MMX, a lockable 4-pole speakON coupling adapter. This adapter effortlessly connects two NL2/4F* connectors for cable extension. It changes the gender to male when permanently locked on the cable.
This adapter provides a permanent and secure connection on a speakON cable connector using a second lock. It can be permanently attached to an NL2/4F* connector for easy application.
Choose the Neutrik NL4MMX for reliable audio connections and flexibility in your sound system.
Product Information:
- Title: NL4MMX
- Gender: Male
Electrical Information:
- Contact Resistance: ≤ 3 mΩ (after lifetime)
- Dielectric Strength: 4 kVdc (peak)
- Insulation Resistance: > 1 GΩ (after vapour heat)
- Rated Current per Contact:
- 15 A rms continuous
- 30 A audio signal, duty cycle 50%
- Rated Voltage: 250 V (Insulation)
- Attention: NL4MMX should NOT be used as an AC mains or power supply connector!
Mechanical Information:
- Lifetime: > 5000 mating cycles
- Locking Device: Quick Lock
Material Information:
- Contact Plating: 4 µm Ag (Silver)
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6 30% GR)
- Shell: Polyamide (PA 6 30% GR)
Environmental Information:
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature Range: -30 °C to +80 °C
