Neutrik NE8FDP-R-B: Black right-angle etherCON Chassis-D RJ45 connector for professional audio and video networks. Durable, black design for reliable performance in confined spaces. Read more

Product description
Description

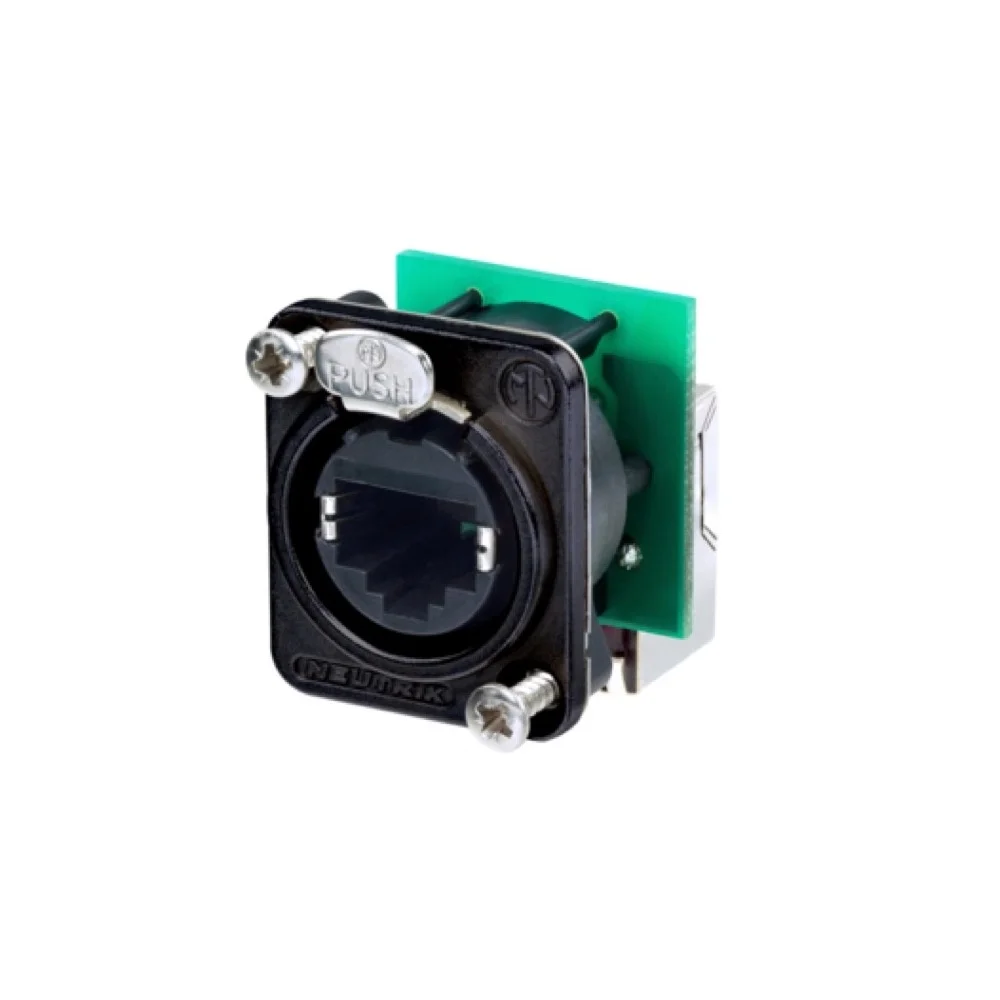

Neutrik | NE8FDP-R-B | etherCON chassis-D RJ45 angled black

Looking for a reliable solution for your pro audio, video and mains power applications? The Neutrik NE8FDP-R-B is your answer. This angled RJ45 conduit connector with a black D-shaped metal flange and locking mechanism offers durable performance and easy installation.

The etherCON series is known for its robustness and lockability, and the NE8FDP-R-B is no exception. With mounting screws included and specifically designed for panel mounting, it fits perfectly into standardised panels in the entertainment industry.

Important to note: the D-Series offers the most robust design within the etherCON series and is ideal for panel mounting and installers.

Features:
  • Suitable for pro audio, video and mains power applications.
  • Durable construction with D-shaped metal flange and locking mechanism.
  • Panel mounting with included screws.
  • Compatible with standardised entertainment industry panels.
  • High reliability with over 1000 torque cycles.
Technical Information:
  • Product Title: NE8FDP-R-B
  • Gender: Female

Electrical:

  • Contact Resistance: < 50 mΩ
  • Dielectric Strength: 1 kVdc
  • Frequency Range: 1 - 100 MHz
  • Insulation Resistance: > 0.5 GΩ
  • Rated Current Per Contact: 1.5 A
  • Rated Voltage: < 50 V
  • Transmission Performance: CAT 5e
  • Standard Compliance: TIA/EIA 586B, IEC 11801

Mechanical:

  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Panel Thickness: Max. 4 mm (0.16")
  • Wiring: Feedthrough
  • Locking Device: Latch Lock
  • Chassis Shape: D

Material:

  • Contact Plating: 0.2 µm Gold (Au) over Nickel (Ni) plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: Zinc Diecast (ZnAl4Cu1)
  • Shell Plating: Black Chrome

Environmental:

  • Flammability: UL 94 V-0
  • Temperature Range: -30 °C to +80 °C

With an easy-to-use locking mechanism and high-quality technical specifications, the Neutrik NE8FDP-R-B is the ideal choice for reliable network connectivity in demanding environments. Whether pro audio, video or light networking, this connector guarantees top performance.

Order the Neutrik NE8FDP-R-B today and enjoy durable and reliable network connectivity for your professional applications.

Note: Not compatible with CAT6 cable connector NE8MC6-MO and NKE6S cables.*
