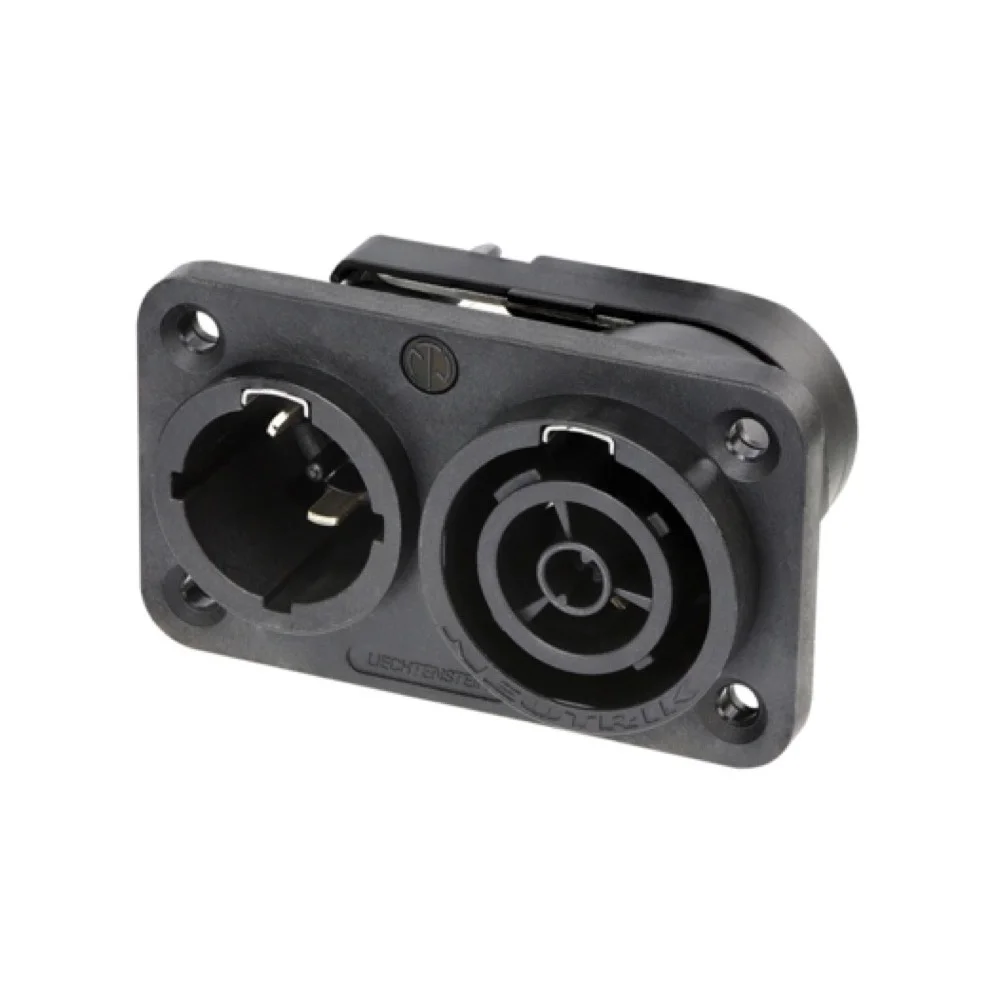

Neutrik | NAC3PX-TOP-SB | powerCON TRUE1 panel mount 2 pin + ground COMBI pin + socket TOP RETAIL

Neutrik | NAC3PX-TOP-SB | powerCON TRUE1 panel mount 2 pin + ground COMBI pin + socket TOP RETAIL

Upgrade your Power connectivity with Neutrik NAC3PX-TOP-SB powerCON TRUE1 Panel mount

Discover the power of reliable power connections with the Neutrik NAC3PX-TOP-SB powerCON TRUE1 panel mount. Designed for outdoor applications, this lockable 16A power connector offers a robust solution with locking mechanism, for secure power connection.

Key Features:

• Secure Outdoor Application: The powerCON TRUE1 TOP is suitable for various outdoor installations and replaces device connectors where a sturdy, lockable connection is required.

• Breaking Capacity (CBC): This connector features breaking capacity (CBC), which means you can safely connect and disconnect, even under load.

• Reliable Construction: With a lifetime of over 5,000 torque cycles and high-quality materials such as stainless steel and spring bronze contacts, this connector offers durable and consistent performance.

Upgrade your power connections with the Neutrik NAC3PX-TOP-SB powerCON TRUE1 panel mount and enjoy safe, reliable and durable power connectivity even in demanding environments.

Technical Specifications:

Electrical:

• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Resistance: > 1 GΩ (after vapour heat test IEC 68-2-30)
• Number of Electrical Contacts: 2 + PE
• Rated Current (EU ): 16 A at 250 V AC (EN 60320-1)
• Rated Current (USA ): 20 A at 250 V AC (UL 498)

Mechanical:

• Lifetime: Over 5000 mating cycles
• Wire Size: 2.5 mm² / 12 AWG

Material:

• Contact Plating: 2 µm Ag
• Locking Element: Stainless steel
• Housing: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

Environmental:

• Flame Resistance: UL 94 V-0
• Protection Class: IP65 in combination with sealing cap (mated or with closed cap)
• Temperature Range: -30 °C to +80 °C

Upgrade now to the Neutrik NAC3PX-TOP-SB powerCON TRUE1 panel mount for superior power connectivity in TOP RETAIL style. Experience reliable power connectivity like never before.
