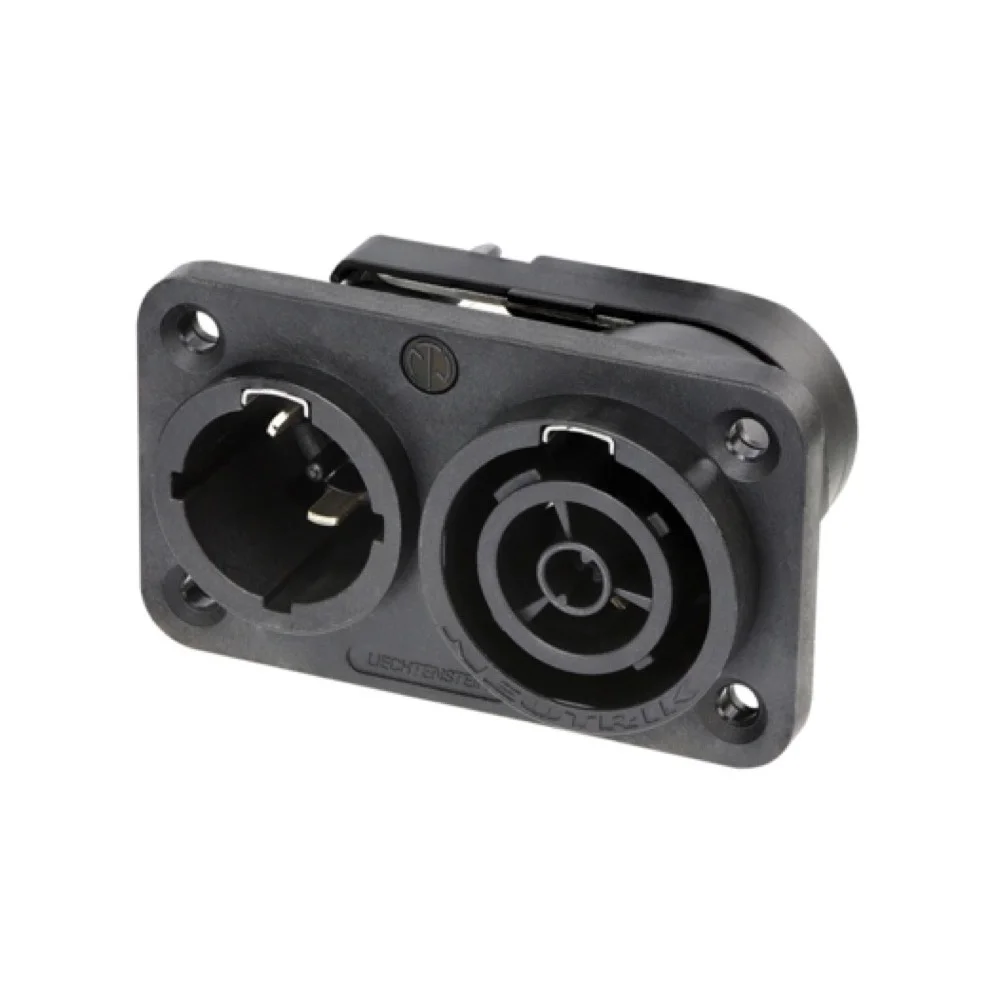

Reliable power connection with Neutrik NAC3PX-TOP powerCON TRUE1 panel mount

Upgrade your power connections with the Neutrik NAC3PX-TOP powerCON TRUE1 panel mount. This lockable 16 A power connector offers durable performance for outdoor applications and replaces device connectors where a robust solution combined with a locking mechanism is needed for a secure power connection.

Key Features:

• Secure Power Connection: Designed to lock power connections, the powerCON TRUE1 TOP provides reliable and secure power transmission even for outdoor installations.

• Compatibility: Suitable for 1/4" flat tab terminals, this connector is ideal for various applications where reliable power connectivity is essential.

• Breaking Capacity (CBC): Breaking capacity allows you to safely connect or disconnect the connector, even under load.

Upgrade to the Neutrik NAC3PX-TOP powerCON TRUE1 panel mount for a solid and durable power connection. Enjoy the benefits of a lockable connector suitable for various applications and environments.

Technical Information:

Product:

• Title: NAC3PX-TOP

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Resistance: > 1 GΩ (after vapour heat test IEC 68-2-30)
• Number of Electrical Contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 498: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size (mm²): 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: 2 µm Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

Environmental:

• Flammability: UL 94 V-0
• Protection Class: IP65 in combination with Sealing cap (mated or with closed cap)
• Temperature Range: -30 °C to +80 °C

Upgrade your power connections today with Neutrik NAC3PX-TOP powerCON TRUE1 panel mount for reliable and safe power transmission even in demanding environments.
