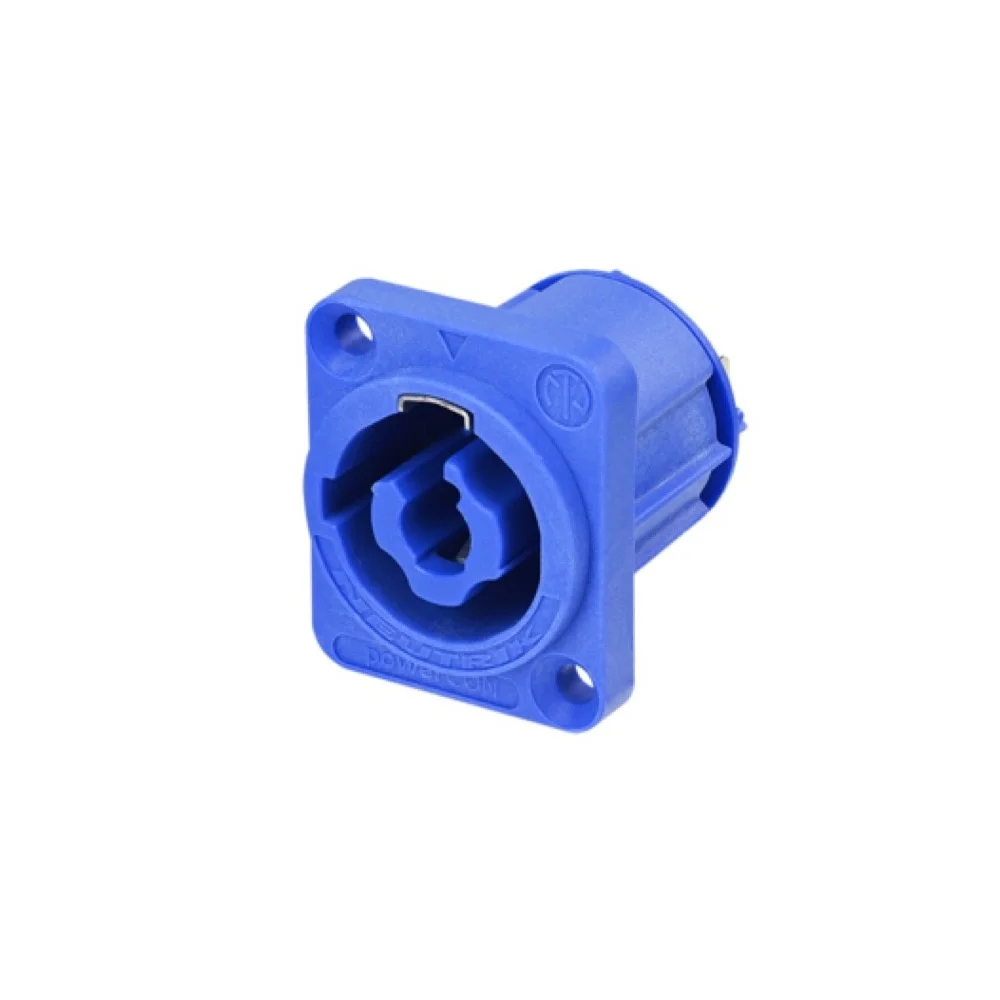

Secure Power Connection with Neutrik NAC3MPXXA-WOT powerCON 20A Connector

The Neutrik NAC3MPXXA-WOT powerCON 20A panel mount connector provides a reliable and safe power connection. With blue PCB, breaking capacity (CBC) and component certification according to IEC 60320-1, this connector fully complies with the IEC 62368-1 standard.

Features and Benefits:

• IEC 62368-1 Compliance: Fully compliant with the IEC 62368-1 standard, thanks to component certification according to IEC 60320-1. Rely on this connector for safe performance.

• Robust Power Connection: Designed as a locking power connector, the powerCON XX replaces device connectors where a highly reliable locking solution is needed for a secure power connection.

• Safety in Motion: The connector with breaking capacity (CBC) allows connection and disconnection under load or live, providing additional safety in dynamic conditions.

• High Performance: With a contact resistance of ≤ 2 mΩ, 4 kVdc / 2.8 kVac dielectric strength and > 10 GΩ insulation resistance (initial), this connector offers excellent performance for reliable power supply.

Upgrade your power connections to the next level with the Neutrik NAC3MPXXA-WOT powerCON 20A connector. With its high-quality materials, component certification and breaking capacity, this connector is a smart choice for various applications.

Technical Information:

Product:

• Title: NAC3MPXXA-WOT
• Gender: Male

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Res istance: > 10 GΩ (initial)
• Number of Electrical Contacts: 2 + PE
• Rating Europe:
  • EN 60320-1: 16 A 250 V AC
  • EN 61984: 20 A 250 V AC
• Rating USA:
  • UL 60320-1: 20 A 127 V AC
  • UL 1977: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size: 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Copper Alloy

Environmental:

• Flammability: UL 94 V-0
• Protection Class: IP 20
• Temperature Range: -30 °C to +80 °C
• Solderability (for PCB): Complies with IEC 68-2-20

Upgrade now to the Neutrik NAC3MPXXA-WOT powerCON 20A connector for safe and reliable power connections in various environments. Rely on Neutrik for high-quality connectivity solutions.
