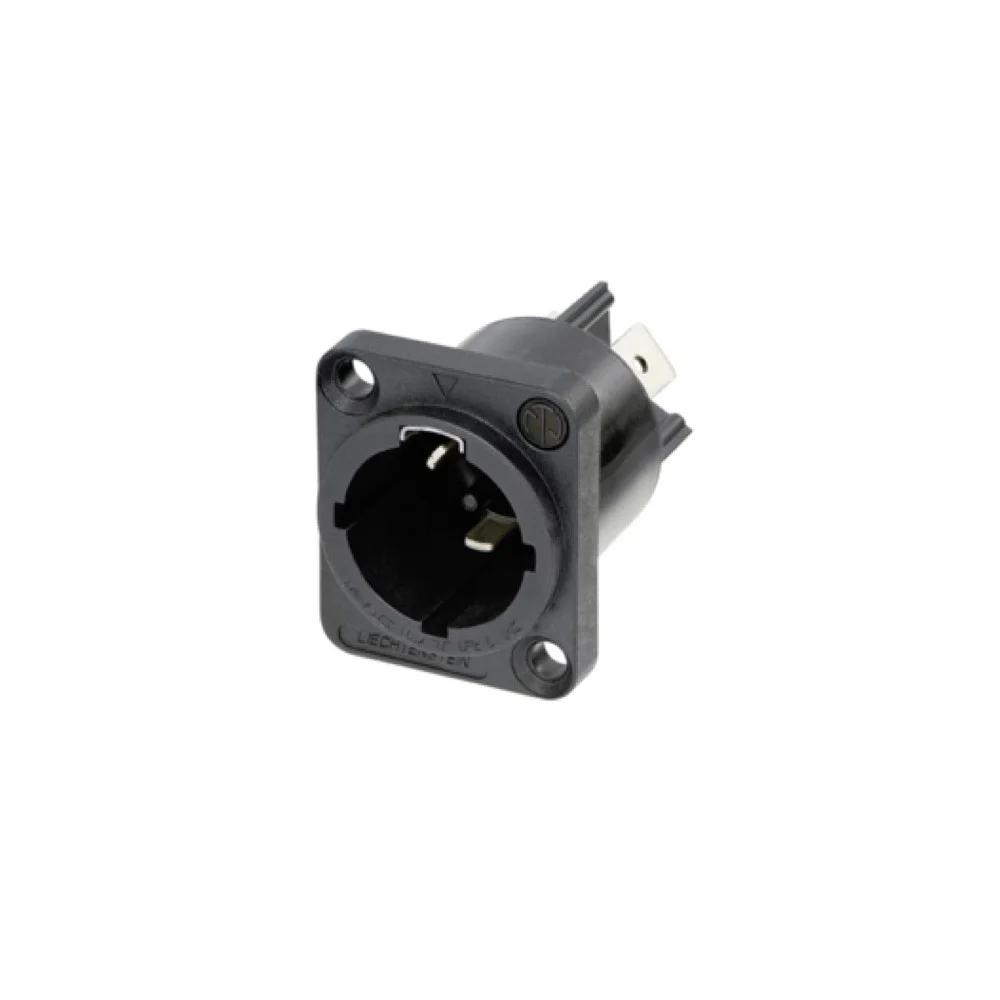

Durable Neutrik NAC3MPX-TOP powerCON TRUE1 Connector for Outdoors

The Neutrik NAC3MPX-TOP powerCON TRUE1 connector provides a robust and secure power connection for outdoor environments. With 2 pin + earth pin tab of 6.3x0.8mm and a D-shaped chassis, this panel-mount connector is ideal for a variety of applications.

Features and Benefits:

• Rugged Outdoor Solution: The powerCON TRUE1 TOP is designed for tough outdoor use situations. It replaces device connectors and provides a sturdy power connection with locking for guaranteed safety.

• Safe Power Connection: Thanks to its breaking capacity (CBC), it is safe to connect and disconnect this connector under load or live, offering flexibility in demanding situations.

• Durable Construction: With more than 5,000 torque cycles, stainless steel locking element and high-quality materials such as Polyamide (PA 6.6) and Spring Copper (CuSn0.2) contacts, this connector is designed to last.

• International Standards: This connector meets both European (EN 60320-1) and US (UL 498) standards for a rated current of 16 A at 250 V AC.

• Safety and Protection: With IP65 protection class and UL50E housing type 4 rating in combination with SCNAC-MPX (paired or with closed cap), the NAC3MPX-TOP provides protection against dust and water.

Upgrade your power connections to a reliable solution with the Neutrik NAC3MPX-TOP powerCON TRUE1 connector. Ideal for outdoor applications with top quality and durability.

Technical Information:

Electrical:

• Contact Resistance: ≤ 2 mΩ
• Dielectric Strength: 4 kVdc / 2.8 kVac
• Insulation Res istance: > 1 GΩ (after vapour heat test)
• Number of Electrical Contacts: 2 + PE
• Rating Europe: EN 60320-1: 16 A 250 V AC
• Rating USA: UL 498: 20 A 250 V AC

Mechanical:

• Lifetime: > 5000 mating cycles
• Wire Size: 2.5 mm² (equivalent to 12 AWG)

Material:

• Contact Plating: 2 µm Silver (Ag)
• Locking Element: Stainless Steel
• Shell: Polyamide (PA 6.6)
• Contacts: Spring Copper (CuSn0.2)

Environmental:

• Flammability: UL 94 V-0
• Protection Class: IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap).
• Temperature Range: -30 °C to +80 °C

Upgrade now to the Neutrik NAC3MPX-TOP powerCON TRUE1 connector for reliable power connections in outdoor environments. Rely on Neutrik's durability and quality.
