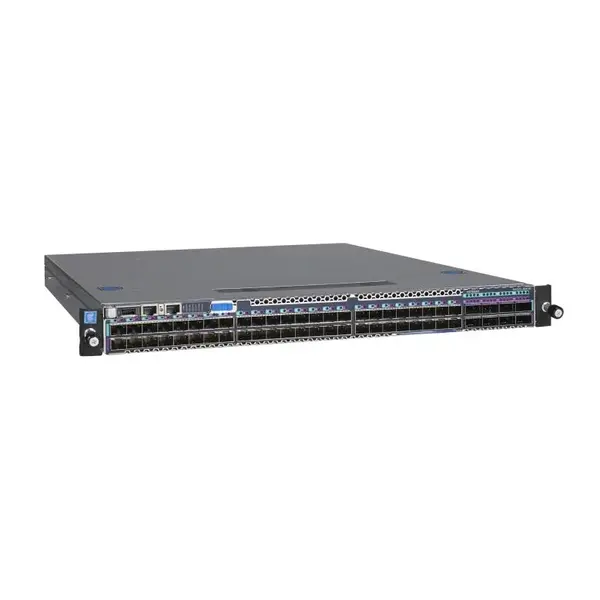

Netgear | XSM4556 | 56-port AV network switch | 48x 10G/25G SFP28 | 8x 100G QSFP28 | Managed Switch

Artikelcode XSM4556-100EUS

Delivery time on request

Model description: M4500 managed switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports
Noise generation: 68.0dB @ 25°C (77°F) - noise is reduced when the two PSUs are connected to a power source
Power consumption (max): 394 watts
25G SFP28 ports: 48 SFP28 ports (1x10G standard mode, other modes can be 1x25G and 1x10G)
100G QSFP28 ports: 8 QSFP28 ports (1x100G standard mode, other modes can be 1x50G, 1x40G)

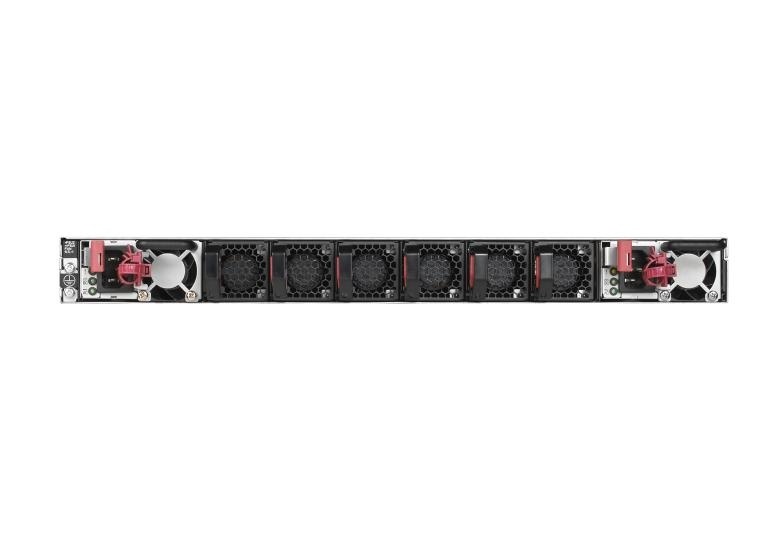

PSU and fans: 2 modular power supply units and 6 modular fan trays are pre-installed
Management: CLI only (local console, telnet port 1223 and SSH port 1234)
Management ports: 1G Ethernet service port for out-of-band management (OOB, RJ45)
RS232 straight-through serial RJ45 for local management console
Form factor: Full-width 1U (508mm depth) with two mounting ears (front) and rail kits (rear)
