JB-Lighting | VSP501 | P5 HP | Beamspot LED Moving Head | 200W | 9000lm | CMY | 29dB-A | 18 gobos | 2.5° – 50° | 10.7kg | CRI ≥74 - Copy

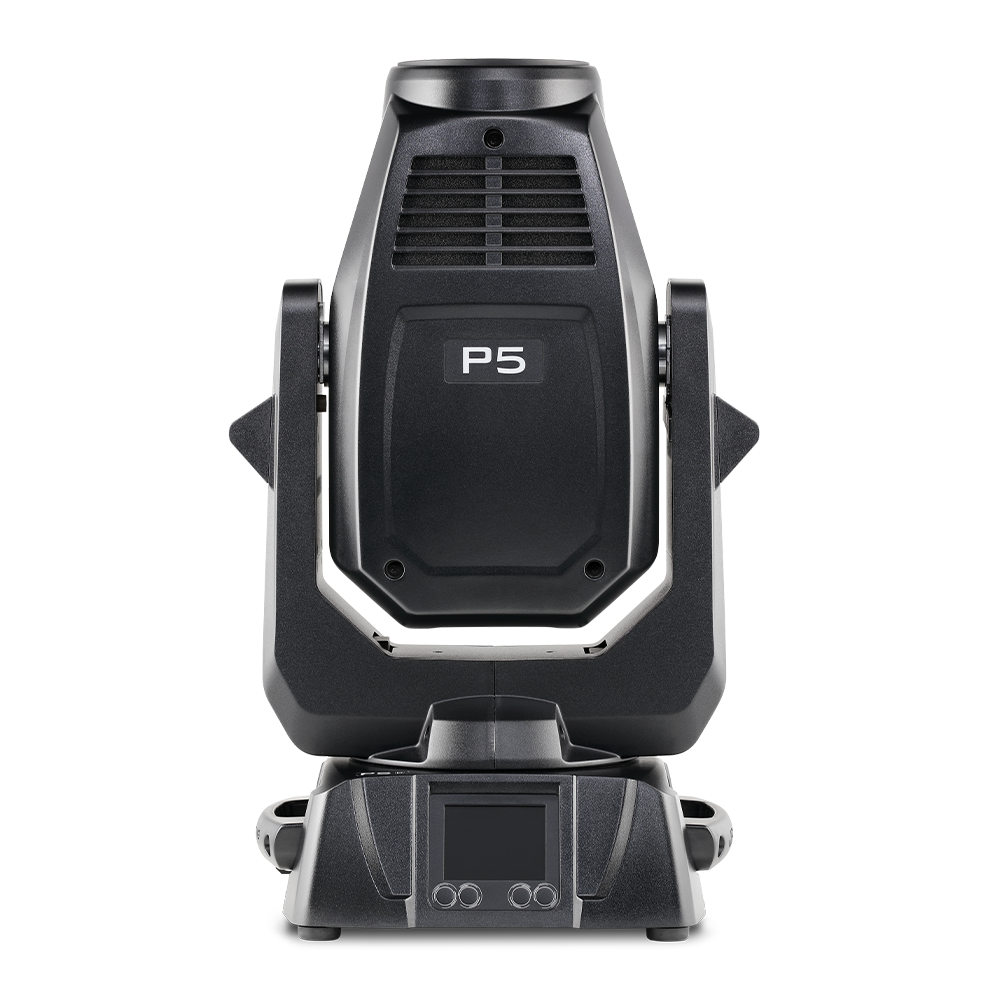

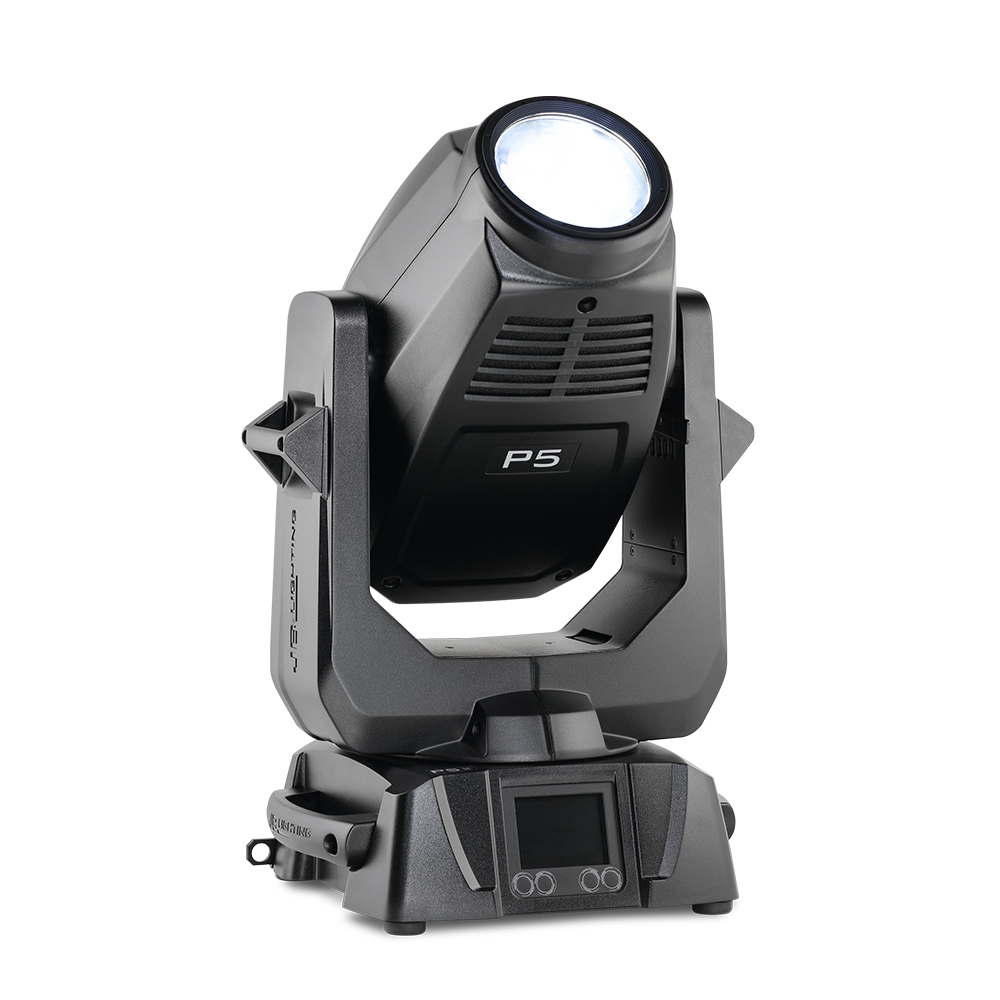

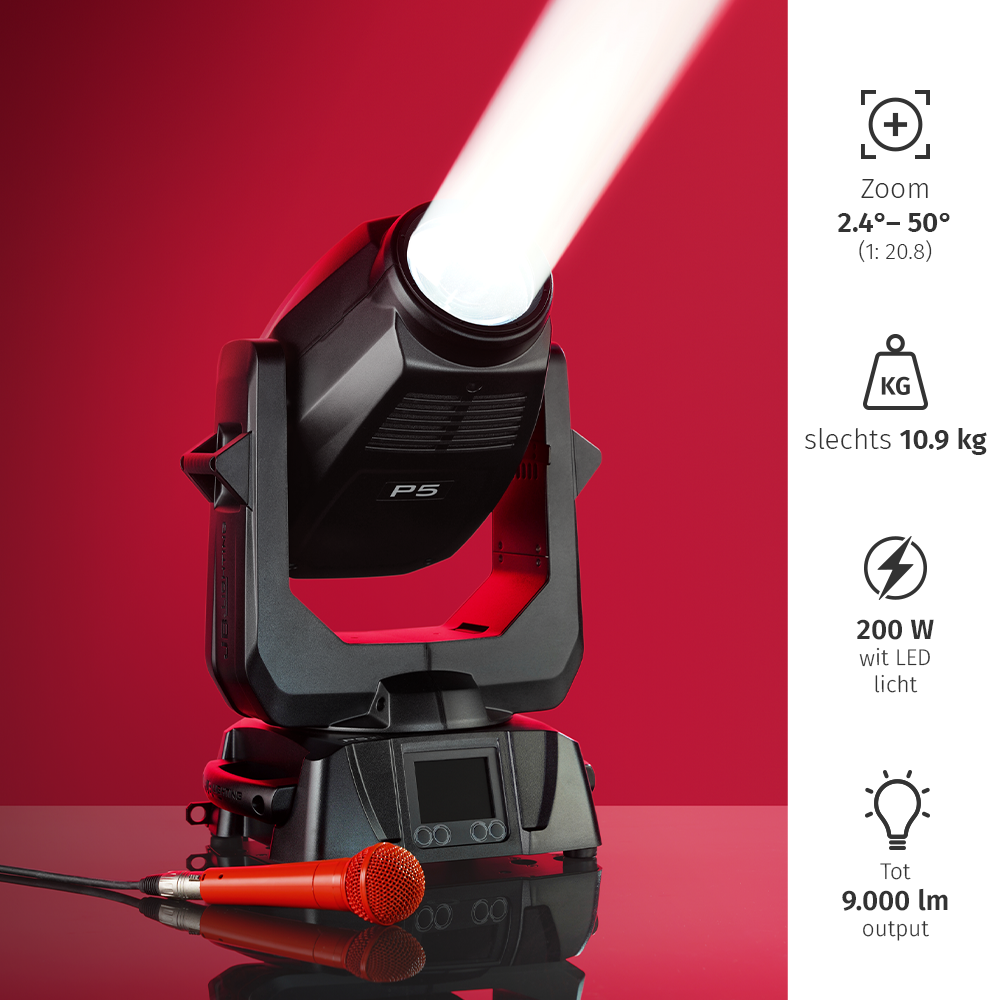

The compact all-rounder: the JB-Lighting P5 Beamspot

The JB-Lighting P5 Beamspot is unique in every respect. This professional LED moving head is the smallest, lightest and most powerful beamspot in its performance class. Weighing just 10.9 kg and delivering an output of up to 9,000 lumens, this 200 W moving head offers impressive performance in an extremely compact housing. Thanks to its zoom range of 2.4° to 50° and whisper-quiet operation of up to 29 dB(A), the P5 Beamspot is designed for demanding show applications where flexibility, light quality and noise reduction are essential.

For lighting designers, hire companies and theatres looking for a powerful yet compact moving head spotlight, the JB-Lighting P5 Beamspot offers an optimal combination of size, power and creative possibilities.

Impressive light quality and flexibility

The P5 Beamspot is equipped with a 200 W high-power LED module. The light source delivers 13,000 lumens, of which 9,000 lumens are effective output with a CRI of 74 (+/- 3) at a colour temperature of 6800 K. This makes this LED moving head a powerful and bright beam for professional stage lighting.

For applications requiring higher colour fidelity, the P5 features a High CRI filter with a CRI of 90 (+/- 3). In addition, CTO and CTB filters are integrated for additional colour correction. The virtual CTC adjustment enables a colour temperature range from 2000 K to 13000 K, allowing the fixture to be easily adapted to a wide variety of lighting situations.

The CMY colour mixing ensures fast and perfectly homogeneous colour blending. This is supported by a colour wheel with 8 full or half colours, including a UV filter. The combination of CMY, colour wheel and correction filters provides a wide variety of colour combinations and smooth transitions, making this beamspot not only powerful but also exceptionally versatile.

Versatile effects for creative applications

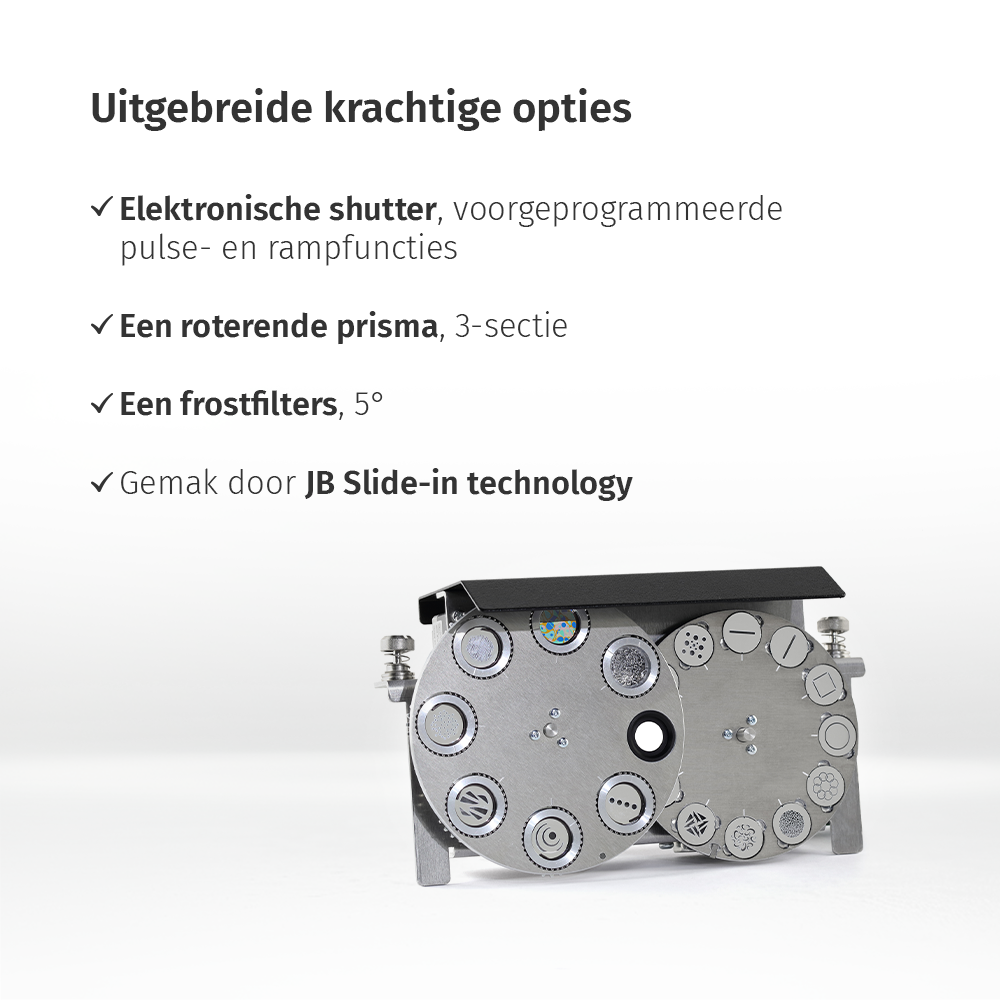

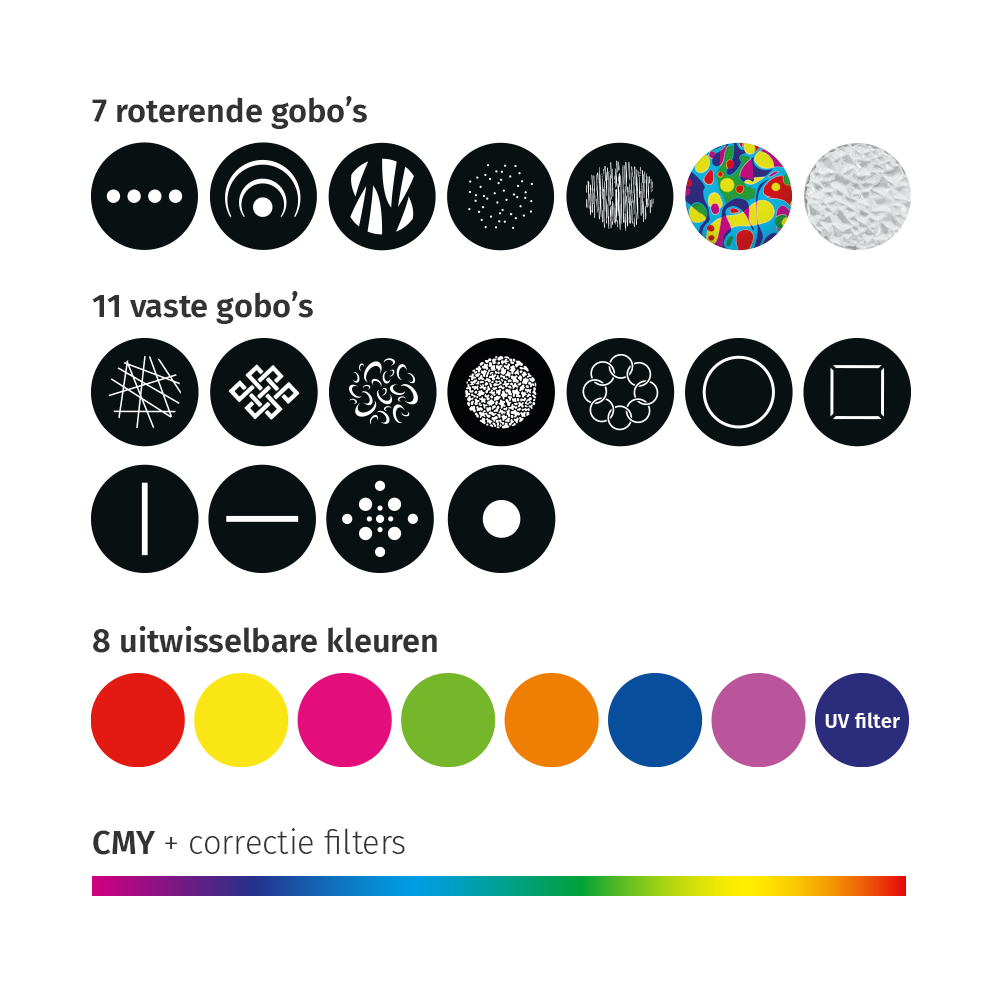

Creative freedom is at the heart of the JB-Lighting P5 Beamspot. This moving head features two gobo wheels:

• 1 gobo wheel with 11 static gobos including a beam reducer gobo
• 1 gobo wheel with 7 rotatable, positionable and interchangeable gobos, including one art glass gobo and one multicolour gobo

With this extensive gobo configuration, sharp projections, textures and powerful beam effects can be easily achieved.

In addition, the P5 is equipped with a 3-section circular prism and a 5° frost filter. Other frost levels of 1°, 2°, 3.5°, 10° and 20° are available as options. This allows the fixture to produce both tight beams and more subtle lighting patterns.

The electronic dimmer operates from 0% to 100% with three selectable dimming curves. The electronic shutter features pre-programmed pulse and ramp functions. Thanks to the 3-phase extra-strong stepper motors, pan and tilt movements with a maximum of 541° pan and 281° tilt are smooth, fast and precise.

Durability and ease of use

Despite its performance, the JB-Lighting P5 Beamspot is extremely quiet. The high-tech heat pipe cooling, combined with calibrated fans, ensures a maximum noise level of just 29 dB(A). This makes this LED moving head suitable for theatres, TV studios and other noise-sensitive environments.

The LED module has a lifespan of over 20,000 hours and operates completely flicker-free. Camera modes of 100, 120 and 600 Hz (Flex mode) as well as a high flex mode (3 kHz) make the P5 suitable for film and television productions.

In terms of control, the P5 supports DMX 512 with RDM as well as ArtNet and sACN via Ethernet. Wireless DMX and RDM via Lumen Radio CRMX TiMo are integrated as standard. The 180° rotatable text on the LCD display, featuring function keys and a battery buffer, offers comprehensive analysis functions.

The robust construction with four carrying handles and original JB-Lighting slide-in module technology guarantees ease of use in all conditions. ‘Made in Germany’ stands for high-quality workmanship and durable quality.

Pros and cons

Pros:

Extremely compact and lightweight at just 10.9 kg
High light output of up to 9,000 lumens
Very wide zoom range from 2.4° to 50°
Extensive effects section with two gobo wheels, prism and frost
CMY colour mixing plus High CRI, CTO and CTB
correction filters
Whisper-quiet at a maximum of 29 dB(A)
Flicker-free operation with various camera modes

Cons:

Standard CRI 74 plus or minus 3 without High CRI filter
Maximum power consumption 350 VA
Other frost levels only available as an option

Summary of specifications

• Light source: 200 W white light LED 6800 K
• Light output: 13,000 lumens, of which 9,000 lumens are output
• CRI: 74 (+/- 3) standard and 90 (+/- 3) with High CRI filter
• Zoom: 2.4° to 50°
• Colours: CMY mixing, 8 colours including UV, High CRI, CTO and CTB
• Gobos: 11 static and 7 rotating
• Effects: 3-section prism and 5° frost filter
• Movement: 541° pan and 281° tilt
• Noise level: maximum 29 dB(A)
• Weight: 10.9 kg

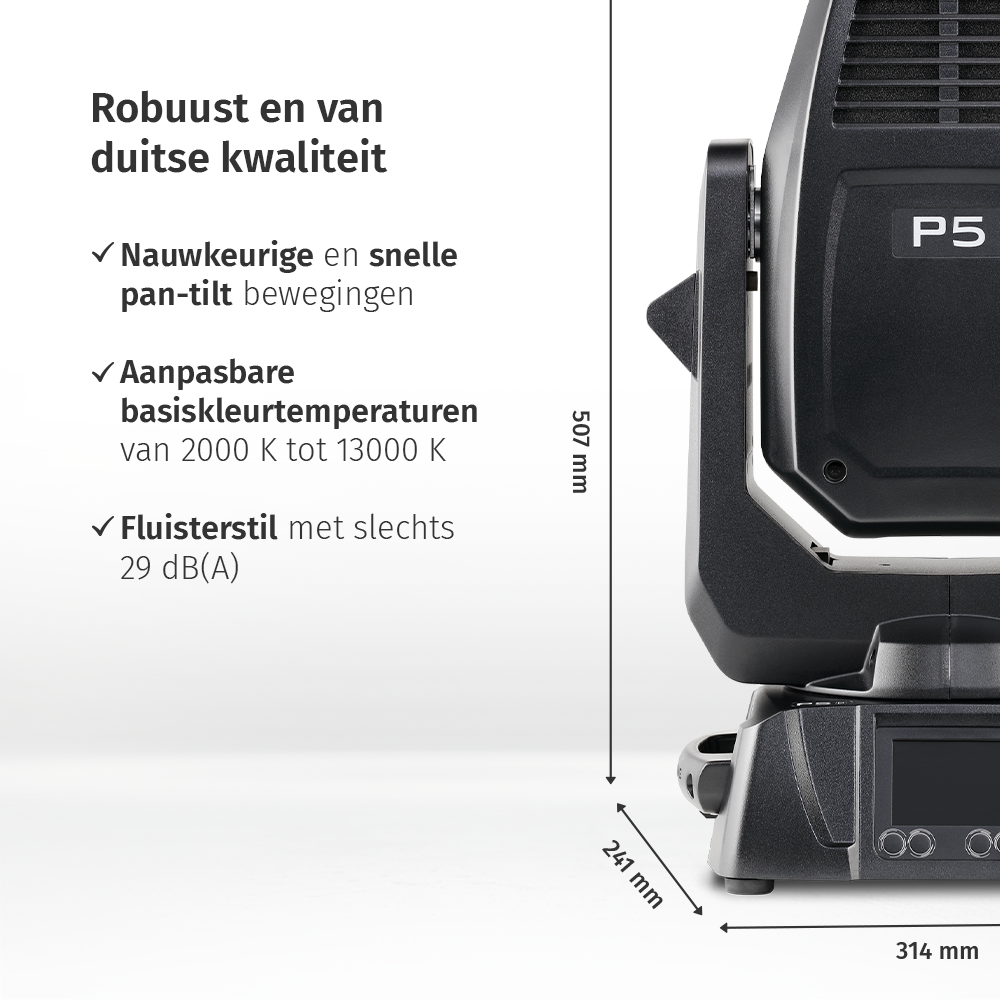

• Dimensions: 398 x 609 x 264 mm (W x H x D)
• Control: DMX 512, RDM, Art Net, sACN and Wireless DMX
• Made in Germany

Compact. Powerful. Brilliant. Ready for any production.

The JB-Lighting P5 Beamspot combines an ultra-compact size of 398 x 609 x 264 mm with a weight of just 10.9 kg. Despite its compact build, this professional LED moving head delivers an impressive output of up to 9,000 lumens. The wide zoom range from 2.4° to 50° gives lighting designers maximum creative freedom. Thanks to its extensive effects section featuring CMY colour mixing, gobo wheels, prism and adjustable frost, the P5 Beamspot is suitable for theatres, events and TV productions. Whisper-quiet, flexible and professionally built, this fixture offers a powerful all-round solution for productions where performance and reliability are key.

Curious about the compact JB-Lighting P5 BeamSpot? Request a free, no-obligation demo via [email protected] or use the contact form on our website!
