JB-Lighting | P9 HP | Beamspot LED Moving Head | 330W | 15,000 lm | CMY | 29 dB(A) | 18 gobos | 3.4° – 54° | 17 kg | CRI ≥70

The compact powerhouse: the JB-Lighting P9 BeamSpot

The P9 BeamSpot from JB-Lighting combines power, speed and precision in a compact housing weighing just 17 kg. With an output of 15,000 lumens, a 330 W white LED source and an impressive zoom range of 3.4° to 54°, this spotlight delivers top-class performance. The P9 is designed to shine as both front and backlighting for events, concerts, TV productions and theatre performances. Its robust construction, versatile effects and ultra-quiet operation make the P9 an indispensable asset on any production.

Impressive light quality and flexibility

Thanks to its 330 W High Power LED module, the P9 BeamSpot delivers a brilliant light output of 15,000 lumens at 6800 K, with a CRI of ≥70. For applications where colour accuracy is essential, the High CRI filter can be used, achieving a colour temperature of 5800 K and a CRI of ≥90. Thanks to the linear CTO, it is possible to further adjust the colour temperature to a warm 3200 K, ideal for TV and theatre. The combination of CMY colour mixing, a seven-colour wheel, High CRI filter, CTB filter and linear CTO provides an infinite variety of beautiful colour combinations and smooth transitions.

Versatile effects for creative applications

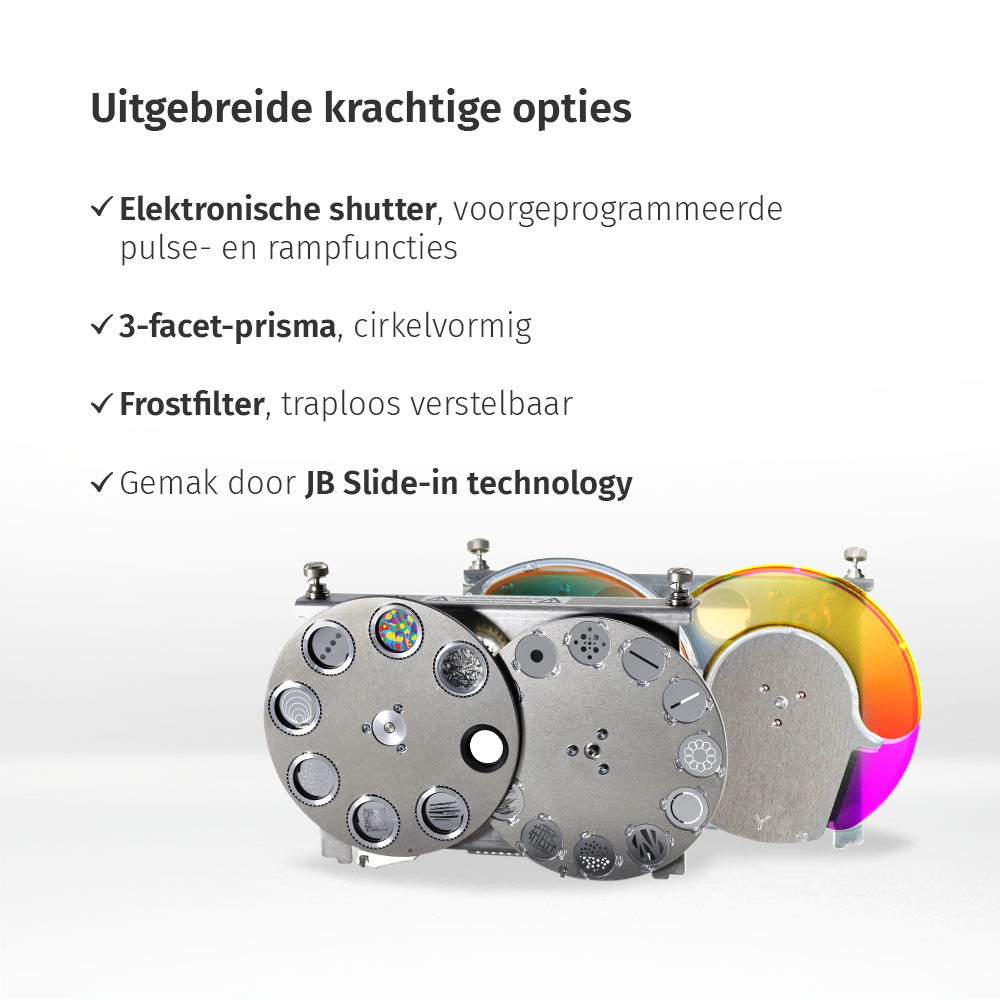

With two gobo wheels (7 rotating and 11 static gobos), a 3-section circular prism and an adjustable frost filter, the P9 offers countless effects for dynamic shows. Thanks to the high precision and speed of the 3-phase stepper motors, the pan and tilt movements are exceptionally smooth and fast. The electronic dimmer, fast iris and programmable shutter effects give designers the freedom to precisely create any desired lighting effect, from powerful beams to soft wash-like effects.

Durability and ease of use

JB-Lighting’s patented Slide-In technology makes changing gobos and cleaning the unit particularly easy and tool-free. The robust housing and pan/tilt transport lock ensure that the P9 withstands even the toughest tours with ease. The fan control also guarantees whisper-quiet operation at just 29 dB(A), making the spotlight suitable for theatre and television applications.

Pros and cons

Pros:
Extremely compact and lightweight construction, weighing just 17 kg
Very wide zoom range from 3.4° to 54°
Extensive colour correction options with CMY, CTO and CTB filters
Easy maintenance thanks to Slide-In technology
Whisper-quiet operation, ideal for noise-sensitive environments
High light output and excellent colour rendering

Cons:
Due to its compact size, heat build-up may be increased
during intensive use
Limited frost options included as standard (other grades available only as optional extras)
No built-in blade set for precise beam shaping

Smart colour corrections and filters

The P9 features a unique CTB filter, which automatically corrects gobo colour shifts without loss of brightness. This makes the spotlight ideal for situations where perfectly balanced projections are required. The High CRI filter also ensures excellent skin tones and natural colour rendering on stage and on camera.

Unlimited creative possibilities with gobos and prisms

With an extensive range of static and rotating gobos, spectacular projections can be created, from sharp beams to soft textures. The circular prism can be rotated continuously and combined with frost effects for even greater creative freedom, or for subtle atmospheric effects in a quiet scene.

Summary of specifications

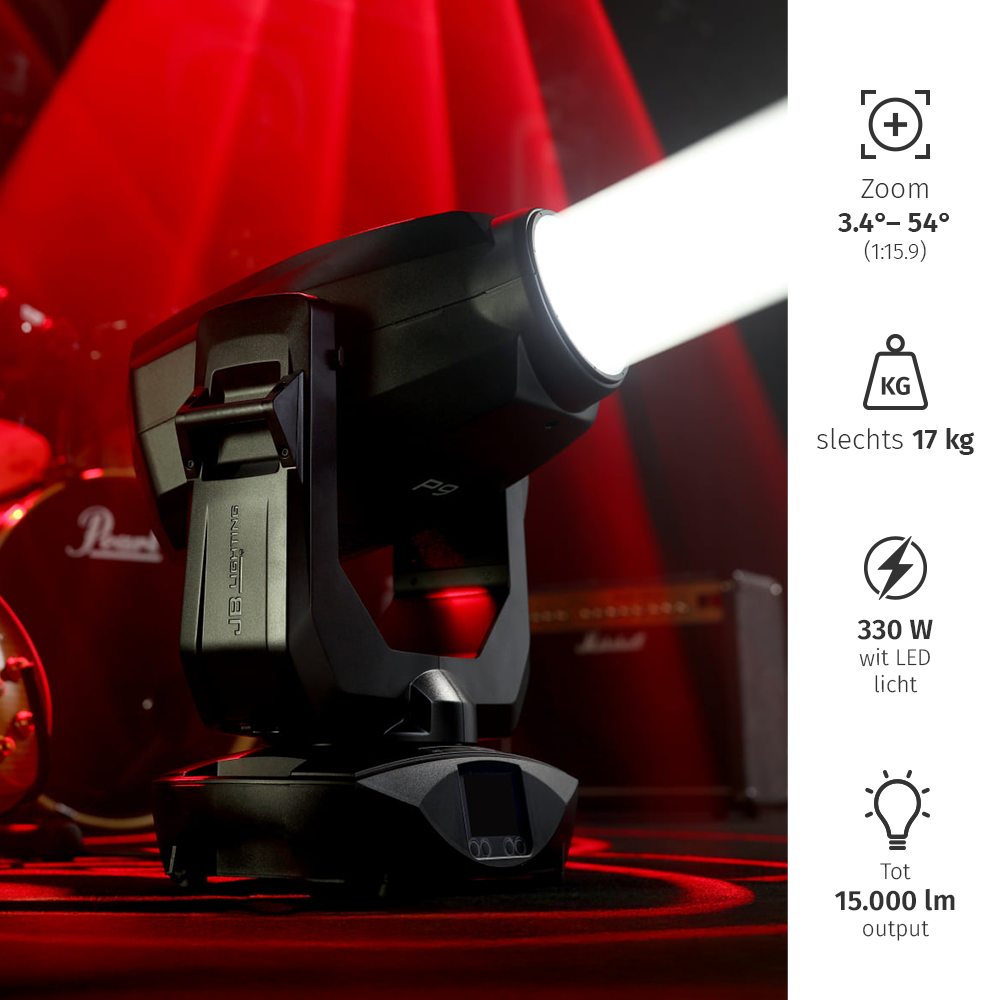

• Light source: 330 W white LED, 6800 K, 15,000 lumen output
• CRI: ≥70 standard, ≥90 with High CRI filter
• Zoom: 3.4°–54° (1:15.9)
• Colours: CMY mixing, 7 colours on colour wheel, linear CTO

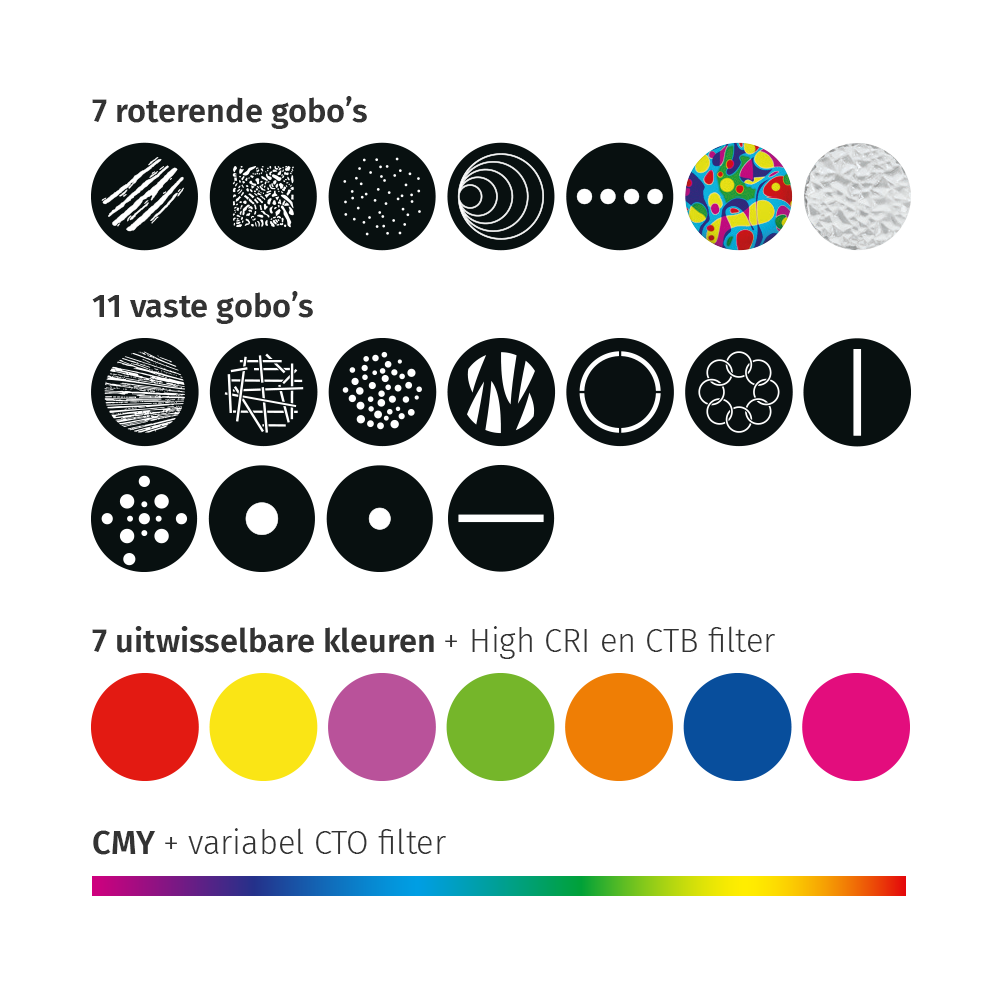

• Gobos: 1 wheel with 11 static, 1 wheel with 7 rotating gobos
• Effects: 3-section prism, adjustable frost filter, sparkle effect
• Weight: 17 kg
• Noise level: Just 29 dB(A)
• DMX, Art-Net, sACN and wireless DMX via CRMX

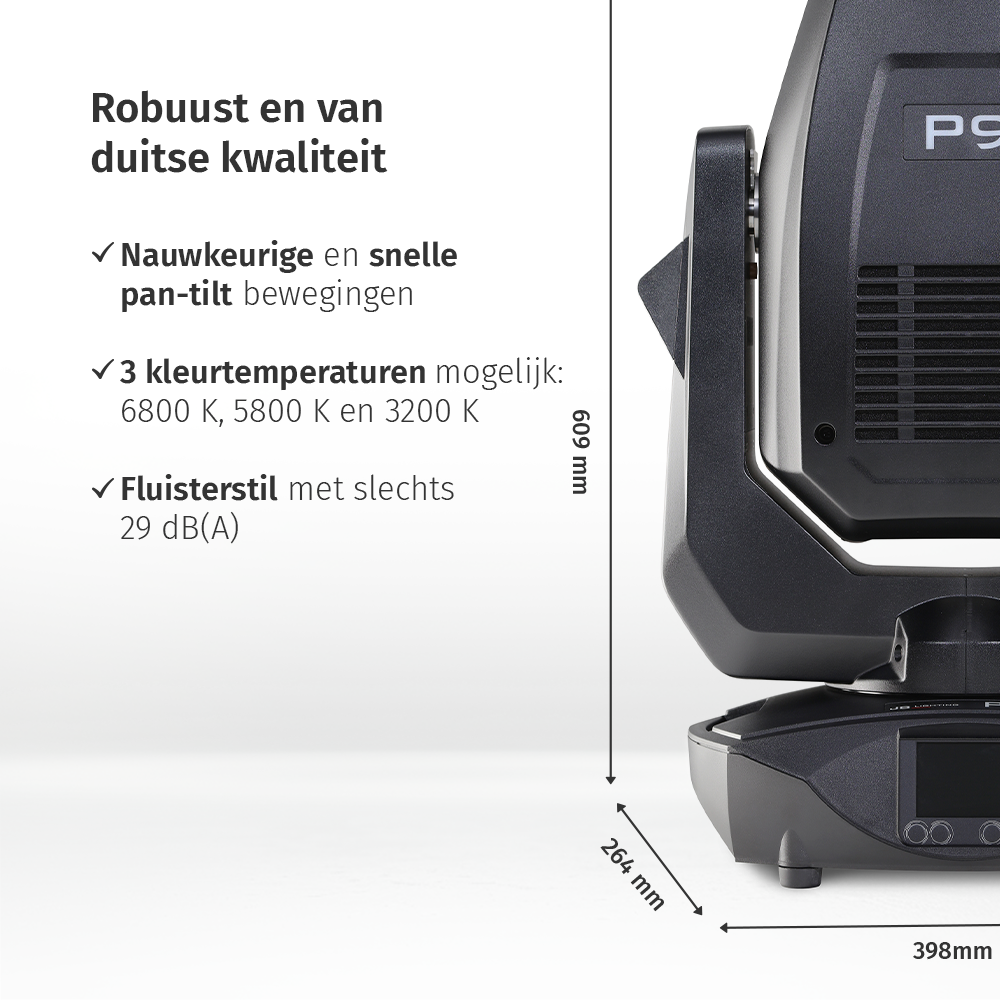

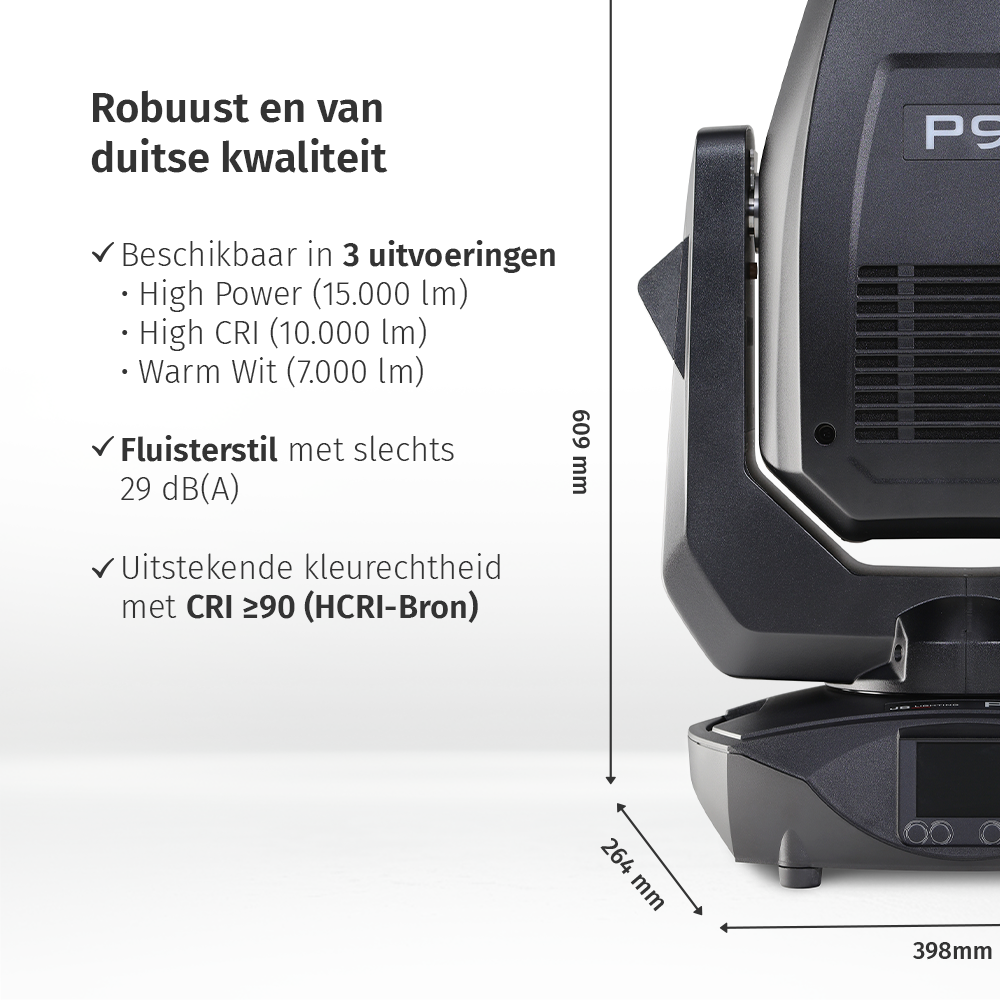

• Dimensions: 398 x 609 x 264 mm (W x H x D)
• Made in Germany

Applications

• Festivals and concerts: Thanks to its high light output and dynamic effects, it is ideal for outdoor and large-scale events.
• Television productions: Whisper-quiet operation and flicker-free modes make the P9 perfect for HD and 4K recordings.
• Theatre performances: The High CRI filter ensures colours and skin tones are natural and realistic, essential for stage productions.
• Corporate events and trade fairs: Compact, reliable and easy to install thanks to Slide-In technology and lightweight construction.

Conclusion

The JB-Lighting P9 BeamSpot proves that greatness does not always have to go hand in hand with size. With its impressive light output, flexible zoom, versatile effects and advanced colour correction capabilities, the P9 offers everything lighting designers need in a compact and reliable housing. Whether for large-scale festivals, theatre productions or high-end television recordings: the P9 is a true all-rounder that feels at home in any environment and always puts on a brilliant show.
