JB-Lighting | P7 | LED Moving Head Spotlight | 270W | High-power LED light source

JB-Lighting | P7 | LED Moving Head Spot | 270W | High-Power LED Source|

LED! These three letters have not only transformed the world of lighting, they also represent the light source of JB-Lighting’s P7 moving head spotlight.

With an incredibly low power consumption of 270 watts, the P7 moving head delivers the brightness of a 700-watt gas discharge lamp. This moving head owes this to its enormous light output and, in particular, to its excellent optical properties and high-tech cooling.

The LED light source maintains the colour temperature at a constant level throughout its 20,000-hour lifespan. The unwanted drift towards green is therefore a thing of the past.

The P7 offers a complete range of effects. Starting with the impressive optical zoom system with a range of 8°–48°. The effects unit consists of a CMY colour mixer and all the effects you need to create stunning shows. The stylish design and user-friendly operation make the P7 just as revolutionary as JB-Lighting’s LED wash lights.

The P7 is perfect for anyone planning to retire their outdated 700–800 watt spotlights.

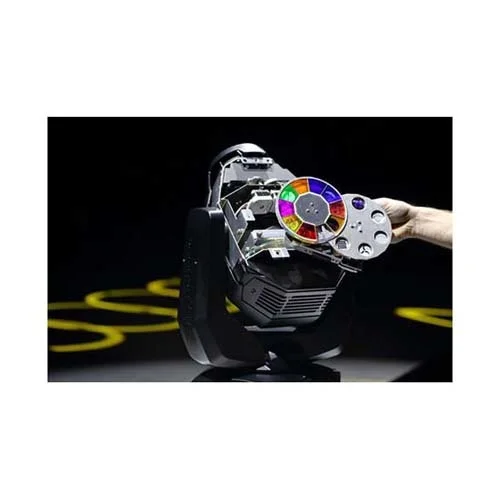

BRILLIANT COLOURS

The P7 features a colour wheel with 8 brilliant colours and a CTO filter. This offers linear colour selection and even a rainbow effect.

CMY COLOUR MIXER

A CMY colour mixer also offers almost countless colour variations.

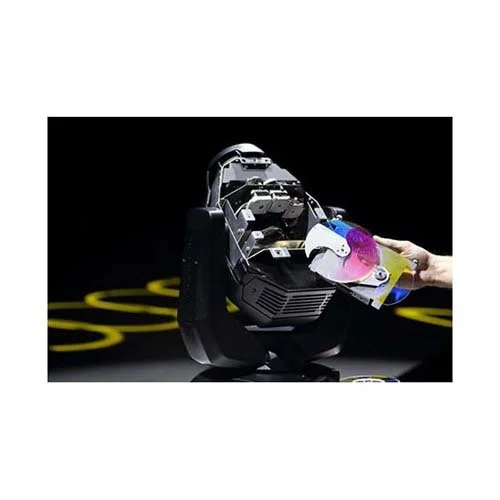

GOBOS

The P7 has two gobo wheels: one with nine fixed, interchangeable gobos and a second with six rotating, positionable and interchangeable gobos, making it ideally equipped for morphing and projection applications.

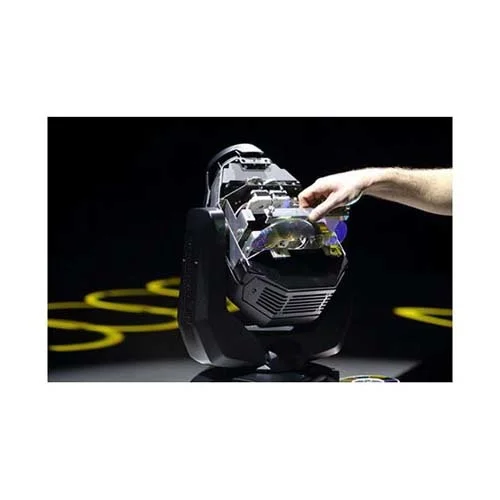

SLIDE-IN MODULES

Maintenance, cleaning and gobo replacement can be carried out quickly and easily thanks to the modular system. Modules can be removed without tools or manually disconnecting cables.

APERTURE FOR GREATER DEPTH OF FIELD

For logo projection, the P7 features a special diaphragm that offers greater depth of field.

PRISM

The P7 features a 3-facet prism that can be optimally combined with the gobos. Thanks to its extremely fast rotation, impressive, almost motionless images can be generated! Furthermore, the prism can be indexed and is perfect for projection applications.

FROST AND SPARKLE EFFECTS

Frost and sparkle effects complete the P7’s range of effects, making it a versatile lighting tool for a wide variety of applications.

ZOOM & FOCUS

The P7 has a zoom range of 8° to 48° and is, of course, focusable.

• 270W white light LED engine
• CMY colour mixing
• colour wheel – 9 colours
• 2 gobo wheels
• 1 prism
• frost effect
• special aperture diaphragm for logo projection,
• dimmer
• shutter
• iris
• focus
• zoom 8°–48°
• CTO filter
• onboard wireless DMX
• slide-in modules
• weight 17kg
