JB-Lighting | P4 | Beamspot Moving Head | 280W

JB-Lighting | P4 HP | Beamspot Moving Head | 280W |

The light source of the Varyscan P4 moving head is a 280-watt gas-discharge lamp that produces a breathtakingly concentrated beam of light. This makes it exceptionally impressive, even at long distances, despite its low wattage.

The optical system features a special lens that distributes the light beam uniformly across the entire area during projection, enabling both bright and homogeneous projections. The effect unit is equipped with two gobo wheels, two prisms, zoom and focus, frost, shutter and dimmer, 10 colours, CTO and CTB filters, a UV effect and extremely fast and precise pan and tilt movements. The P4 uses slide-in modules, so maintenance work and gobo replacement can be carried out quickly and easily. It comes with JB-Lighting’s radio-controlled DMX system on board, enabling a perfect, wireless combination with the latest moving lights from JB-Lighting.

BRILLIANT COLOURS

The P4 features a colour wheel with 10 brilliant colours and linear colour selection. This also offers a rainbow effect. Also available are a CTB and CTO filter and a UV filter for blacklight applications.

GOBO’S

The P4 features 2 gobo wheels: one with 10 fixed gobos and 4 beam reducers, and the second with 9 rotating, variably positionable and interchangeable gobos, making it ideally equipped for beam and spotlight shows.

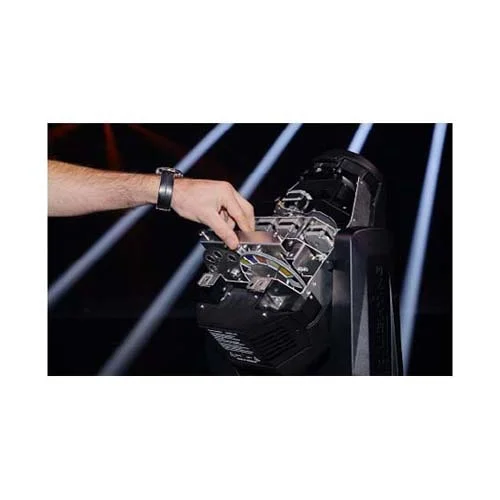

SLIDE-IN MODULE

Maintenance, cleaning and gobo replacement can be carried out quickly and easily thanks to a slide-in module that can be removed without tools or manually disconnecting cables.

VARIABLE BEAM CHARACTERISTICS

The P4 offers two different optical components for different beam characteristics. A diffusion filter makes the light output completely even and enables uniform beams and projections. In addition, a specially designed lens doubles the light output compared to a diffusion filter, with only very slight irregularities.

PRISMS

The P4 offers 2 different prisms that fit perfectly with the 2 gobo wheels. The prisms are indexable and ideal for projection or beam shows.

ZOOM, FOCUS AND FROST FILTER

The P4 has a zoom range of 2.3° to 9.5° in beam mode and 5° to 21.6° in spot mode; naturally with focus. The frost effect is variably adjustable from 0% to 100%.

• 2 gobo wheels
• 2 prisms
• frost effect
• dimmer, shutter, zoom, focus
• colour wheel
• CTO, CTB and UV filter
• slide-in module
• onboard wireless DMX
• weight 16.5 kg
