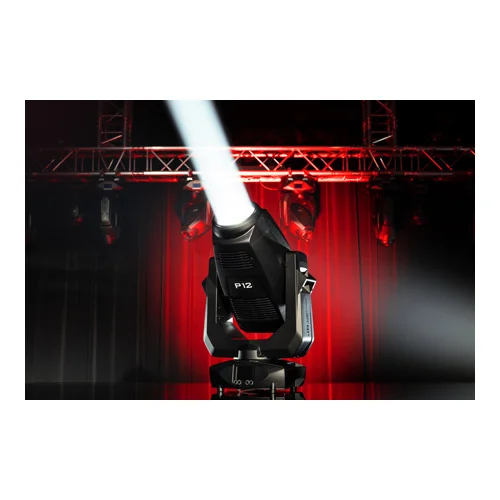

The quiet powerhouse: the JB-Lighting P12 Wash

The P12 Wash from JB-Lighting is a compact, extremely powerful LED wash light with an impressive output of 25,000 lumens. Thanks to its Fresnel lens, a zoom range of 11° to 66°, an integrated set of blades and exceptionally quiet operation (just 29 dB(A)), this fixture is perfectly suited to both large-scale shows and sound-sensitive environments such as theatre and television. Weighing just 23 kg, this lightweight all-rounder is also easy to handle and install. The P12 Wash is designed for professionals who demand maximum flexibility and quality.

Powerful light output and optional colour variants

The P12 Wash is available in three variants: High Power (HP) for maximum light output, High CRI (HC) for optimal colour rendering and Warm White (WW) for a halogen-like appearance. All versions use the same 640 W white LED module with a lifespan of over 20,000 hours. The HP version delivers 25,000 lumens at 6800 K (CRI ≥70), the HC version 19,000 lumens at 5800 K (CRI ≥90) and the WW version 15,000 lumens at 3200 K (CRI ≥91). Thanks to the linear CTO or CTB filters, you can further tailor the colour temperature to your lighting design.

Full control thanks to the rotatable blade set

The built-in blade set allows you to precisely shape and frame the light beam. Each of the four blades is individually adjustable in position and angle and can close completely for a ‘total curtain’ effect. Furthermore, the entire module can be rotated by ±55° (total 110°), allowing you to perfectly align the cut-off, regardless of the fixture’s orientation. This feature, combined with frost filters and the Fresnel lens, offers unprecedented flexibility for subtle to expressive lighting.

Creative effects for modern lighting designs

The JB-Lighting P12 Wash features a gobo wheel with six specially designed gobos for wash applications. There are also two colour wheels: one with seven colours including High CRI or CTB/CTO filters, and one with seven colour correction filters including a deep red and UV filter. Effects have also been taken into account: two continuously adjustable frost filters (soft edge and flood frost), a fast electronic shutter with pulse and ramp functions, a high-speed iris, sparkle effect and autofocus. The fixture is also completely flicker-free in camera modes up to 3 kHz.

Pros and cons

Pros:
Powerful 640 W LED with an output of up to 25,000 lumens;
Equipped as standard with a Fresnel lens for soft, even light distribution;
Built-in blade set with 110° rotation for precise framing;
Two colour wheels and CMY mixing for extensive colour effects;
Exceptionally quiet (29 dB(A)), suitable for theatre and TV;
Compact and lightweight (only 23 kg), easy to handle.

Cons:
Less suitable for sharp projections due to the focus on wash effects;
Not equipped with an animation wheel or double prisms as standard;
Warm White version has lower light output than the HP variant.

User-friendly and maintenance-friendly design

Thanks to JB Slide-In technology, all components, such as gobos and filters, can be replaced or cleaned without tools and without disconnecting cables. The robust design and transport lock ensure trouble-free use on tour, in the theatre or at trade fairs. Operation is intuitive via an electronically rotatable LCD display, and the fixture supports DMX, Art-Net, sACN, wireless DMX via CRMX and even Bluetooth and Wi-Fi.

Versatile lighting solution with professional capabilities

The P12 Wash is suitable for a variety of applications where intensity, flexibility and reliability are key. The wide zoom range of 11° to 66° allows for both concentrated beams and wide washes. Combined with the extensive colour and effects spectrum, you can effortlessly adapt to different styles, moods and technical requirements, from subtle colour gradients to bold, dramatic transitions.

Specification summary

• Light source: 640 W white LED
• Light output: up to 25,000 lumens (depending on variant)
• CRI: ≥70 (HP), ≥90 (HC), ≥91 (WW)
• Zoom: 11°–66° (1:6)
• Lens: Fresnel for soft light distribution
• Framing module: 4 blades, individually adjustable, rotatable through 110°
• Colours: 2 colour wheels (CMY, 7 colours, 7 correction filters)
• Gobos: 1 wheel with 6 rotating gobos
• Frost: 2 stepless filters (soft edge, flood)
• Iris, shutter, sparkle effect, autofocus
• Noise level: just 29 dB(A)
• Weight: 23 kg
• DMX, Art-Net, sACN, CRMX, Bluetooth, Wi-Fi
• Dimensions: 421 x 264 x 682 mm (W x D x H)
• Made in Germany

Applications

• Theatre
  productions Perfect for stage and dance thanks to its quiet operation and subtle lighting.
• Television studios
  Flicker-free and CRI options make this fixture ideal for HD/4K recordings.
• Live events and concerts
  Powerful output, versatile colour mixing and wide zoom for impressive stage lighting.
• Corporate presentations and trade fairs
  Compact, lightweight and versatile for both accent and flood lighting.

Conclusion

The JB-Lighting P12 Wash is a versatile and professional wash fixture that excels in light quality, control and ease of use. The combination of a Fresnel lens, blade set, powerful output and quiet operation makes it suitable for a wide range of applications, from theatre to large-scale live productions. With the P12 Wash, you are investing in creative freedom, reliability and a stunning lighting experience.
